3. To build and program a PSoC 6 MCU application, in the Project Explorer, select <App_Name>
project. In the Quick Panel, scroll to the Launches section and click the <App_Name> Program
(KitProg3) configuration as shown in

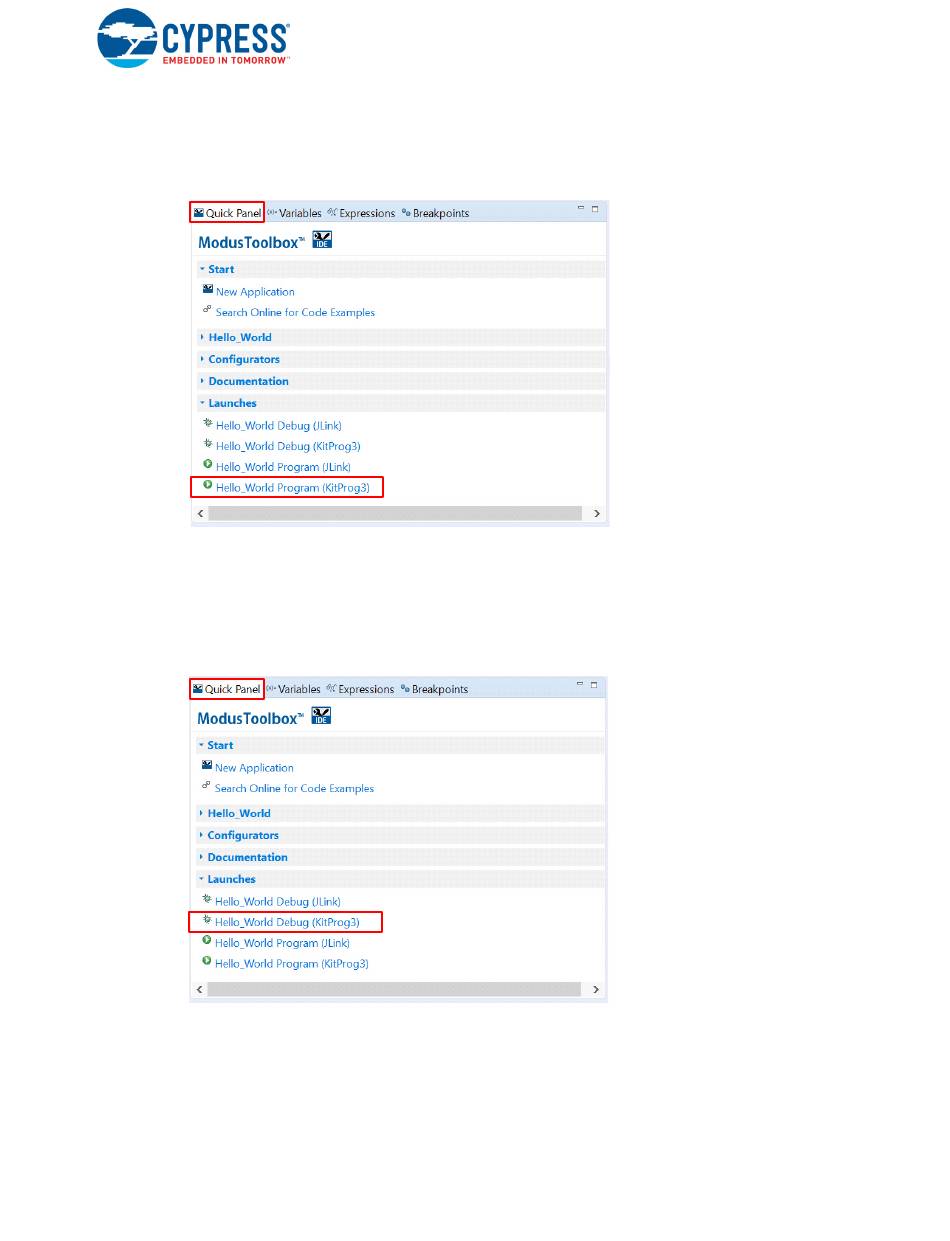

Figure 2-10. Programming in ModusToolbox
4. ModusToolbox has an integrated debugger. To debug a PSoC 6 MCU application, in the Project
Explorer, select <App_Name> project. In the Quick Panel, scroll to the Launches section and
click the <App_Name> Debug (KitProg3) configuration as shown in
Debug operation would perform a build operation followed by program operation and finally the
debug operation.
Figure 2-11. Debugging in ModusToolbox
CY8CPROTO-062S3-4343W PSoC 62S3 Wi-Fi BT Prototyping Kit Guide, Doc. # 002-28070 Rev. *A
Figure 2-10.
Kit Operation
Figure 2-11. Note that
