CapSense Circuit

The board supports a 5-segment CapSense slider and two buttons. The slider and buttons support
only CSD sensing mode. An external capacitor, CMOD is provided on the CY8CMOD-062S3-4343W
for CSD. For details on using CapSense including design guidelines, see the
CapSense Design
The CapSense section can be broken away and re-connected to PSoC 6 MCU at J2.12 to J2.21
through J4.

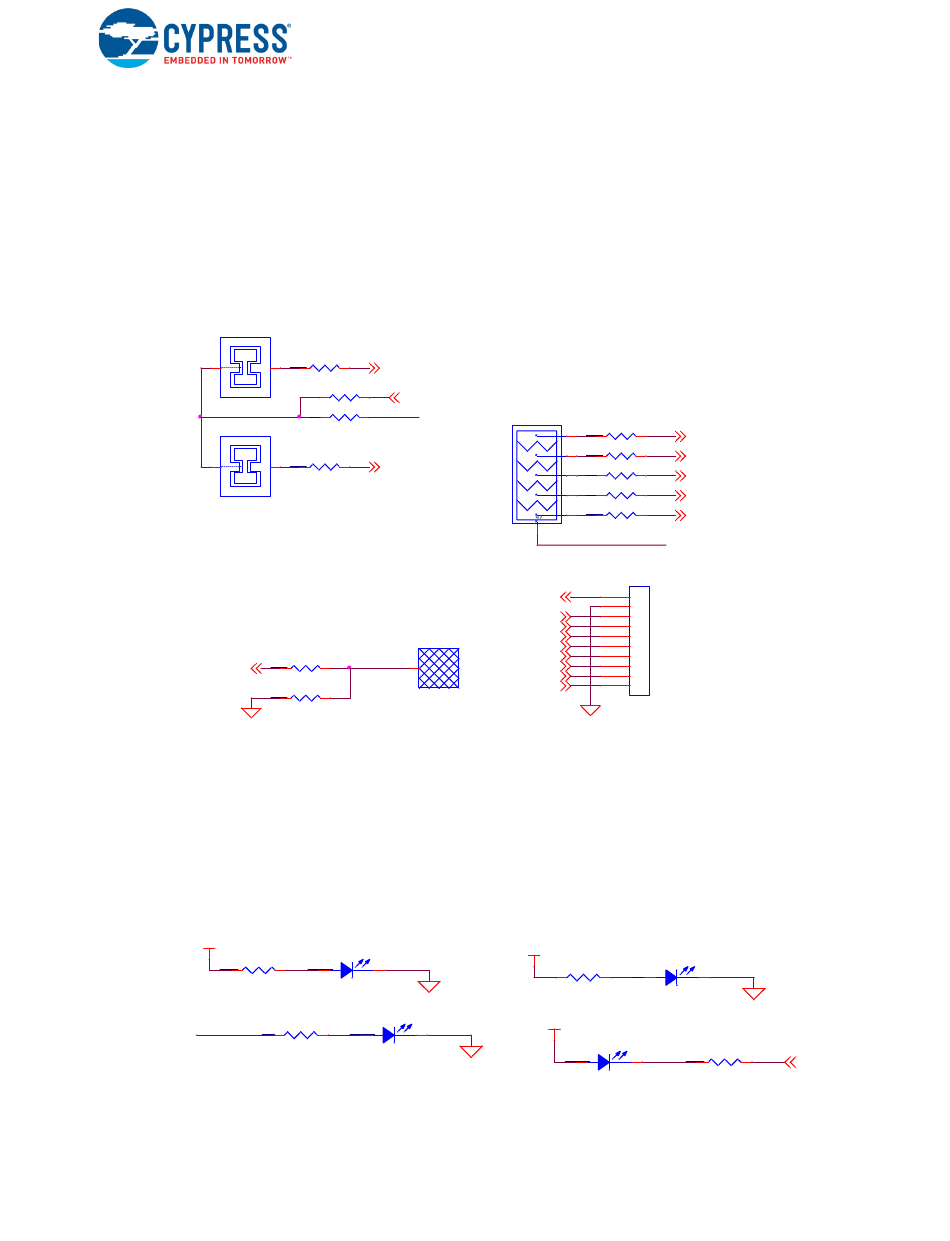

Figure 3-9. Schematics of CapSense Circuit
CapSense Buttons
2
Rx Tx
CSB1
RES_CS_TX_RX
2
Rx Tx
CSB2
Note: CSX Mode is not supported
in this kit, but it is designed for
future compatibility
CapSense Shield
R75
CS_CAP_SH
R74
3.2.7

LEDs

LED2 (Amber) indicates the status of the KitProg3 (See the
and LED3 (Amber LEDs) indicates the status of power supplied to PSoC 5LP and PSoC 6 MCU
respectively.
The board also has one user controllable LED (LED4) connected to PSoC 6 MCU pin P11[1] for user
applications.
Figure 3-10. Schematics of LEDs
