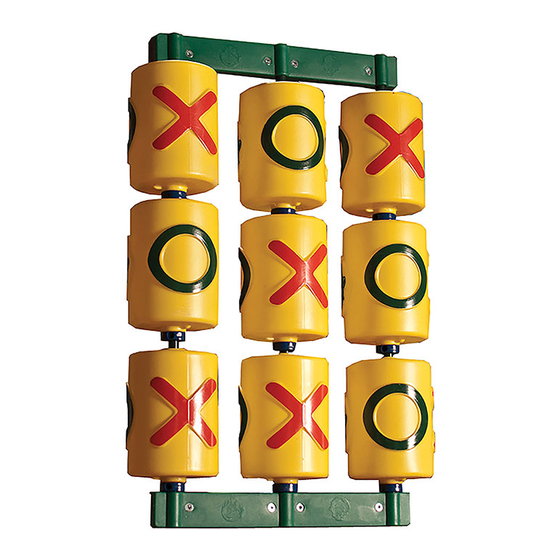

Playnation TIC TAC TOE Manual

STEP 1: ASSEMBLE THE DOWELS

1: LOCATE THE GREEN DOWELS AND MATCH THEM AS FOLLOWS:
ONE THREADED STUD END, AND ONE THREADED INSERT.
2: SCREW THE STUDS INTO THE INSERTS UNTIL TIGHT.
3: REPEAT STEPS 1 AND 2 WITH THE REMAINING TWO SETS

STEP 3: INSERT COLLARS ONTO DOWELS

1: LOCATE THE BLUE COLLARS AND SLIDE THEM OVER THE
DOWELS

STEP 5: TOP BRACKET

1: LOCATE THE GREEN BRACKET AND PLACE ON TOP OF
ASSEMBLY. LINE UP THE HOLES IN THE BRACKET WITH THE
DOWELS ON THE UNIT.
Please note: Tic-Tac-Toe is intended for make-believe-play by children.
TIC TAC TOE (07-0010)
*FOR RESIDENTIAL USE ONLY*
*FOR CHILDREN AGES 3-11*

STEP 2: INSERTING THE DOWELS INTO THE BRACKET

1: LOCATE ONE OF THE GREEN BRACKETS AND PLACE
THE DOWELS IN AS SHOWN.

STEP 4: TUMBLERS

1: LOCATE THE TIC-TAC-TOE TUMBLERS AND PLACE ONE ON
EACH DOWEL ABOVE THE COLLARS.
2: REPEAT ASSEMBLY STEPS 3 AND 4 TO FINISH INSTALLING
COLLARS AND TUMBLERS.
