IBM Power System 9009-41A Manual page 75

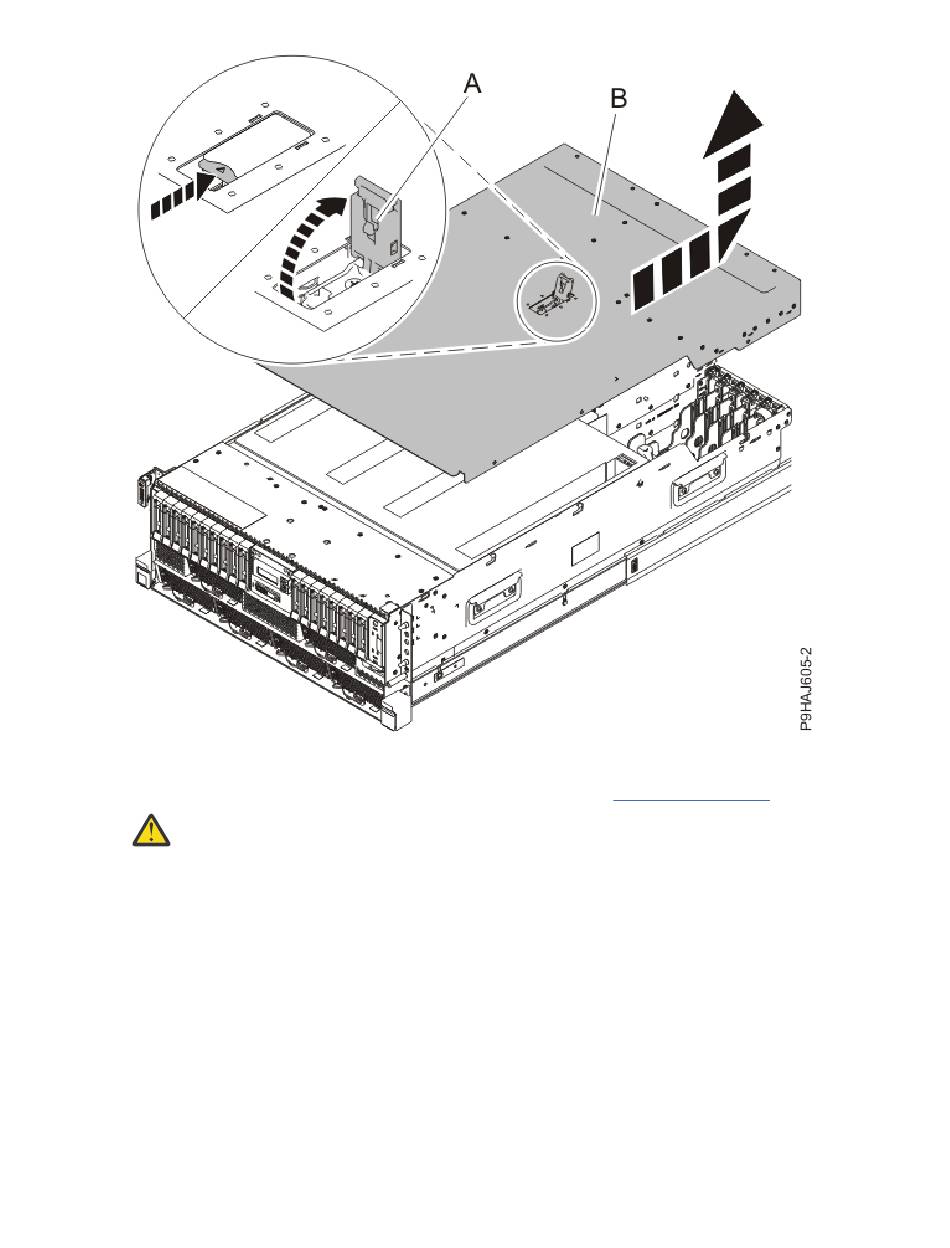

Figure 57. Removing the service access cover from a rack-mounted system
For a stand-alone system, complete the following steps. Refer to Figure 58 on page 62.
Attention: Operating the system without the service access cover on for more than 10 minutes
when the system power is turned on might damage the system components.
a. Release the latch by pushing the release latch (A) in the direction shown.
b. Slide the cover (B) off the system unit. When the front of the service access cover has cleared the
upper frame ledge, lift the cover up and off the system unit.
Control panel cables for the 9009-41A, 9009-42A, or 9223-42H 61
