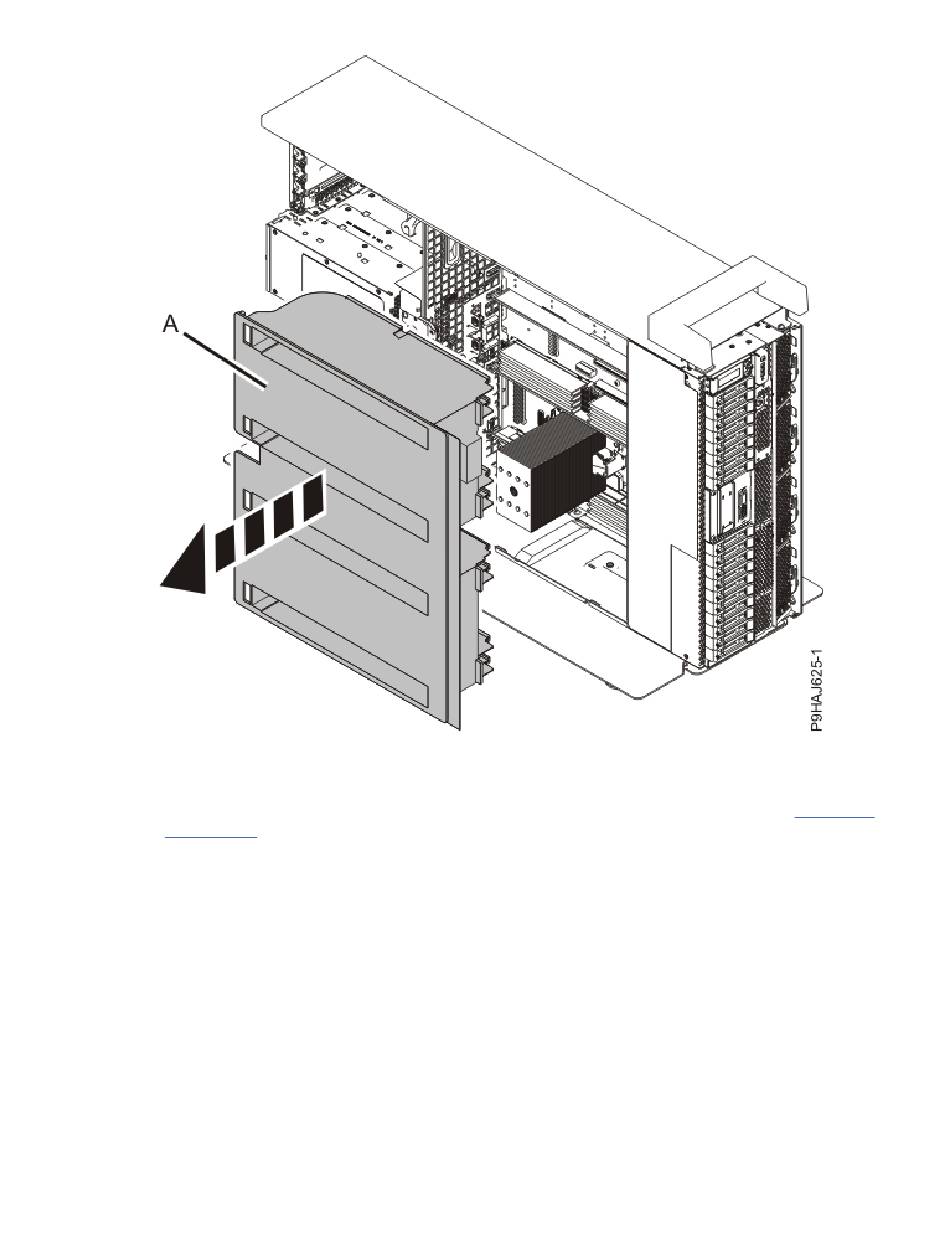

Figure 106. Removing the air baffle from a stand-alone system
3. If the server has an RDX drive, partially remove the RDX docking station.
a) Push the RDX docking station latch upwards in the direction of the arrow as shown in Figure 107
on page 112.
b) Slide the RDX docking station about 1 in (2.5 cm) from of the system.
Control panel cables for the 9009-41A, 9009-42A, or 9223-42H 111
