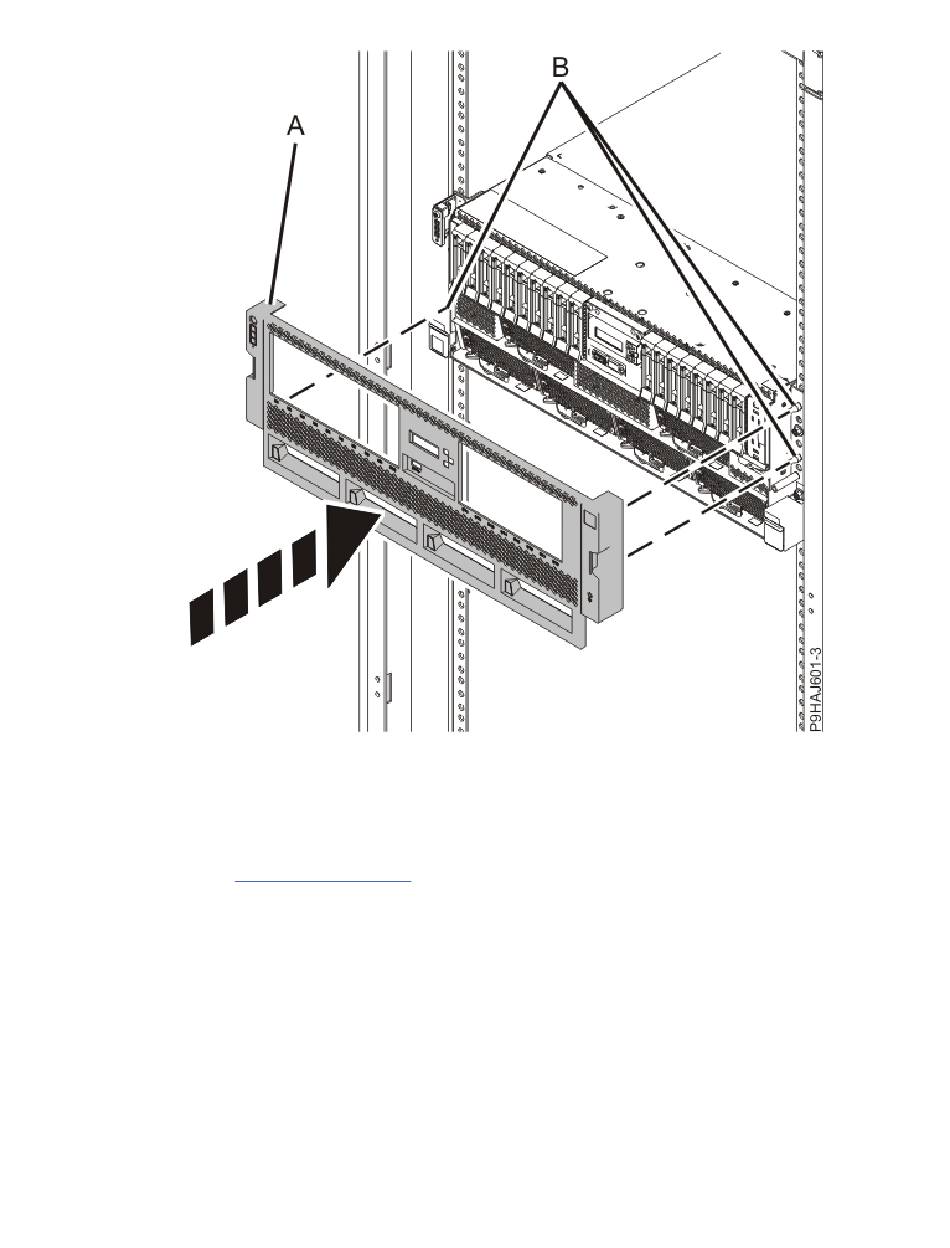

Figure 133. Installing the front cover
6. For a stand-alone system, install the front cover and door by completing these steps.
a) Ensure that you have the electrostatic discharge (ESD) wrist strap on and that the ESD clip is
plugged into a ground jack or connected to an unpainted metal surface. If not, do so now.
b) Align the cover until the two cover tabs (A) are seated into the slots on the base plate (B) as
shown in Figure 134 on page 139.
138 Power Systems: Power Systems: Control panel
