Erone SEL2641R433-GDR Use And Installation Manual

ERONE GARAGE DOOR RECEIVER
Use and installation manual
Made in
Italy
Thank you for choosing this product .
You are recommended to read this manual carefully before
installing this product.

1 - INTRODUCTION

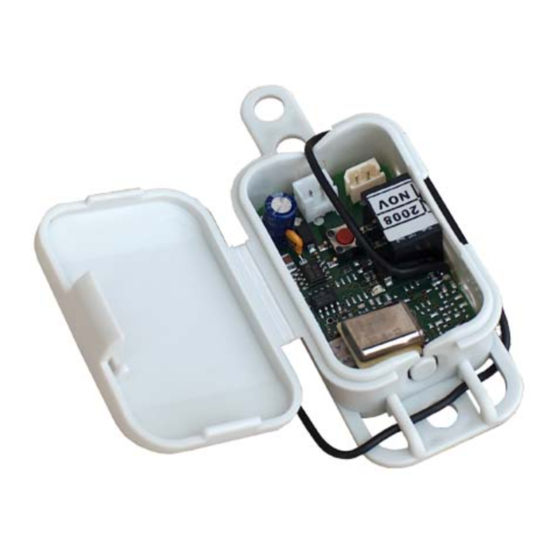

The Erone Garage Door Receiver SEL2641R433-GDR is single
conversion superheterodyne receiver operating at 433,92 MHz in
AM/ASK modulation.
It is designed for automatic closing systems and anti-burglar
systems. The antenna is direct connected with 6,5" wire. The relay
K1 available output is only with NO type contact. The operating
mode of K1 is Pulse and or Timed ( see below for its configuration).
The power supply is 12/24Vac/dc with selection jumper. The IP
grade of 2X allows only indoor installations. Hereby, CDVI
Wireless Spa, declares that the radio equipment type
SEL2641R433-GDR is in compliance with directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the
following internet address: www.erone.com.

2 - TECHNICAL SPECIFICATIONS

Receiver type
Carrier Frequency
Local oscillation frequency
Demodulation
Local oscillator type
Channel width
Intermediate frequency
Input sensitivity
Spurious emissions
Input load
Operating voltage
Max power on relay contacts
Relay number

Operating modes

Min relay pulse
Memory
Security protocol
Code combinations
Operating temperature
Enclosure IP grade
Dimensions ( main box)
Superheterodyne
433.92 MHz
6.6128 MHz
AM/ASK
VCO / PLL
> 25 KHz
10.7 MHz
-105 dBm
< -57 dBm
50 Ohm
12/24 Vac/dc
24 VA
1
Momentary / Delayed
1 Sec
85 TX keys
Keeloq Hopping code
64
2
-20°/+70°C
IP2X
40 x 22 x 56 mm

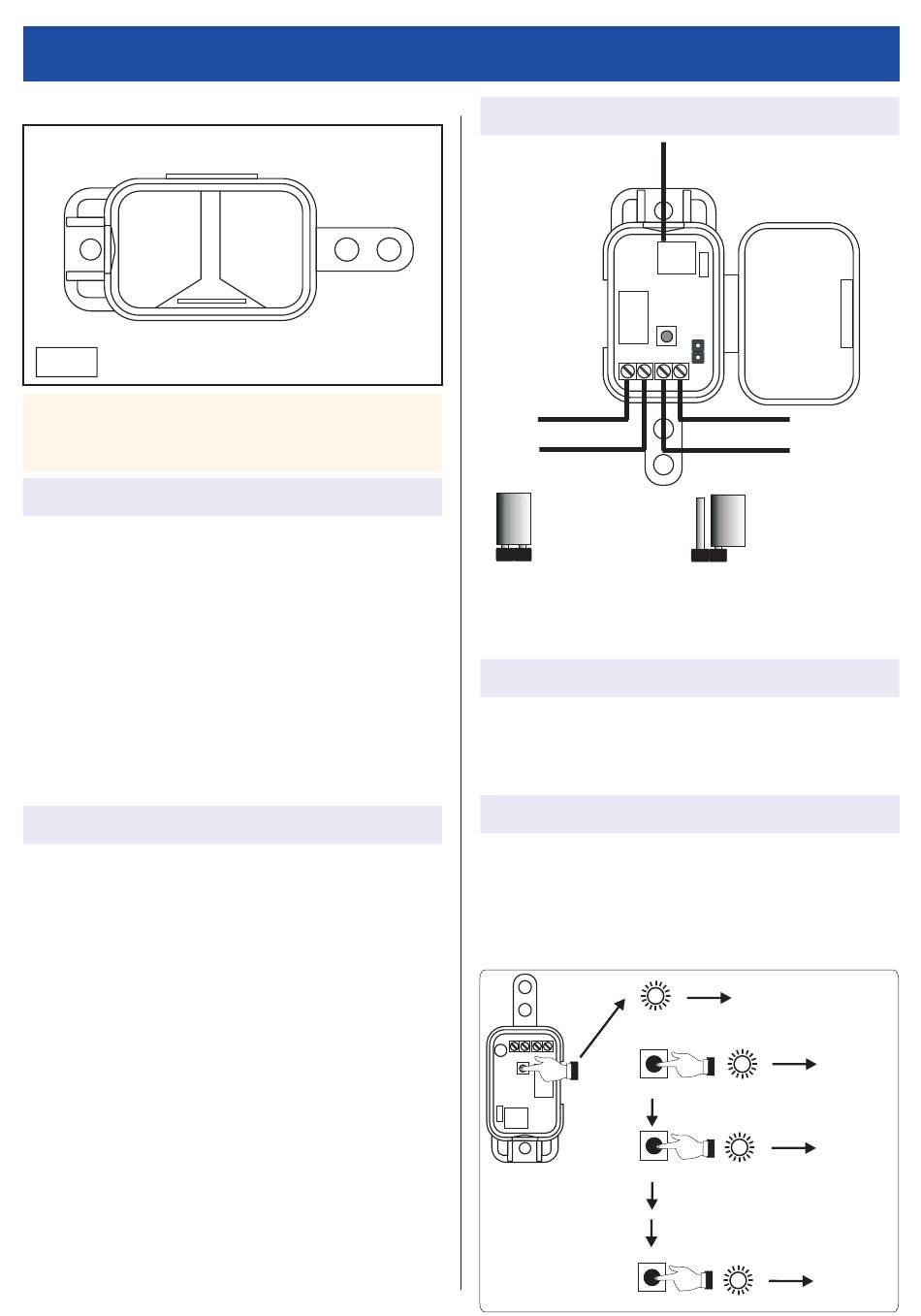

3 - WIRINGS & POWER SELECTION
NO
C
JP1 = CLOSED
12 Vac/dc
REMARK : The supply must be provided from a certified power
supply according to Safety Regulations and coming from a SELV
circuit protected against short-circuit.
4 - OPERATING MODES
The operating mode can be Pulse or timed. In Timed mode the
relay release after a programmable time. The min relay activation
time is 1 Sec. During the delay time a pulse of the transmitter
makes the relay to release.

5 - RELAY RELEASE SETTING

Procedure
1) Press and hold the push-button P1 for 4 sec. until the green
led LD makes a flash ( Fig. 3);
At this point it is possible to set the release time: push P1 as
many times as much is the release time, in seconds, desired.
( max 30 Sec.)
LD
P1 4s
P1
P1
Fig. 3
P1
Antenna
JP1
+12/24 Vac/dc
0 V
JP1=OPEN
24 Vac/dc
1 Sec.
2 Sec.
3 Sec.
30 Sec.
