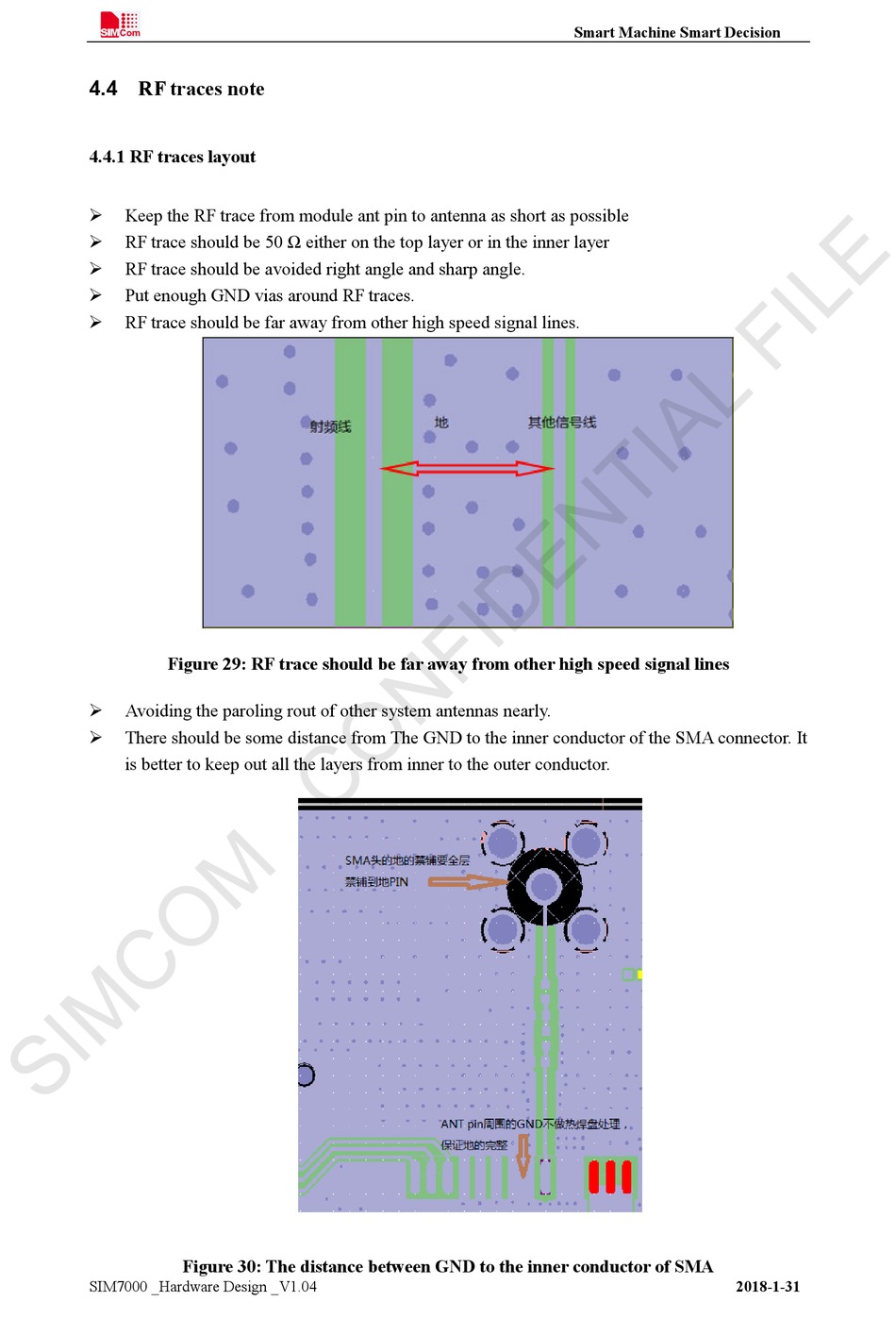

4.4 RF traces note

4.4.1 RF traces layout

Keep the RF trace from module ant pin to antenna as short as possible

RF trace should be 50 Ω either on the top layer or in the inner layer

RF trace should be avoided right angle and sharp angle.

Put enough GND vias around RF traces.

RF trace should be far away from other high speed signal lines.

Figure 29: RF trace should be far away from other high speed signal lines
Avoiding the paroling rout of other system antennas nearly.

There should be some distance from The GND to the inner conductor of the SMA connector. It

is better to keep out all the layers from inner to the outer conductor.
Figure 30: The distance between GND to the inner conductor of SMA
