Smart Machine Smart Decision
2
Package Information
2.1
Pin Assignment Overview
All functions of the SIM7000 will be provided through 68 pads that will be connected to the
customers' platform. The following Figure is the pin assignment of the SIM7000.

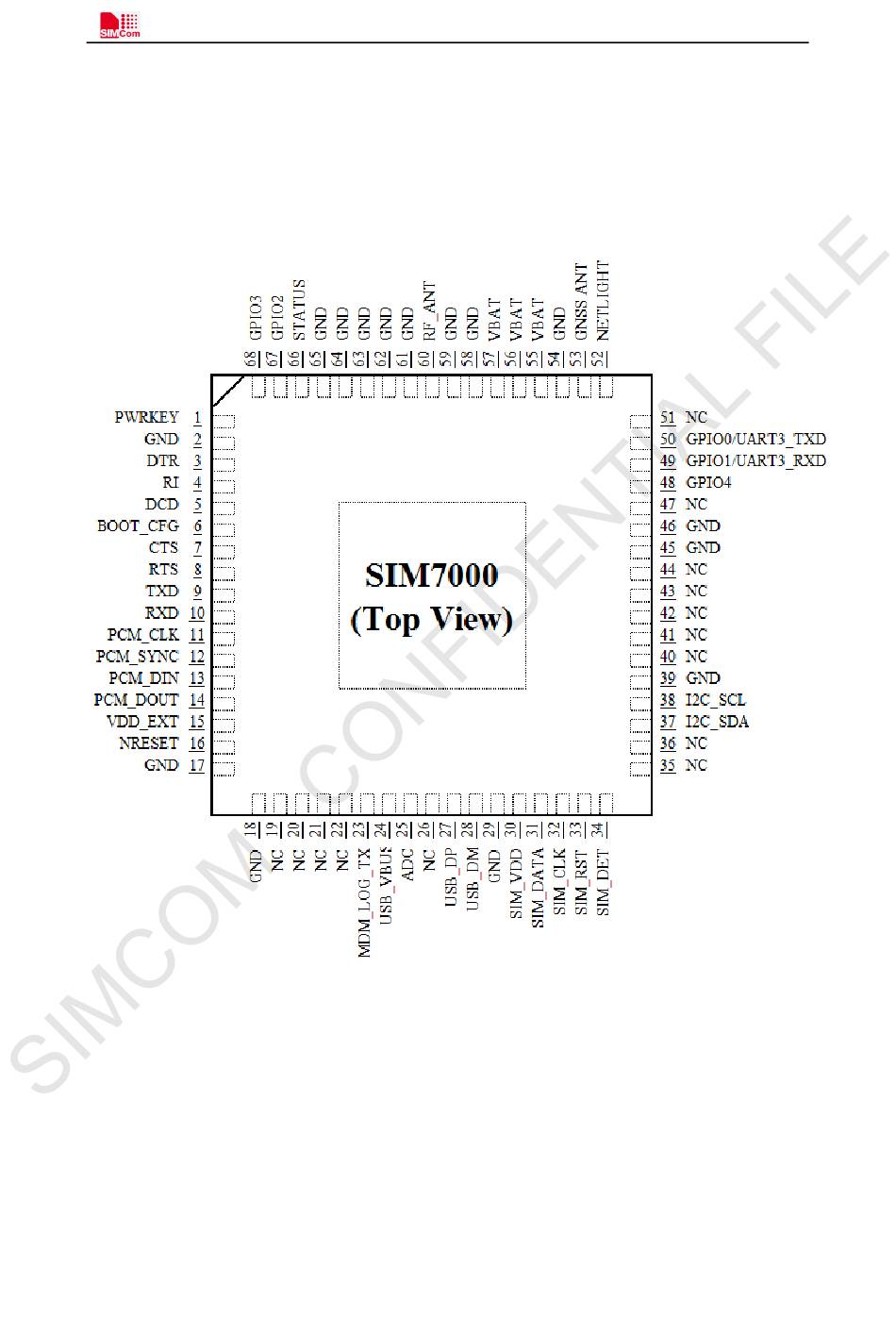

Figure 2: Pin assignment overview
2018-1-31
SIM7000 _Hardware Design _V1.04
