- Page 1 Application Simplify Communication SIM7000 Series EVB Quick Start Guide Version: 1.0 Release Date: April 8, 2018 Simplify Communication. www.simcomm2m.com...
-
Page 2: About Document
SIM7000C-N Copyrights This document contains proprietary technical information which is the property of SIMCom Wireless. Copying of this document and giving it to others and the using or communication of the contents thereof, are forbidden without express authority. Offenders are liable to the payment of damages. All rights reserved in the event of grant of a patent or the registration of a utility model or design. -
Page 3: Table Of Contents
3.2 Accessories installation ....................... 9 3.3 AT command Communication ................... 10 3.3.1 Power on device ..................... 10 3.3.2 Communication through UART interface ............... 10 3.3.3 Communication through USB Port ................. 10 Contact ............................12 SIM7000 Series EVB Quick Start Guide Page 3 / 12... -
Page 4: Purpose Of This Document

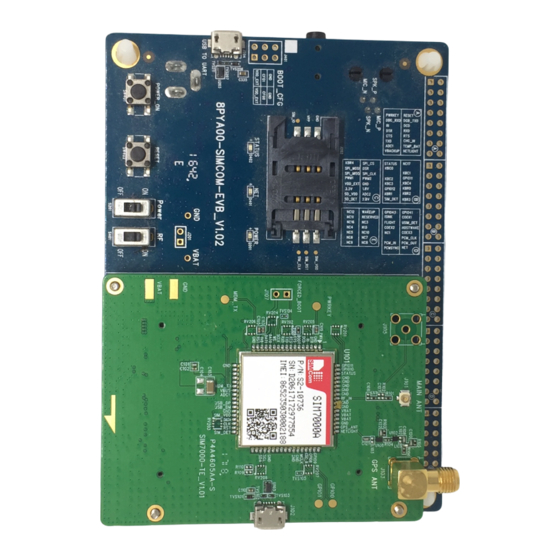

Simplify Communication 1 Purpose of this document With SIMCom Evaluation board (EVB) kit, developer could verify each function quickly and easily. This document is aim to introduce every interface usage of this EVB kit, and send AT command to demo module functions. - Page 5 Simplify Communication Here is top view of SIMCom EVB. And bottom view of SIMCom EVB. SIM7000 Series EVB Quick Start Guide Page 5 / 12...
- Page 6 S2-1073B For Verizon network SIM7000A-A-TE kit S2-107HE For AT&T network SIM7000JC-TE kit S2-1073F For Japan SIM7000G-TE Kit S2-197HC Global roaming SIM7000C-N-TE Kit S2-1073L NB1 only SIM7000E-N-TE Kit S2-1073T NB1 only SIM7000 Series EVB Quick Start Guide Page 6 / 12...
-
Page 7: Interface Introduction
J304_PIN_5 J303_PIN_6 J304_PIN_6 J303_PIN_7 J304_PIN_7 J303_PIN_8 J304_PIN_8 J303_PIN_9 VDD_EXT J304_PIN_9 J303_PIN_10 J304_PIN_10 J303_PIN_11 VCC_3V3 J304_PIN_11 J303_PIN_12 VCC_1V8 J304_PIN_12 PCM_CLK J303_PIN_13 J304_PIN_13 PCM_IN J303_PIN_14 J304_PIN_14 PCM_OUT J303_PIN_15 J304_PIN_15 PCM_SYNC J303_PIN_16 J304_PIN_16 SIM7000 Series EVB Quick Start Guide Page 7 / 12... -
Page 8: Installations And Communication
This USB-to-UART chipset on board is from Silicon labs. Here is the driver link. https://www.silabs.com/products/development-tools/software/usb-to-uart-bridge-vcp-drivers After driver installed properly and completely, there have two virtual USB ports, COM12 and COM13. SIM7000 Series EVB Quick Start Guide Page 8 / 12... -
Page 9: Module Usb Interface Driver Installation
3.1.2 Module USB interface driver installation SIM7000 Chipset is from Qualcomm. SIMCom provide proper driver to developer, please contact local FAE. After USB driver installed properly and completely, there will be 6 virtual ports, AT port, Audio port, Diagnostics port, NMEA port, modem port and WWAN adapter port. -
Page 10: At Command Communication
3.3.3 Communication through USB Interface USB AT port and modem port are available for AT command communication, while modem port usually is recommended for pure data communication like PPP or TCP transparent mode. SIM7000 Series EVB Quick Start Guide Page 10 / 12... - Page 11 Also, to enable GNSS NEMA communication send command AT+CGNSPWR=1 through AT port. ※ Notice ※ Notice Regarding FW upgrade, only support USB interface. Please refer to SIM7000 series FW upgrade user guide. SIM7000 Series EVB Quick Start Guide Page 11 / 12...
-
Page 12: Contact
America West Europe ASEAN North America we-support@sim.com asean-support@sim.com us-support@sim.com East Europe Australia and New Zealand Central and South America ee-support@sim.com anz-support@sim.com la-support@sim.com Middle East Big China me-support@sim.com China-support@sim.com Africa af-support@sim.com SIM7000 Series EVB Quick Start Guide Page 12 / 12...
