INSTALLATION INSTRUCTIONS
WARNING: Luminaire must be installed and grounded in accordance with the National Electrical Code (NEC)
and local codes. For portable stake or surface mount using a cord and plug, the luminaire must be plugged into
a receptacle protected by a ground fault circuit interrupter (GFI). Failure to do so may result in serious injury and/
or damage to the luminaire.
MAINTENANCE: To assure proper operation and efficiency and to prevent luminaire overheating, lens must be
kept clean and free of dirt, dust, leaves, trash and mineral deposits from water. A regular schedule maintenance
program is recommended.
SAFETY WARNING: Luminaire can become very hot depending on the lamp wattage used. Lens and housing
around the lamp can become hot enough to blister hands. Particular care should be taken not to locate
luminaires where small children can reach them if high wattage lamps are used.
NOTE: Always use UL recognized wire connectors for connections.
NOTE: Save these instructions for future reference.
IN GROUND LUMINAIRE IS UL LISTED FOR ABOVE GRADE INSTALLATION ONLY.

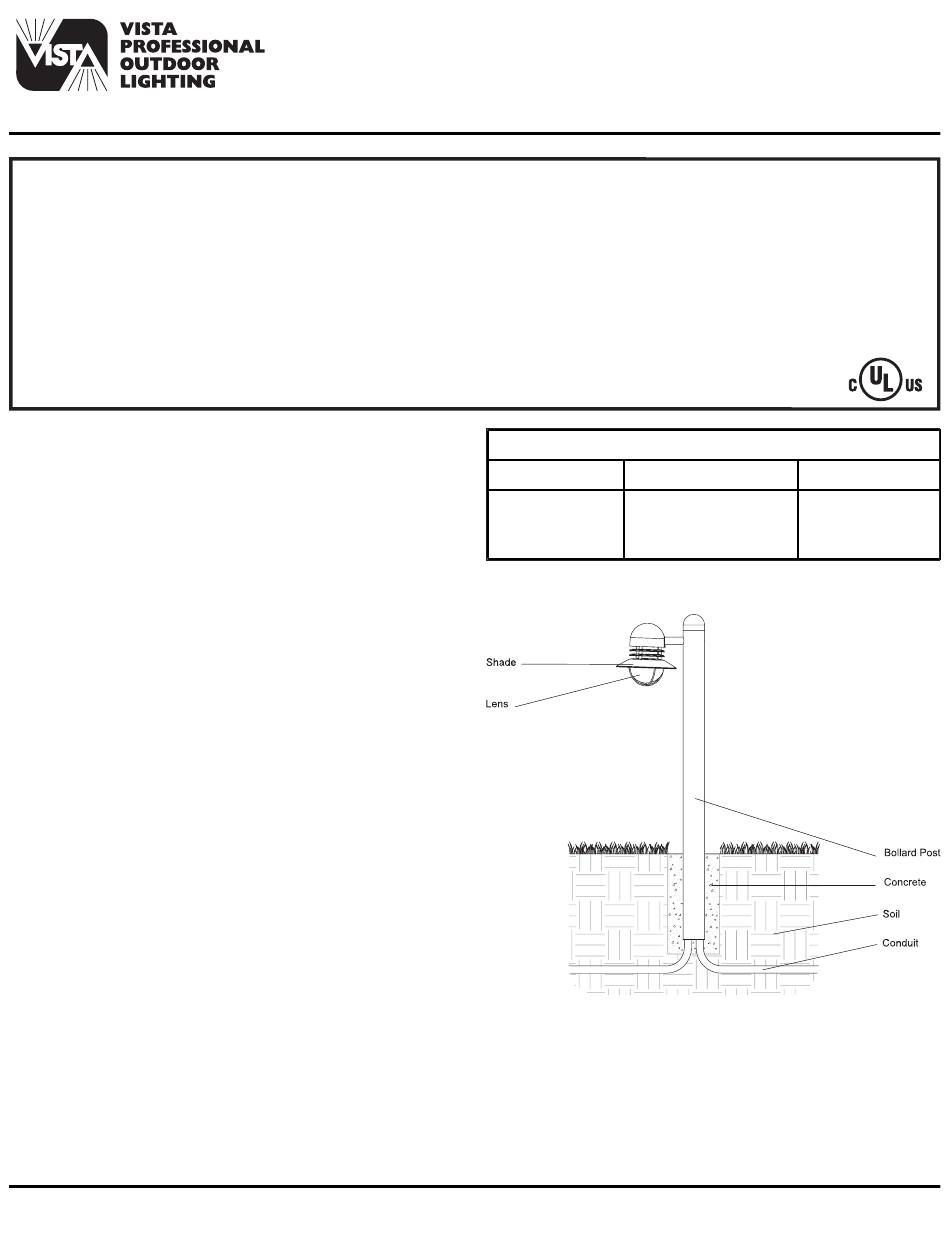

Pour Concrete Installation:

NOTE:
This Bollard is provided with 12" extra post length
to facilitate an in-ground installation. However, for a
permanent and secure installation a concrete footing
support for the bollard post is recommended.
1. Make sure electrical supply is off at circuit breaker before
starting luminaire installation or servicing.
2. Using standard masonry procedures, support bollard post
in selected location.
3. Install conduit.
4. Pull supply wires (line in) through conduit into bollard.
5. Attach luminaire leads to line in leads observing polarity,
black to black, white to white and green to ground using
silicone filled safety connectors (provided).
6. Pour concrete at least 2" thick.
7. Supply power to the luminaire and check for proper
operation.
1625 Surveyor Avenue • Simi Valley, CA 93063 • (805) 527-0987 • (800) 766-VISTA (8478)
FAX: (888) 670-VISTA (8478) • email@vistapro.com • www.vistapro.com

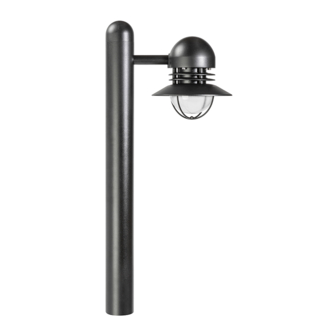

1455
120V SERIES
Bollards and Beacons
Lamp Information
Cat No
Lamp Type
1455
A15
Max Watts
60
