Vista 4243 Installation Instructions

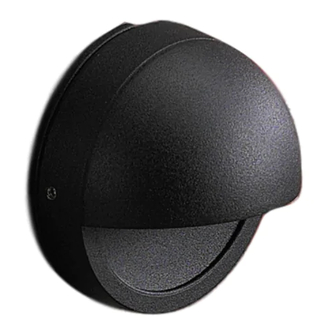

12 volt surface mount step and brick light

INSTALLATION INSTRUCTIONS FOR 12 VOLT SURFACE MOUNT

STEP AND BRICK LIGHT MODEL #4243

FOR USE ONLY WITH LOW VOLTAGE LANDSCAPE POWER UNITS THAT DO NOT

EXCEED 25 AMPS, 15 VOLT MAX.

WARNING: Luminaires must be installed in accordance with the National Electrical Code

(NEC) and local codes. Failure to do so will void the warranty and may result in serious

injury and/or damage to the luminaire.

SAFETY WARNING: Luminaire can become very hot depending on lamp wattage used.

Lens and metal around lamp can become hot enough to blister hands. Particular care

should be taken not to locate luminaires where small children can reach them if high

wattage lamps are used.

LUMINAIRES ARE NOT TO BE INSTALLED WITHIN 10 FT. (3.05M) OF A

POOL OR SPA. SECONDARY CABLE IS NOT TO BE BURIED MORE THAN

6". WHEN USING MULTIPLE LUMINAIRES, LOAD IS NOT TO EXCEED

TOTAL WATTS OF TRANSFORMER RATING. DO NOT USE EXTENSION

CORDS ON POWER UNITS.

NOTE: Always use UL recognized wire connectors for connections.

NOTE: Save these instructions for future reference.

Pilot Hole

Mounting Hole

#10 Mounting

Screws

(Not Supplied)

Cover

Lens

Fixture Cable

Backplate

Set Screw

Table of Contents

Need help?

Do you have a question about the 4243 and is the answer not in the manual?

Page 1 Cover Lens INSTALLATION INSTRUCTIONS FOR 12 VOLT SURFACE MOUNT STEP AND BRICK LIGHT MODEL #4243 FOR USE ONLY WITH LOW VOLTAGE LANDSCAPE POWER UNITS THAT DO NOT EXCEED 25 AMPS, 15 VOLT MAX. WARNING: Luminaires must be installed in accordance with the National Electrical Code (NEC) and local codes.
Page 2 5. Re-install cover and lens and tighten the two (2) set screws. NOTE: Halogen lamps must be protected from moisture and dust at all times. Always re-install cover and lens when removed. VISTA PROFESSIONAL OUTDOOR LIGHTING Division of U.S.T.E. Inc. Website: www.vistapro.com...
