Vista Architectural Series Installation Instructions

INSTALLATION INSTRUCTIONS
IMPORTANT NOTE:
• Luminaire must be installed and grounded in accordance with the National Electrical Code (NEC) and local codes.
• Luminaire is UL listed for above grade installation only.
• Always use UL recognized wire connectors for connections.
MAINTENANCE: To assure proper operation and efficiency, lens must be kept clean and free of dirt, dust,leaves, trash and mineral deposits from
water. A regular scheduled maintenance program is recommended.
SAFETY WARNING: Luminaire can become hot. Take care when locating luminaires.
NOTE: Save these instructions for future reference.

DIRECT LUMINAIRE MOUNTING TO STRUCTURAL SURFACE; WALL, OR CEILING:

1. Make sure electrical supply is off at circuit breaker before starting luminaire installation or servicing luminaire.
2. Mount the fixture onto the desired structural surface (by others) using appropriate anchors/fasteners (remote mount-by others). Two (2) 1/4"-20
tapped holes spaced 1-5/8" apart on the yoke strap may be used as clearance holes for fasteners (by others). These holes may also be drilled out (by
others) if larger fasteners (by others) are desired.
3. Route supply conductor cable through cord seal nut, nylon washer, grommet and cord seal locking nut.
4. Install and tighten stainless steel cord seal into hub of electrical service cover.
5. Route luminaire supply conductor cable through stainless steel cord seal.
6. Connect conduit supply conductors (by others) to the luminaire supply conductor cable observing polarity, line to black, neutral to white, and ground
to green.
7. Adjust the amount of supply conductor cable required for fixture aiming by pushing cable into or pulling cable out from the J-Box. When the correct
length of cable is acheived, position the grommet & nylon washer into the stainless steel cord seal body, then firmly tighten the cord seal nut. (For
mountings directly over 4-0 box, the supply conductor cable is routed through the yoke through hole. Tighten the cord seal locking nut to secure
the yoke to the electrical service cover).
8. Install electrical service cover onto electrical box.
9. To adjust luminaire aiming angle, first remove the decorative end caps. Using custom wrench supplied, loosen the stainless steel locking nuts (do not
completely remove). Adjust the aim of the fixture and firmly re-tighten the locking nuts. Replace the decorative end caps.
10. Supply power to the luminaire and check for proper operation.

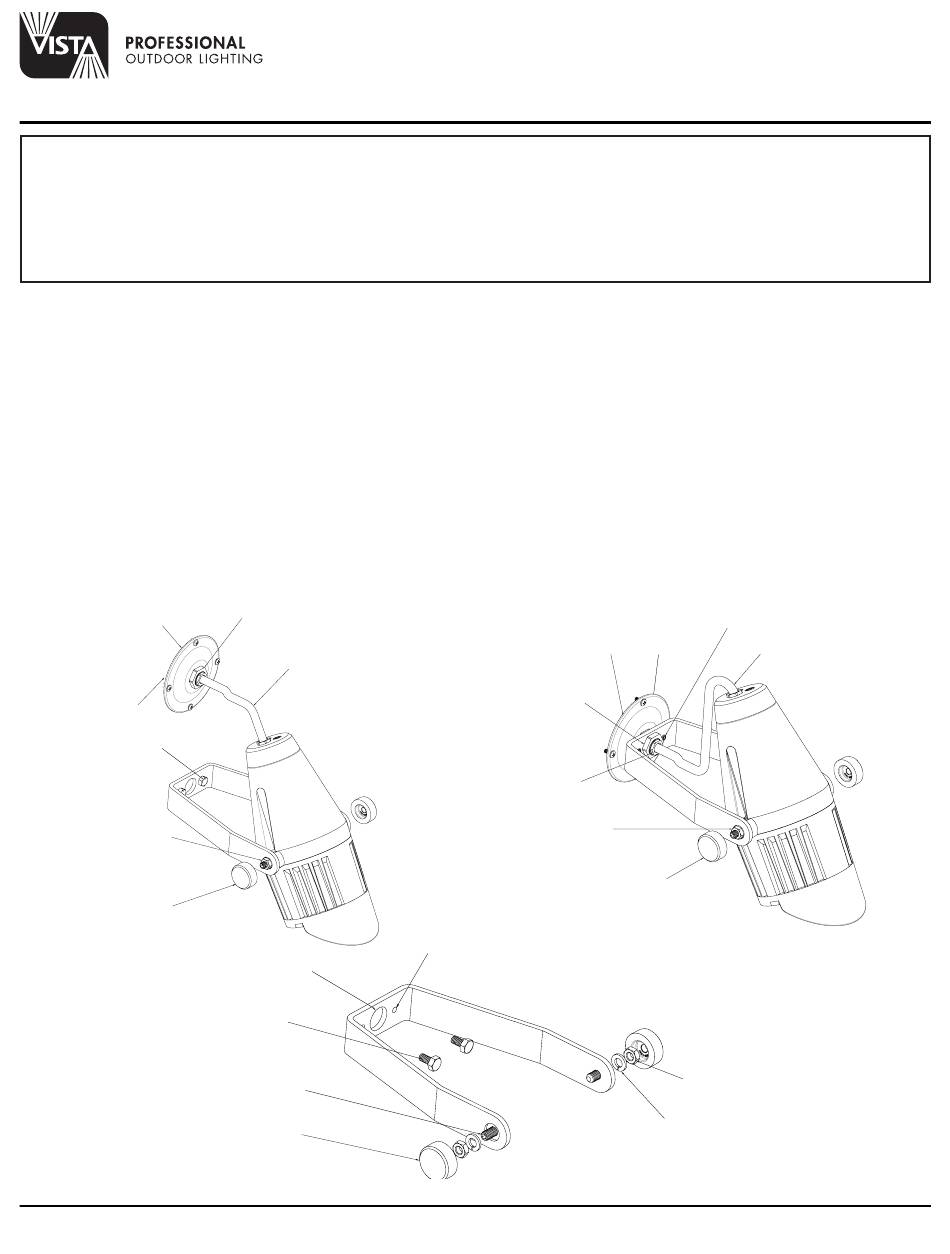

4-0 JUNCTION
BOX LID
(BY OTHERS)
MOUNTING BOLTS (2)
(By Others)
YOKE
LOCKING NUTS (2)
DECORATIVE
END CAPS (2)
Vista Professional Outdoor Lighting reserves the right to modify the design and/or construction of the fixture shown without further notification.
STAINLESS STEEL
CORD SEAL
SUPPLY CONDUCTOR
CABLE
27/32" THRU HOLE FOR
CORD SEAL (If Mounting
Directly Over Junction Box)
MOUNTING BOLTS (2)
(By Others)
5/16" PIVOT
SCREWS (2)
DECORATIVE END
CAPS (2)
1625 Surveyor Avenue • Simi Valley, CA 93063 • (805) 527-0987 • (800) 766-VISTA (8478)
FAX: (888) 670-VISTA (8478) • email@vistapro.com • www.vistapro.com
4-0 JUNCTION
BOX LID
CORD SEAL
LOCKING NUT
CORD SEAL
NUT
YOKE LOCKING
NUTS (2)
.20 TAPPED HOLES SPACED
1-5/8" APART FOR MOUNTING BOLTS
(Mounting Bolts By Others)
1045Y
Architectural Series
Up & Accent Lights
LOCKING
SET SCREWS (2)
(BY OTHERS)
SUPPLY CONDUCTOR
CABLE
DECORATIVE END
CAPS (2)
5/16"-18 LOCKING
NUTS (2)
5/16"-18 LOCK
WASHERS (2)
