Vista 12V Series Installation Instructions

INSTALLATION INSTRUCTIONS
36" Pigtail
Silicone Filled Safety
Connectors
FOR USE ONLY WITH LOW VOLTAGE LANDSCAPE POWER UNITS THAT DO NOT EXCEED 25 AMPS, 15 VOLT MAXIMUM.
WARNING: Luminaires must be installed in accordance with the National Electrical Code (NEC) and local codes.
Failure to do so will void the warranty and may result in serious injury and/or damage to the luminaire.
SAFETY WARNING: Luminaire can become very hot depending on lamp wattage used. Lens and metal around
lamp can become hot enough to blister hands. Particular care should be taken not to locate luminaires where
small children can reach them if high wattage lamps are used.
LUMINAIRES ARE NOT TO BE INSTALLED WITHIN 10 FT. (3.05M) OF A POOL OR SPA. SECONDARY CABLE IS NOT TO
BE BURIED MORE THAN 6". WHEN USING MULTIPLE LUMINAIRES, LOAD IS NOT TO EXCEED THE TOTAL WATTS OF
TRANSFORMER RATING. DO NOT USE EXTENSION CORDS ON POWER UNITS.
NOTE: Always use UL recognized wire connectors for connections.
NOTE: Save these instructions for future reference.

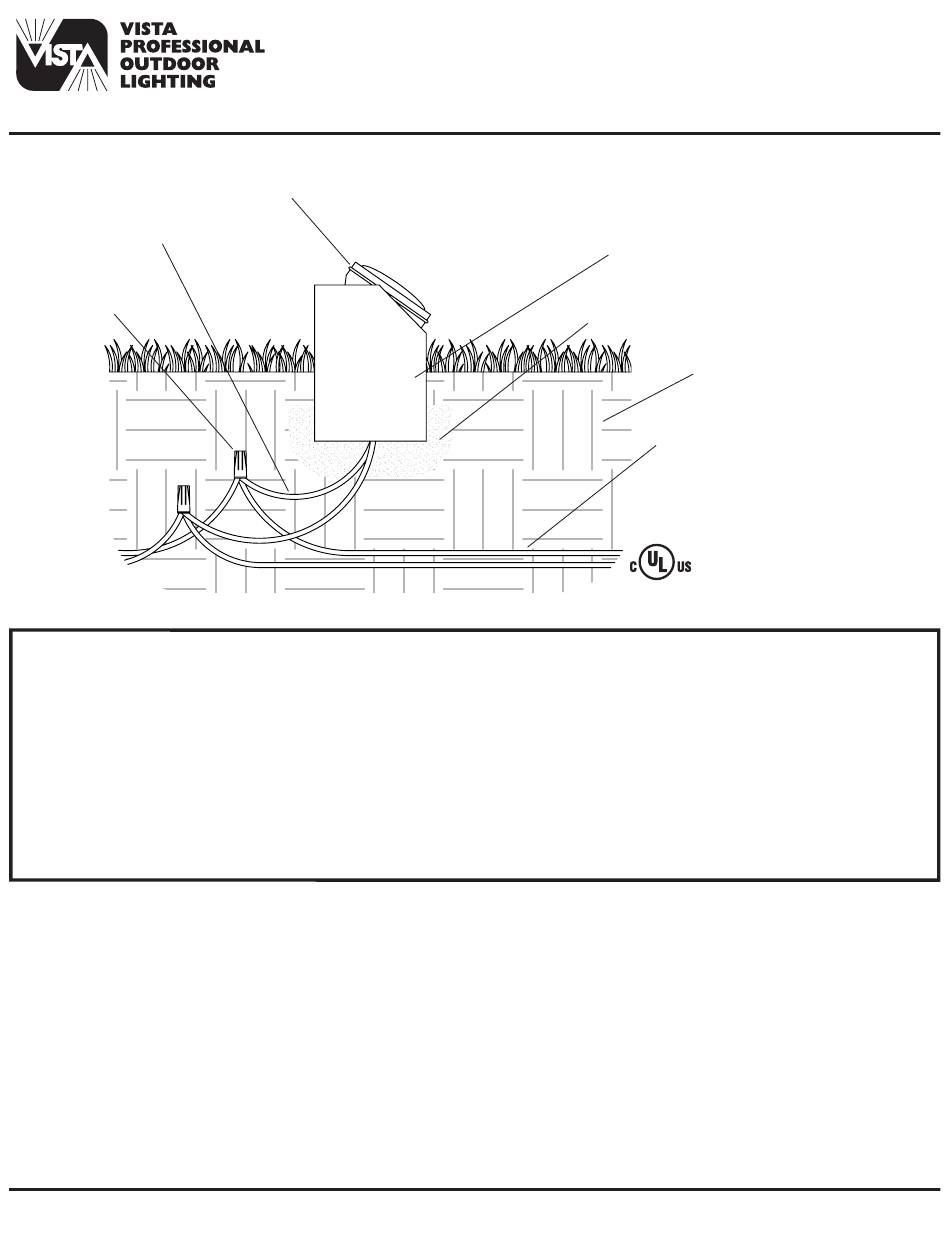

LUMINAIRE MOUNTING:

PRECAUTION: Luminaire is not submersible and adequate drainage must be provided during installation. It is recommended
that the luminaire be surrounded by 3" to 4" of pea gravel or sand to assure proper drainage. Top of luminaire must be
above grade so rain and irrigation water can not accumulate for long periods of time.
1. To prevent electrical shock, disconnect transformer from electrical supply before installation or service.
2. With a flat blade screwdriver, loosen terminal screws located on the back of the PAR-36 lamp.
3. Connect lamp holder leads (blue spade connector) to lamp terminals and tighten screws.
4. Coat screws with silicone grease.
5. Install lamp into black silicone rubber lamp holder.
6. Dig hole approximately 11" diameter by 11" deep. This allows approximately 3" of pea gravel or sand to surround the
ABS sleeve.
1625 Surveyor Avenue • Simi Valley, CA 93063 • (805) 527-0987 • (800) 766-VISTA (8478)
FAX: (888) 670-VISTA (8478) • email@vistapro.com • www.vistapro.com
Lens Cover
5240
12V SERIES
In-Ground and Well Lights
TOOLS REQUIRED FOR
INSTALLATION:
●Wire strippers
ABS Sleeve
●Flat head screwdriver
●Shovel
●Silicone grease
Pea Gravel or Sand
Soil
Main Supply Cable
Continued...
