Vista 12V Series Installation Instructions

INSTALLATION INSTRUCTIONS
Cover
screws
Fixture cover
Reflector
retaining
screw
Concrete
Side clamp bracket
for existing walls
FOR USE ONLY WITH LOW VOLTAGE LANDSCAPE POWER UNITS THAT DO NOT EXCEED 25 AMPS, 15 VOLT MAXIMUM.
WARNING: Luminaires must be installed in accordance with the National Electrical Code (NEC) and local codes.
Failure to do so will void the warranty and may result in serious injury and/or damage to the luminaire.
SAFETY WARNING: Luminaire can become very hot depending on lamp wattage used. Lens and metal around
lamp can become hot enough to blister hands. Particular care should be taken not to locate luminaires where
small children can reach them if high wattage lamps are used.
LUMINAIRES ARE NOT TO BE INSTALLED WITHIN 10 FT. (3.05M) OF A POOL OR SPA. SECONDARY CABLE IS NOT TO
BE BURIED MORE THAN 6". WHEN USING MULTIPLE LUMINAIRES, LOAD IS NOT TO EXCEED THE TOTAL WATTS OF
TRANSFORMER RATING. DO NOT USE EXTENSION CORDS ON POWER UNITS.
NOTE: Always use UL recognized wire connectors for connections.
NOTE: Save these instructions for future reference.

INSTRUCTIONS FOR EXISTING WALLS/WOOD DECK MOUNTING:

1. To prevent electrical shock, disconnect transformer from electrical supply before installation or service.
2. Remove reflector assembly from luminaire.
3. Using luminaire housing as a template, mark the location of the housing on the wall or deck.
4. Cut hole in wall or deck to accept housing.
NOTE: Remove any insulation within six (6) inches of where luminaire will be mounted.
5. Insert housing into cut hole and secure tightly against wall or deck.
6. Using the two (2) blue wirenut connectors (provided), connect the wire leads from behind
the reflector to the 18-2 cable pigtail (provided) exiting the luminaire (see diagram).
7. Install reflector and lamp.
8. Install cover plate to luminaire and tighten screws evenly (see diagram).
9. Strip the two (2) leads from the luminaire wire. Using the two (2) silicone filled safety
connectors (provided), connect the leads from the luminaire to the main supply cable
leads (see diagram).
10. Provide power to the luminaire and check for proper operation.
1625 Surveyor Avenue • Simi Valley, CA 93063 • (805) 527-0987 • (800) 766-VISTA (8478)
FAX: (888) 670-VISTA (8478) • email@vistapro.com • www.vistapro.com
Reflector
Flexible or
Fixture housing/
PVC conduit
Junction box
(by others)
4242

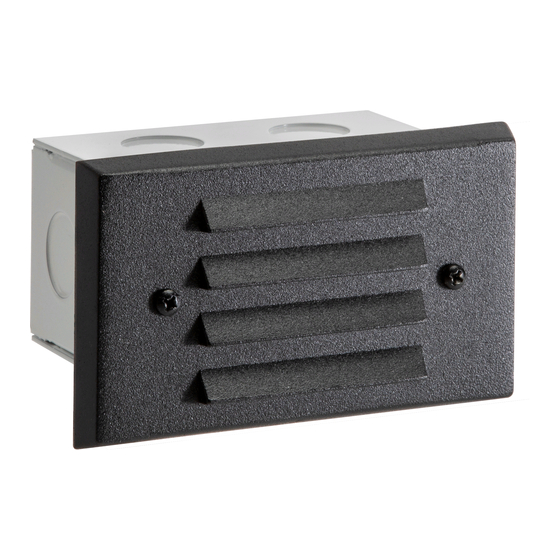

12V SERIES
Step and Brick Lights
TOOLS REQUIRED FOR
INSTALLATION:
●Wire strippers
●Blade head screwdriver
●Phillips head screwdriver
●Cutting saw
●Drill
Wood
staircase
18-2 Pigtail
Main supply
cable
