Dmx Traits; Dipswitch Settings - ADJ MB DMX II User Instructions

MB DMX II

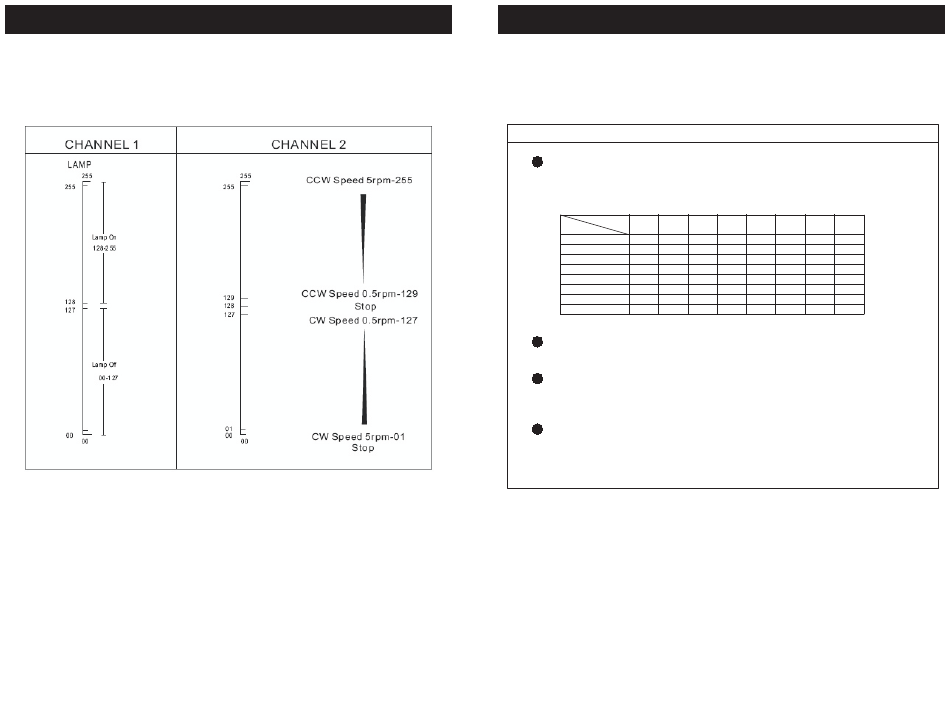

The chart below details the DMX traits in depth. The individual trait
can only be accessed by using an universal DMX controller. Note:
"Lamp" in channel 1 refers to the power socket located on the front
of the motor (this socket is intended to be used with lamps to light up
the mirror ball).
ADJ Products, LLC - www.adj.com - MB DMX II™ Instruction Manual Page 13

DMX Traits

MB DMX II
The charts below details the Master/Slave setting for Master/Slave
configuration. Use this configuration when you will be using two or
more fixtures in a Master/Slave configuration. Note: The "Master" set-
tings should only be used once at the first motor, using the "master"
setting more than once in the chain may result in erratic operation.
Dipswitch Function Settings
Dipswitches 1 ~ 8 Used to change the rotation speed during
Stand-Alone or Master/Slave mode
Master Motor Speed List
Switch
DIP1 DIP2 DIP3 DIP4
Speed
SPEED1 (0.5 rpm) ON - - -
SPEED2 (1 rpm) OFF ON - -
SPEED3 (1.5 rpm) OFF OFF ON -
SPEED4 (2 rpm) OFF OFF OFF ON
SPEED5 (2.5 rpm) OFF OFF OFF OFF
SPEED6 (3 rpm) OFF OFF OFF OFF
SPEED7 (4 rpm) OFF OFF OFF OFF
SPEED8 (5rpm) OFF OFF OFF OFF
Dipswitch 9 Control Rotation Direction;
On = CW Rotation / Off = CCW Rotation
Dipswitch 10 Controls Master/Slave Operation;
On = Master / Off = Slave
Note: Dipswitch 10 must be in the off postion for DMX operation
The optional MINI/C may be used during Master/Slave
operation to stop motor rotation and to blackout the
electrical sockets
ADJ Products, LLC - www.adj.com - MB DMX II™ Instruction Manual Page 14

Dipswitch Settings

DIP5 DIP6 DIP7 DIP8
- - - -
- - - -
- - - -
- - - -
ON - - -
OFF ON - -
OFF OFF ON -
OFF OFF OFF ON
" - " = Dip Switch Off
