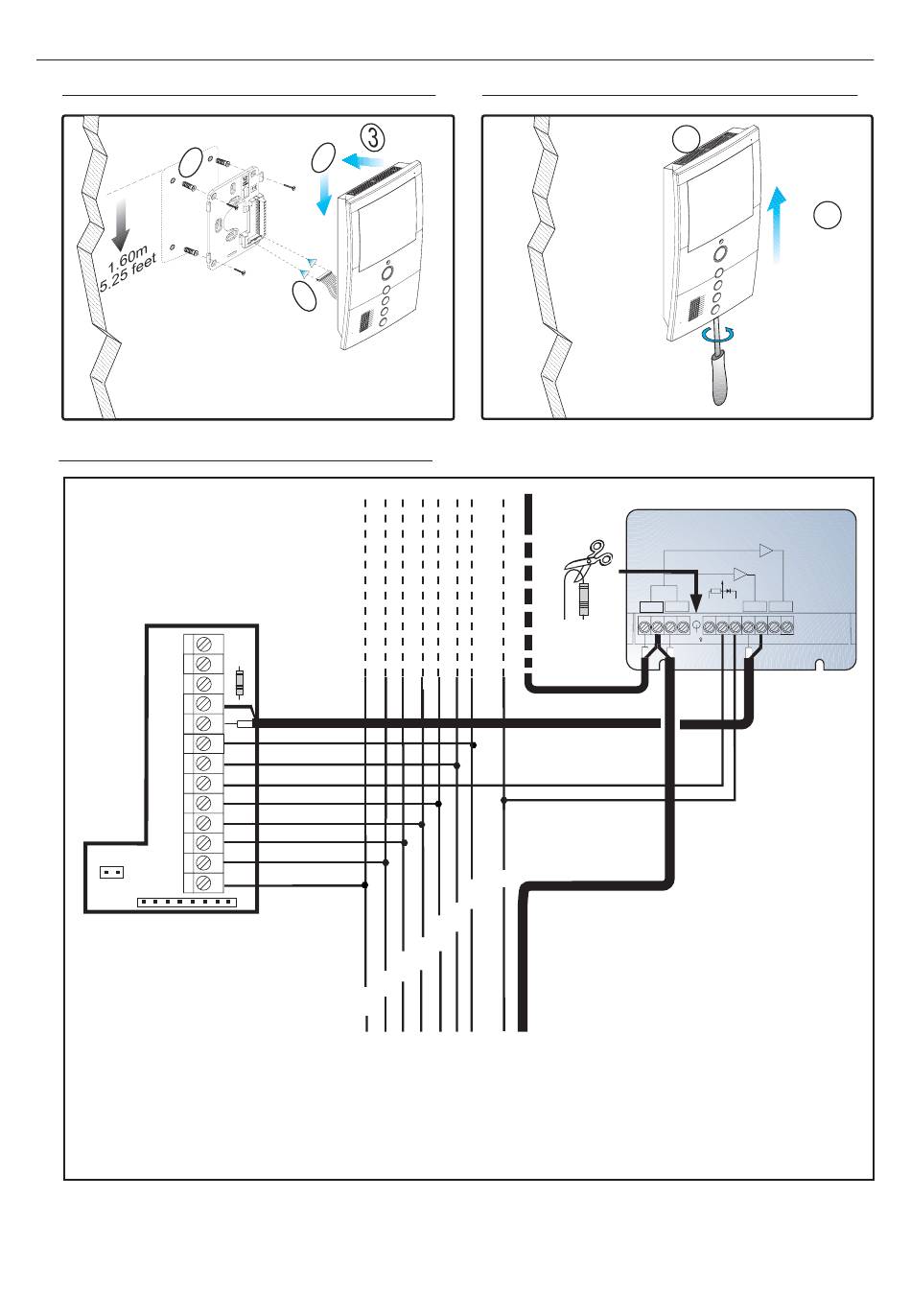

INSTALLATION AND WIRING
Assembly
1
Wiring
F1
F2
V
M
V
-
+
Ct
1
2
3
T A
4
6
1,2,3,6: common audio.
4: call Wire.
+, -: power supply (18 Vdc).
V: live (coaxial - video)
M: shield (coaxial - video)
NOTES:
- Only a maximum of 100 monitors can be installed on a 4+N system.
- To connect an additional monitor in the same residence a call multiplier must be
added Ref. 2340.
Pag 20
4
2
-
+
1
2
3
4
6
Ct: camera activation (10 Vdc)
T, -: Call Button residence.
A, +: Call Extension
Disassembly
REF.2448
1
R
V M
CT
COAX
1
2
90º
DISTRIBUIDOR VIDEO 2 SALIDAS
2 OUTPUTS VIDEO DISTRIBUTOR
+
5 2 6
(-)
4 3
V M V M V M
+18
R1
75
