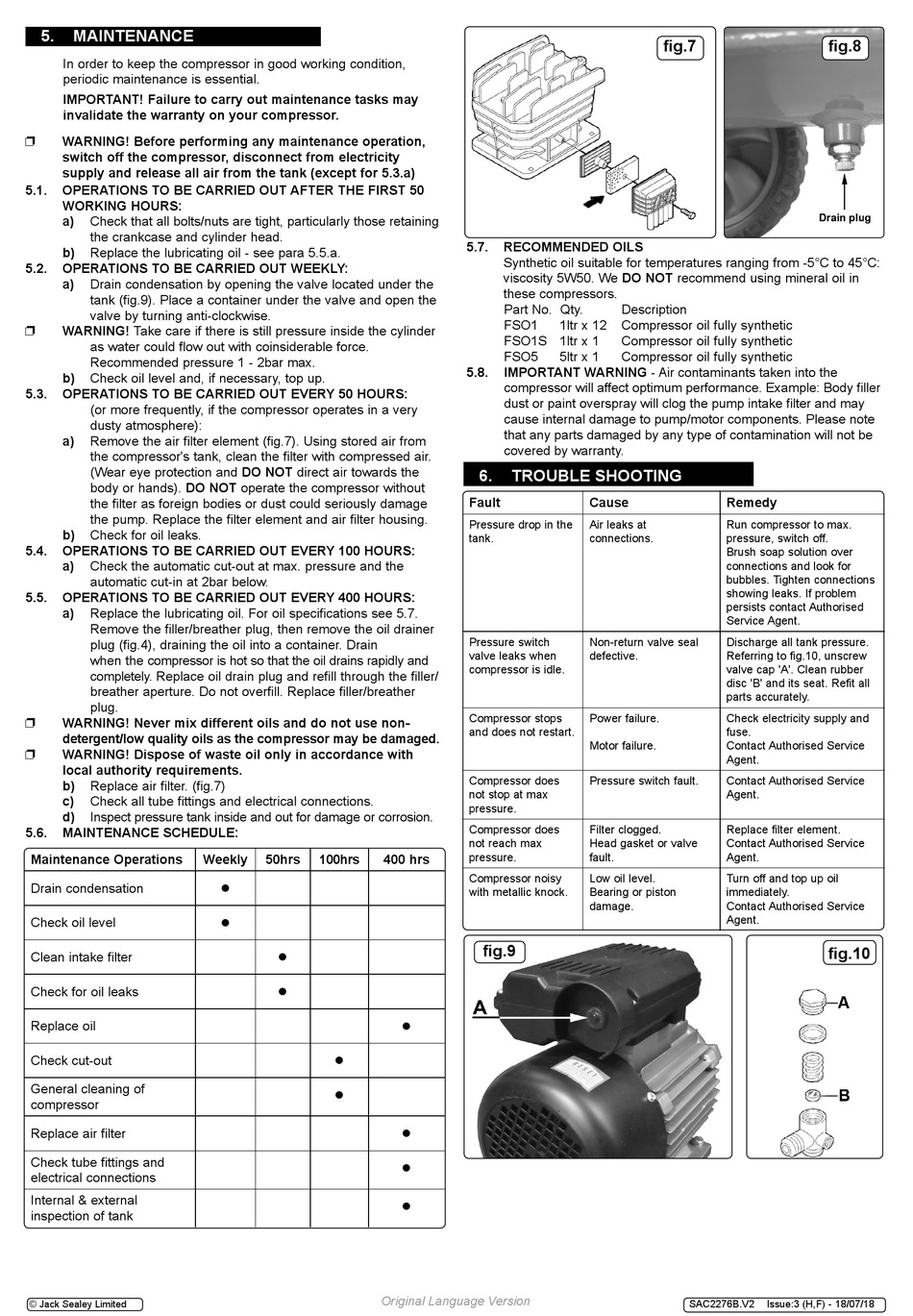

5.
MAINTENANCE
In order to keep the compressor in good working condition,
periodic maintenance is essential.
IMPORTANT! Failure to carry out maintenance tasks may
invalidate the warranty on your compressor.
WARNING! Before performing any maintenance operation,
switch off the compressor, disconnect from electricity
supply and release all air from the tank (except for 5.3.a)
5.1.
OPERATIONS TO BE CARRIED OUT AFTER THE FIRST 50
WORKING HOURS:
a)
Check that all bolts/nuts are tight, particularly those retaining
the crankcase and cylinder head.
b)
Replace the lubricating oil - see para 5.5.a.
5.2.
OPERATIONS TO BE CARRIED OUT WEEKLY:
a)
Drain condensation by opening the valve located under the
tank (fig.9). Place a container under the valve and open the
valve by turning anti-clockwise.
WARNING! Take care if there is still pressure inside the cylinder
as water could flow out with coinsiderable force.
Recommended pressure 1 - 2bar max.
b)
Check oil level and, if necessary, top up.
5.3.
OPERATIONS TO BE CARRIED OUT EVERY 50 HOURS:
(or more frequently, if the compressor operates in a very
dusty atmosphere):
a)
Remove the air filter element (fig.7). Using stored air from
the compressor's tank, clean the filter with compressed air.
(Wear eye protection and DO NOT direct air towards the
body or hands). DO NOT operate the compressor without
the filter as foreign bodies or dust could seriously damage
the pump. Replace the filter element and air filter housing.
b)
Check for oil leaks.
5.4.
OPERATIONS TO BE CARRIED OUT EVERY 100 HOURS:
a)
Check the automatic cut-out at max. pressure and the
automatic cut-in at 2bar below.
5.5.
OPERATIONS TO BE CARRIED OUT EVERY 400 HOURS:
a)
Replace the lubricating oil. For oil specifications see 5.7.
Remove the filler/breather plug, then remove the oil drainer
plug (fig.4), draining the oil into a container. Drain
when the compressor is hot so that the oil drains rapidly and
completely. Replace oil drain plug and refill through the filler/
breather aperture. Do not overfill. Replace filler/breather
plug.
WARNING! Never mix different oils and do not use non-
detergent/low quality oils as the compressor may be damaged.
WARNING! Dispose of waste oil only in accordance with
local authority requirements.
b)
Replace air filter. (fig.7)
c)
Check all tube fittings and electrical connections.
d)
Inspect pressure tank inside and out for damage or corrosion.
5.6.
MAINTENANCE SCHEDULE:
Maintenance Operations
Drain condensation
Check oil level
Clean intake filter
Check for oil leaks
Replace oil
Check cut-out
General cleaning of
compressor
Replace air filter
Check tube fittings and
electrical connections
Internal & external
inspection of tank
© Jack Sealey Limited
Weekly
50hrs
100hrs
•
•
•
•
•
•
5.7.
RECOMMENDED OILS
Synthetic oil suitable for temperatures ranging from -5°C to 45°C:
viscosity 5W50. We DO NOT recommend using mineral oil in
these compressors.
Part no. Qty.
FSo1
FSo1S 1ltr x 1
FSo5
5.8.
IMPORTANT WARNING - Air contaminants taken into the
compressor will affect optimum performance. Example: Body filler
dust or paint overspray will clog the pump intake filter and may
cause internal damage to pump/motor components. Please note
that any parts damaged by any type of contamination will not be
covered by warranty.
6.
TROUBLE SHOOTING
Fault
Pressure drop in the
tank.
Pressure switch
valve leaks when
compressor is idle.
Compressor stops
and does not restart.
Compressor does
not stop at max
pressure.
Compressor does
not reach max
pressure.
400 hrs
Compressor noisy
with metallic knock.
fig.9
•
•
•
•
Original Language Version
fig.7
Description
1ltr x 12
Compressor oil fully synthetic
Compressor oil fully synthetic
5ltr x 1
Compressor oil fully synthetic
Cause
Remedy
Air leaks at
Run compressor to max.
connections.
pressure, switch off.
Brush soap solution over
connections and look for
bubbles. Tighten connections
showing leaks. If problem
persists contact Authorised
Service Agent.
non-return valve seal
Discharge all tank pressure.
defective.
Referring to fig.10, unscrew
valve cap 'A'. Clean rubber
disc 'B' and its seat. Refit all
parts accurately.
Power failure.
Check electricity supply and
fuse.
Motor failure.
Contact Authorised Service
Agent.
Pressure switch fault.
Contact Authorised Service
Agent.
Filter clogged.
Replace filter element.
Head gasket or valve
Contact Authorised Service
fault.
Agent.
Low oil level.
Turn off and top up oil
Bearing or piston
immediately.
damage.
Contact Authorised Service
Agent.
