Sealey SAC2420E110V.V4 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Warning:
instruction Automatic
manual start up
1. SAFETY
1.1. ELECTRICAL SAFETY
WARNING! It is the user's responsibility to check the following:
‰
Check all electrical equipment and appliances to ensure that they are safe before using. Inspect power supply leads, plugs
9
and all electrical connections for wear and damage. Sealey recommend that an RCD (Residual Current Device) is used with
all electrical products.
Electrical safety information. It is important that the following information is read and understood:
Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
9
Regularly inspect power supply cables and plugs for wear or damage and check all connections to ensure that they are secure.
9
Important: Ensure that the voltage rating on the appliance suits the power supply to be used and that the plug is fitted with the correct fuse.
DO NOT pull or carry the appliance by the power cable.
8
DO NOT pull the plug from the socket by the cable.
8
DO NOT use worn or damaged cables, plugs or connectors. Ensure that any faulty item is repaired or is replaced immediately
8
by a qualified electrician.
If the cable or plug is damaged during use, switch off the electricity supply and remove from use.
Ensure that repairs are carried out by a qualified electrician.
1.1.1. Over/current Protection: The user has to make provision for the installation of the over-current protection of the power circuit.
1.1.2. Electrical disconnecting device:The user has to make provisions for the installation of the electrical disconnecting device of the
power circuit.
1.2. GENERAL SAFETY
Operation must be with all guards, covers, lids and enclosures correctly in place.
9
The concentration of processed gases that can displace breathing air shall be kept within acceptable levels. Reference EN 12021 for
9
acceptable levels of contaminants in breathing air.
Remove from mains supply when performing maintenance or inspections.
9
Delivery hoses should be fitted with a safety cord.
9
Familiarise yourself with the application and limitations of the compressor.
9
WARNING! all hoses and fitting shall be suitable for the site use at the maximum allowable pressure of the portable compressor.
‰
Ensure the compressor is in good order and condition before use. If in any doubt DO NOT use the unit and contact an electrician/service
9
agent.
WARNING! Compressor must only be serviced by an authorised agent. DO NOT tamper with, or attempt to adjust, pressure
‰
switch or safety valve.
Before moving, inspecting or maintaining the compressor ensure it is unplugged from the mains supply and that the air tank pressure has
9
been vented.
Maintain the compressor in good condition and replace any damaged or worn parts. Use genuine parts only. Unauthorised parts may be
9
dangerous and will invalidate your warranty.
Read the instructions relating to any accessory to be used with this compressor. Ensure the safe working pressure of any air appliance
9
used exceeds compressor's output pressure. If using a spray gun, check that the area selected for spraying is provided with an air
change/ventilation system.
Ensure the air supply valve is turned off before disconnecting the air supply hose.
9
To move the compressor, use the handle only. Maintain unit's centre of gravity when lifting. DO NOT attempt to lift or move the compressor
9
by any other means.
Use the compressor in a well ventilated area and ensure it is placed on a firm surface.
9
Keep tools and other items away from the compressor when it is in use, and keep area clean and clear of unnecessary items.
9
Ensure the air hose is not tangled, twisted or pinched.
9
Keep children and unauthorised persons away from the working area.
9
DO NOT dismantle the compressor for any reason. The unit must be checked by qualified personnel only.
8
DO NOT use the compressor outdoors, or in damp, or wet locations.
8
DO NOT operate within the vicinity of flammable liquids, gases or solids.
8
DO NOT touch compressor cylinder, cylinder head or pipe from head to tank as these may be hot.
8
DO NOT use this product to perform a task for which it has not been designed.
8
DO NOT deface the certification plate attached to the compressor tank.
8
DO NOT cover the compressor or restrict air flow around the unit whilst operating.
8
© Jack Sealey Limited

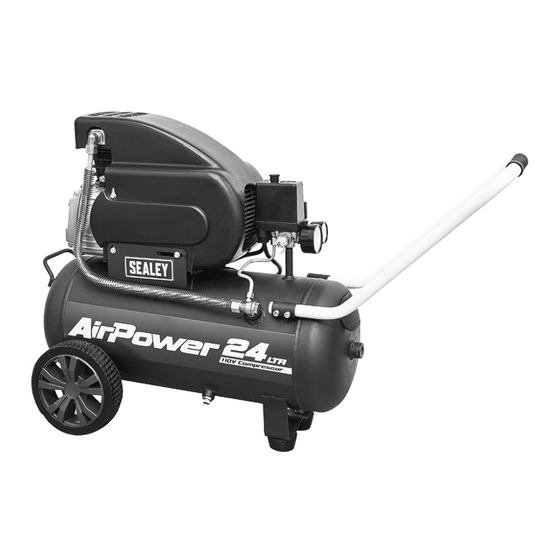

DIRECT DRIVE AIR COMPRESSOR,
24L, 2HP, 110V
SAC2420E110V.V4
MODEL NO:
Warning: Warning:
Electricity Hot surface
Original Language Version
Wear ear Indoor Check oil level
protection use only
DO NOT
before open air cock
first use before air hose
attached
SAC2420E110V.V4 Issue 2 18/04/24
Wear eye
protection
