Sealey SAC1276B Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE THE
PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL
INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Warning:
Instructions Electricity
1. SAFETY
1.1. ELECTRICAL SAFETY
WARNING! It is the user's responsibility to check the following:
‰
Ensure that any faulty item is repaired or replaced immediately by a qualified electrician.
9
Check all electrical equipment and appliances to ensure that they are safe before using.
9
Inspect power supply leads, plugs and all electrical connections for wear and damage.
9
Sealey recommend that an RCD (Residual Current Device) is used with all electrical products.
9
If the product is used for business, it must be maintained in a safe condition and routinely PAT (Portable Appliance Test) tested.
9
Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
9
Ensure that the voltage rating on the appliance suits the power supply to be used and that the plug is fitted with the correct fuse - see
9
fuse rating in these instructions.
DO NOT pull or carry the appliance by the power cable.
8
DO NOT pull the plug from the socket by the cable. Remove the plug from the socket by maintaining a firm grip on the plug.
8
DO NOT use worn or damaged cables, plugs or connectors.
8
A 32A supply is required. We recommend that a 32A industrial round pin plug should be fitted and connected to a 32A supply having a
9
Type C breaker. If in doubt, you must contact a qualified electrician to ensure that a suitably rated supply is available.
Note: The use of extension leads to connect these compressors to the mains is not recommended as the resulting voltage drop reduces
motor, and therefore pump performance.
1.2. GENERAL SAFETY
WARNING! Compressor must only be serviced by an authorised agent.
‰
DO NOT tamper with, or attempt to adjust, pressure switch or safety valve.
8
Familiarise yourself with the application and limitations of the compressor.
9
Ensure the compressor is in good order and condition before use.
9
If in any doubt do not use the unit and contact an electrician/service agent.
9
Before moving/maintaining the compressor ensure it is unplugged from the mains supply and that the air tank pressure has been vented.
9
Maintain the compressor in good condition and replace any damaged or worn parts. Use genuine parts only. Unauthorised parts may be
9
dangerous and will invalidate your warranty.
Read the instructions relating to any accessory to be used with this compressor.
9
Ensure the safe working pressure of any air appliance used exceeds compressors output pressure. If using a spray gun, check that the
9
area selected for spraying is provided with an air change system/ventilation.
Ensure the air supply valve is turned off before disconnecting the air supply hose.
9
Use the compressor in a well ventilated area and ensure it is placed on a firm surface.
9
Keep tools and other items away from the compressor when it is in use, and keep area clean and clear of unnecessary items.
9
Ensure the air hose is not tangled, twisted or pinched.
9
Keep children and unauthorised persons away from the working area.
9
DO NOT disassemble compressor for any reason. The unit must be checked by qualified personnel only.
8
DO NOT use the compressor outdoors, or in damp, or wet, locations.
8
DO NOT operate within the vicinity of flammable liquids, gases or solids.
8
DO NOT touch compressor cylinder, cylinder head, or pipe from head to tank as these may be hot.
8
DO NOT use this product to perform a task for which it has not been designed.
8
DO NOT deface the certification plate attached to the compressor tank.
8
DO NOT cover the compressor or restrict air flow around the unit whilst operating.
8
DANGER! DO NOT direct the output jet of air towards people or animals.
▲
DO NOT operate the compressor without an air filter.
8
DO NOT allow anyone to operate the compressor unless they have received full instructions.
8
WARNING! The air tank is a pressure vessel and the following safety measures apply:
‰
DO NOT tamper with the safety valve, DO NOT modify or alter the tank in any way and DO NOT strap anything to the tank.
8
DO NOT subject the tank to impact, vibration or to heat, and DO NOT allow contact with abrasives or corrosives.
8
Drain condensation from tank and inspect inside walls for corrosion as per the maintenance schedule and have a detailed tank inspection
9
carried out annually. The tank shell must not fall below the certified thickness at any point.
WARNING! If an electrical fuse blows, ensure it is replaced with an identical fuse type and rating.
‰
When not in use for a prolonged period, and if possible, store the compressor carefully in a safe, dry, childproof location.
9
When the compressor is not in use, it should be switched off, isolated from the mains supply and the air drained from the tank.
9
© Jack Sealey Limited

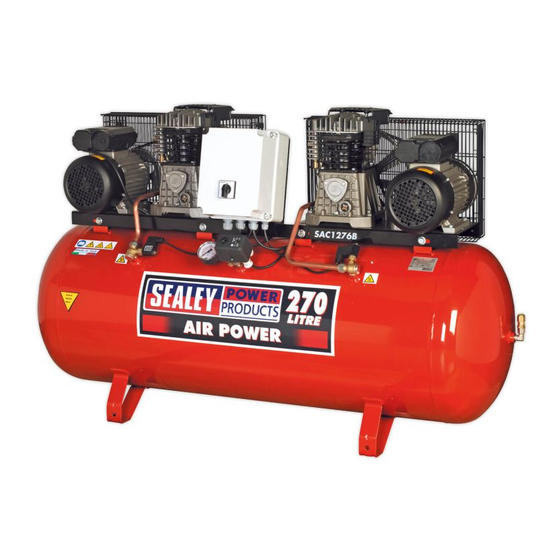

270L BELT DRIVE AIR COMPRESSOR 2 X 3HP
WITH CAST CYLINDERS
SAC1276B, SAC2276B.V2
MODEL NO:
Warning: Warning:
Hot Surface Automatic
Start-up
Original Language Version
Wear ear
protection
SAC1276B, SAC2276B Issue 5 (ALL) 18/08/23
