Transient Modules 2M Build Manual page 6

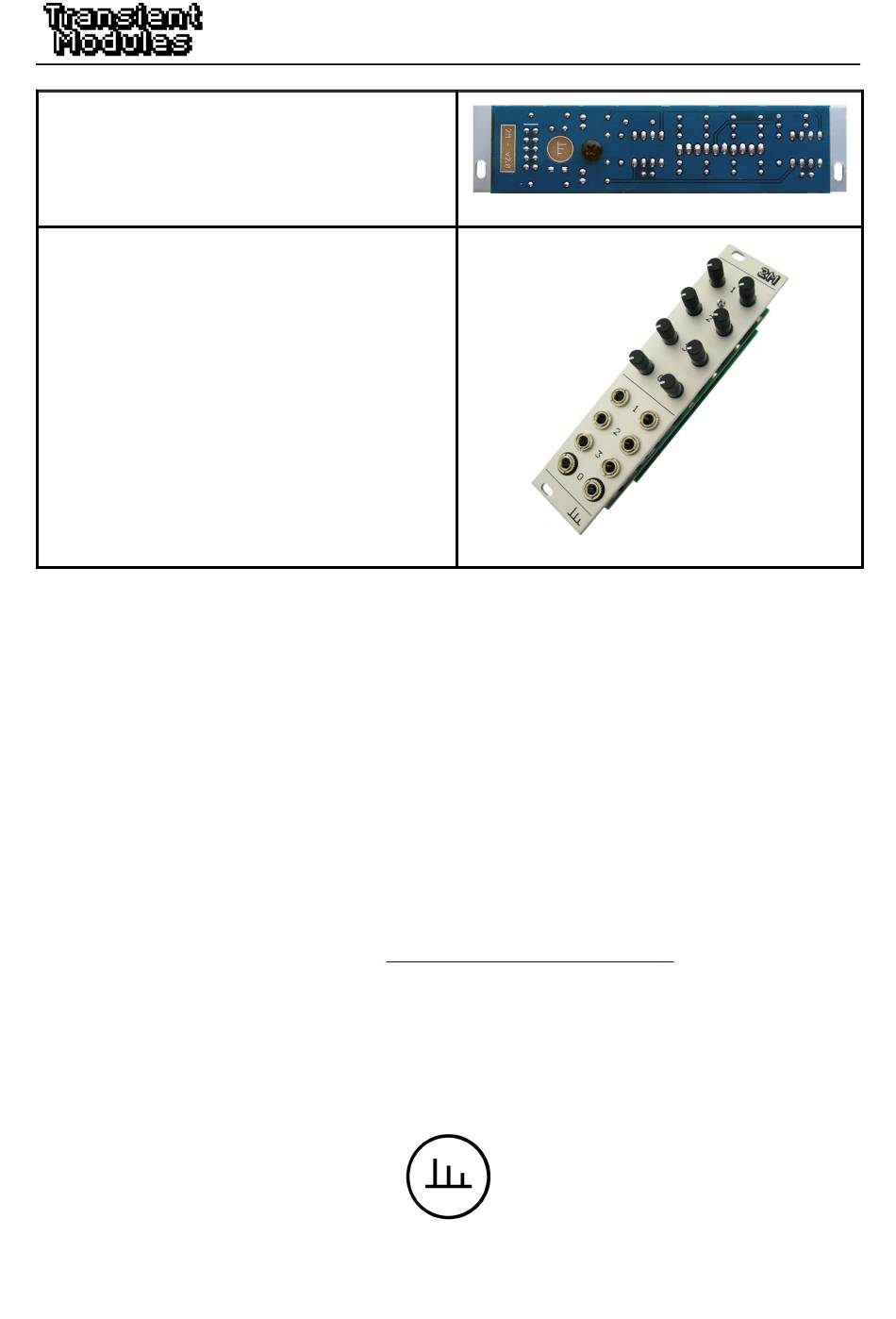

24. Join the front PCB and the back PCB
using the pin headers and ensuring the
3mm hole match the spacer. Screw both
boards with the last M3 black screw.
25. Connect the ribbon cable. The red
stripe on the cable must line up with the
white line on the module's power
connector.
: ) Module fnished!
Check that all the inputs and both outputs
are working correctly, as well as the
normalization between the mixers in case
you did it.
Do you have any suggestions to make the build process better? *
Were you soldering slighlty drunk and did a mess? *
If everything went fine: We hope you had some fun while building it,
congratulations, patch wisely and
And...
: )
Something is not working as it should? *
Did you like the build manual? *
Had problems during the build process? *
Are you missing any part? *
Then, write us to: contact@transientmodules.com
2M DIY kit build manual - Version 2.0
