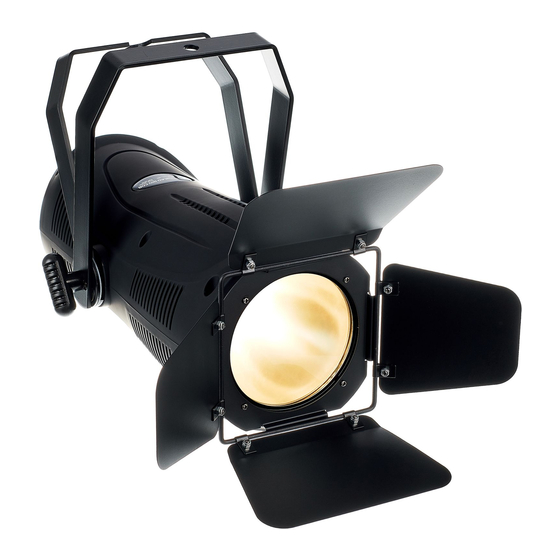

thomann Stairville RevueLED 120 COB RGBW DMX User Manual

Led spotlight
Hide thumbs Also See for Stairville RevueLED 120 COB RGBW DMX:
Table of Contents

Advertisement

Quick Links

RevueLED 120 COB
RGBW DMX
LED spotlight
user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Stairville RevueLED 120 COB RGBW DMX and is the answer not in the manual?

Questions and answers

Related Manuals for thomann Stairville RevueLED 120 COB RGBW DMX

Summary of Contents for thomann Stairville RevueLED 120 COB RGBW DMX

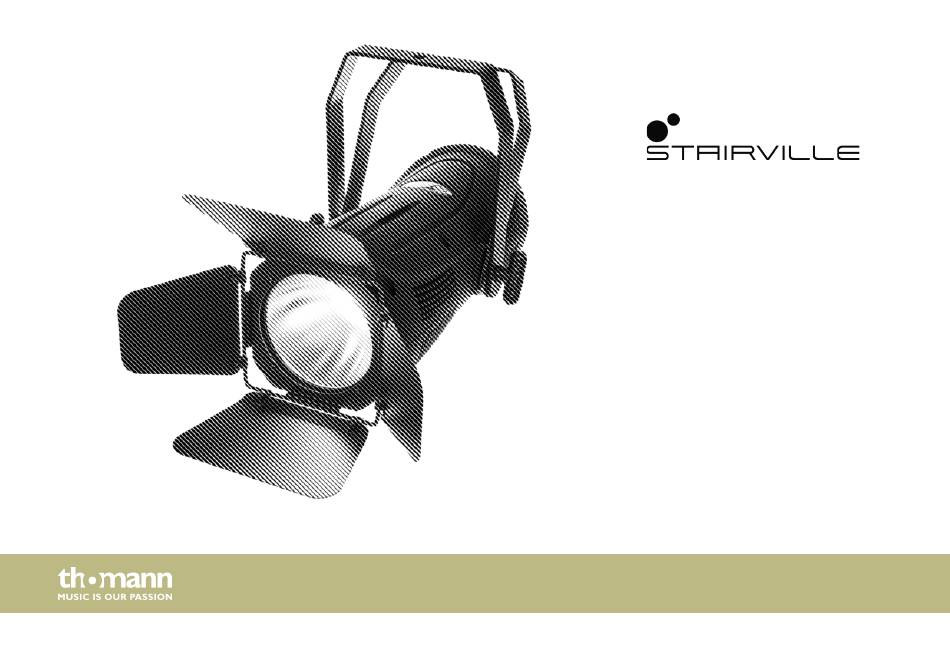

  • Page 1 RevueLED 120 COB RGBW DMX LED spotlight user manual...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 18.11.2019, ID: 414200 (V2)

  • Page 3: Table Of Contents

    Table of contents Table of contents General information..........................5 1.1 Further information........................... 6 1.2 Notational conventions........................7 1.3 Symbols and signal words....................... 8 Safety instructions..........................11 Features............................... 18 Installation..............................19 Starting up..............................23 Connections and controls........................26 Operating..............................29 7.1 Menu overview..........................33 7.2 Functions in DMX mode........................
  • Page 4 Table of contents Troubleshooting............................40 Cleaning............................... 42 Protecting the environment......................43 LED spotlight...

  • Page 5: General Information

    Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. RevueLED 120 COB RGBW DMX...

  • Page 6: Further Information

    General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly.

  • Page 7: Notational Conventions

    General information 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. Displays Texts and values displayed on the device are marked by quotation marks and italics. Examples: ‘24ch’...

  • Page 8: Symbols And Signal Words

    General information Instructions The individual steps of an instruction are numbered consecutively. The result of a step is indented and highlighted by an arrow. Example: Switch on the device. Press [Auto]. ð Automatic operation is started. Switch off the device. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual.
  • Page 9 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
  • Page 10 General information Warning signs Type of danger Warning – suspended load. Warning – danger zone. LED spotlight...

  • Page 11: Safety Instructions

    Safety instructions Safety instructions Intended use This device is intended for use as an electronic lighting effect by means of LED technology. The device is designed for professional use and is not suitable for use in households. Use the device only as described in this user manual. Any other use or use under other operating con‐ ditions is considered to be improper and may result in personal injury or property damage.
  • Page 12 Safety instructions Safety DANGER! Danger for children Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit.
  • Page 13 Safety instructions DANGER! Electric shock caused by short-circuit Always use proper ready-made insulated mains cabling (power cord) with a pro‐ tective contact plug. Do not modify the mains cable or the plug. Failure to do so could result in electric shock/death or fire. If in doubt, seek advice from a regis‐ tered electrician.
  • Page 14 Safety instructions NOTICE! Risk of fire Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames. LED spotlight...
  • Page 15 Safety instructions NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. Only operate the device within the ambient conditions specified in the chapter ‘Technical specifications’...
  • Page 16 Safety instructions NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the user.
  • Page 17 Safety instructions NOTICE! Possible staining The plasticiser contained in the rubber feet of this product may possibly react with the coating of your parquet, linoleum, laminate or PVC floor and after some time cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the floor, but use felt-pad floor protectors or a carpet.

  • Page 18: Features

    Features Features LED spotlight for very large-area and uniform lighting in showrooms or workshops, trade show booths, etc. LED configuration: 1 × COB RGBW LED Beam angle: 50° Replacement for 575 W daylight lamps Control via DMX and via buttons and display on the unit Power Twist connectors for self-supply and for supplying further devices sturdy double bracket for secure attachment to trusses or firm footing on the ground For technological reasons, the light output of LEDs decreases over their lifetime.

  • Page 19: Installation

    Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
  • Page 20 Installation NOTICE! Risk of overheating The distance between light output and the illuminated surface must be more than 1.5 m (19.7in). Provide sufficient ventilation. The ambient temperature must always be below 40 °C (104 °F). NOTICE! Use of stands When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand.
  • Page 21 Installation NOTICE! Possible data transmission errors For error-free operation make use of dedicated DMX cables and do not use ordi‐ nary microphone cables. Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. Mounting options You can install the unit in hanging or standing position.
  • Page 22 Installation Please note that this device must not be connected to a dimmer. LED spotlight...

  • Page 23: Starting Up

    Starting up Starting up Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. RevueLED 120 COB RGBW DMX...
  • Page 24 Starting up Connections in DMX mode Connect the DMX input of the device to the DMX output of a DMX controller or another DMX device. Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain.
  • Page 25 Starting up Connections in master/slave When you configure a group of devices in master/slave mode, the first unit will control the mode other units for an automatic, sound-activated, synchronized show. This function is ideal when you want to start a show immediately. Connect the DMX output of the master device to the DMX input of the first slave device.

  • Page 26: Connections And Controls

    Connections and controls Connections and controls LED spotlight...
  • Page 27 Connections and controls 1 Two-piece bracket for hanging or installation and for securing the safety-rope. 2 Barn doors for directing the light beam. 3 LED 4 [DMX IN]: DMX input socket [DMX OUT]: DMX output socket 5 [Power In]: Power-Twist connector for the power supply of the device. [Power Out]: Power-Twist connector for the voltage supply of a connected device.
  • Page 28 Connections and controls 7 Locking screw for fixing the spotlight. 8 Safety cable eyelet LED spotlight...

  • Page 29: Operating

    Operating Operating Connect the device to the power supply to start operation. Operating mode DMX This setting is only relevant if the device is controlled via a DMX controller. Use [UP] or [DOWN] to select the menu option ‘DMX’ and confirm with [ENTER]. Use [UP] and [DOWN] to assign a DMX address in the range from ‘A001’...
  • Page 30 Operating Operating mode Auto In this mode, the device projects programmed patterns automatically onto a surface. Use [UP] or [DOWN] to select the menu option ‘Auto’ and confirm with [ENTER]. Use [UP] and [DOWN] to specify the speed of the automatic programme ( ‘AU00’...
  • Page 31 Operating Fixed colour In this menu, you have the option to specify a certain fixed colour. Use [UP] or [DOWN] to select the menu option ‘Color Set’ and confirm with [ENTER]. Use [UP] and [DOWN] to enable the desired Sound mode ( ‘F100’ … ‘F114’ ) and confirm with [ENTER].
  • Page 32 Operating Preset dimmer green In this menu, you have the option to adjust the dimmer settings for the colour green. This set‐ ting is only relevant if the device is not controlled via a DMX controller. Use [UP] or [DOWN] to select the menu option ‘Green Dimmer’ and confirm with [ENTER]. Use [UP] and [DOWN] to specify the intensity of the colour green in a range from ‘g000’...

  • Page 33: Menu Overview

    Operating 7.1 Menu overview RevueLED 120 COB RGBW DMX...

  • Page 34: Functions In Dmx Mode

    Operating 7.2 Functions in DMX mode Channel Value Function 0 … 255 Intensity red (0 % to 100 %) 0 … 255 Intensity green (0 % to 100 %) 0 … 255 Intensity blue (0 % to 100 %) 0 … 255 Intensity white (0 % to 100 %) 0 …...

  • Page 35: Technical Specifications

    Technical specifications Technical specifications RevueLED 120 COB RGBW DMX...
  • Page 36 Technical specifications Light source 1 × COB LED RGBW, 120 W Light source properties Colour temperature 3000 K Colour rendering index 93 CRI Ra Optical properties Beam angle 50° Refresh rate 8000 Hz Control Buttons and display on the unit Number of DMX channels Input connections Power supply...
  • Page 37 Technical specifications Supply voltage 100 – 240 V 50/60 Hz Fuse 5 mm × 20 mm, 2 A, 250 V, slow-blow Degree of protection IP20 Mounting options Hanging, standing Dimensions (W × H × D) 258 mm × 164 mm × 557 mm Weight 5.5 kg Ambient conditions...
  • Page 38 Technical specifications Wireless DMX Housing colour Black LED spotlight...

  • Page 39: Plug And Connection Assignments

    Plug and connection assignments Plug and connection assignments Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment so that a perfect light experience is guaranteed. Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a short circuit or ‘just’...
  • Page 40 Troubleshooting Troubleshooting NOTICE! Possible data transmission errors For error-free operation make use of dedicated DMX cables and do not use ordi‐ nary microphone cables. Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. In the following we list a few common problems that may occur during operation.
  • Page 41 DMX interface circuits. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. RevueLED 120 COB RGBW DMX...
  • Page 42 Cleaning Cleaning Optical lenses Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the light output. The frequency of cleaning depends on the operating environment: wet, smoky or particularly dirty surroundings can cause more accumulation of dirt on the optics of the device.
  • Page 43 Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 44 Notes LED spotlight...
  • Page 45 Notes RevueLED 120 COB RGBW DMX...
  • Page 46 Notes LED spotlight...
  • Page 48 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
