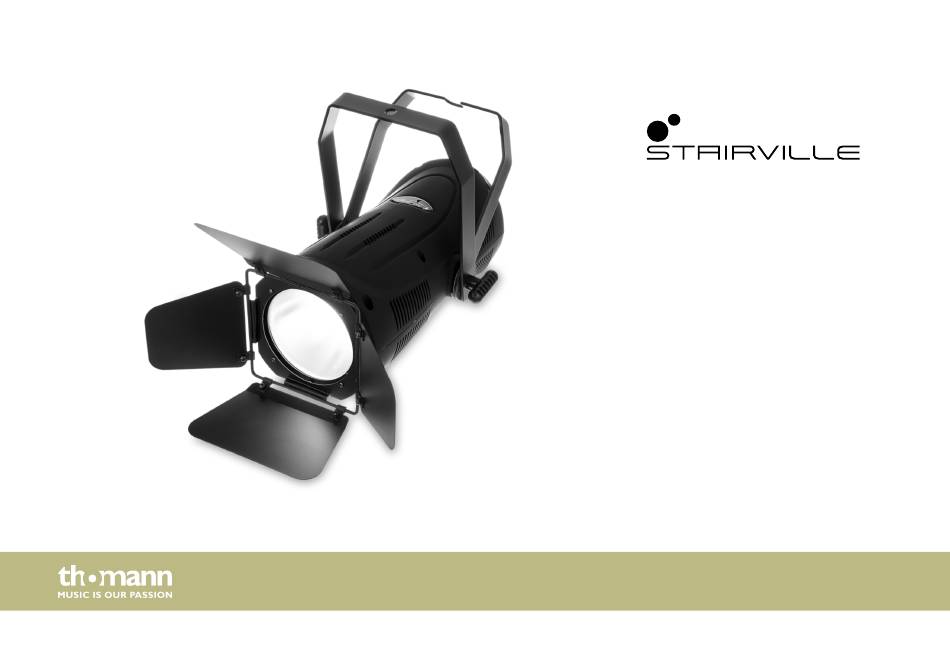

- Page 1 RevueLED 120 COB DMX LED spotlight user manual...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 24.03.2022, ID: 393346, 393504 (V4)
-
Page 3: Table Of Contents
Table of contents Table of contents General information..........................5 1.1 Further information........................... 6 1.2 Notational conventions........................7 1.3 Symbols and signal words....................... 8 Safety instructions..........................11 Features............................... 15 Installation..............................16 Starting up..............................20 Connections and controls........................23 Operating..............................26 Technical specifications........................28 Plug and connection assignments.................... - Page 4 Table of contents Protecting the environment......................36 LED spotlight...
-
Page 5: General Information
Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. RevueLED 120 COB DMX... -
Page 6: Further Information
General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly. -
Page 7: Notational Conventions
General information 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. Displays Texts and values displayed on the device are marked by quotation marks and italics. Examples: ‘24ch’... -
Page 8: Symbols And Signal Words
General information Instructions The individual steps of an instruction are numbered consecutively. The result of a step is indented and highlighted by an arrow. Example: Switch on the device. Press [Auto]. ð Automatic operation is started. Switch off the device. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. - Page 9 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
- Page 10 General information Warning signs Type of danger Warning – suspended load. Warning – danger zone. LED spotlight...
-
Page 11: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended for use as an electronic lighting effect by means of LED technology. The device is designed for professional use only and is not suitable for use in households. Use the device only as described in this user manual. - Page 12 Safety instructions Safety DANGER! Danger for children Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and choke! Never let children unattended use electrical devices.
- Page 13 Safety instructions WARNING! Risk of epileptic shock Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights. NOTICE! Risk of fire Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames. NOTICE! Risk of fire and overheating The use with closed barn doors can cause fire or overheating in the spotlight.
- Page 14 Safety instructions NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the user.
-
Page 15: Features

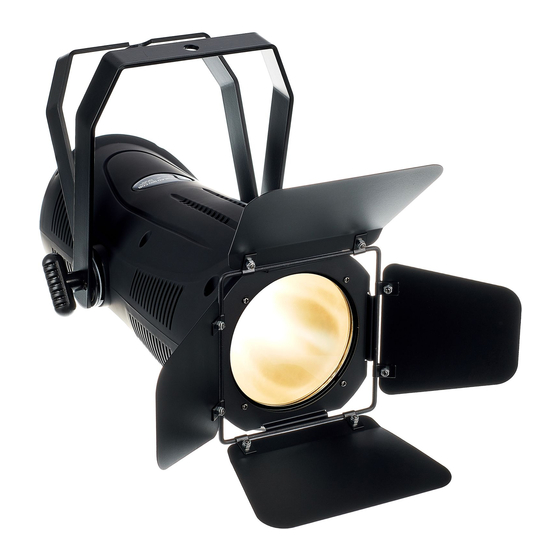

Features Features LED spotlight for very large-area and uniform lighting in showrooms or workshops, trade show booths, etc. LED configuration – RevueLED 120 COB 3200K DMX with 1 COB LED in warm white – RevueLED 120 COB 7000K DMX with 1 COB LED in cold white Replacement for 575 W daylight lamps Control via DMX and via buttons and display on the unit Lockable connectors (Power Twist) for self-supply and for supplying further devices... -
Page 16: Installation
Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. - Page 17 Installation NOTICE! Risk of overheating The distance between light output and the illuminated surface must be more than 1.5 m (19.7in). Provide sufficient ventilation. The ambient temperature must always be below 40 °C (104 °F). NOTICE! Use of stands When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand.
- Page 18 Installation NOTICE! Possible data transmission errors For error-free operation make use of dedicated DMX cables and do not use ordi‐ nary microphone cables. Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. Mounting options You can install the unit in hanging or standing position.
- Page 19 Installation Please note that this device must not be connected to a dimmer. RevueLED 120 COB DMX...
-
Page 20: Starting Up
Starting up Starting up Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. LED spotlight... - Page 21 Starting up Connections in DMX mode Connect the DMX input of the device to the DMX output of a DMX controller or another DMX device. Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain.
- Page 22 Starting up Connections in master/slave When you configure a group of devices in master/slave mode, the first unit will control the mode other units for an automatic, sound-activated, synchronized show. This function is ideal when you want to start a show immediately. Connect the DMX output of the master device to the DMX input of the first slave device.
-
Page 23: Connections And Controls
Connections and controls Connections and controls ö DMX INPUT DMX OUTPUT POWER OUT POWER IN F2AL250V [[[[ MENU DOWN ENTER & RevueLED 120 COB DMX... - Page 24 Connections and controls 1 Two-piece bracket for hanging or installation and for securing the safety-rope. 2 Barn doors for directing the light beam. 3 LED 4 [DMX IN]: DMX input socket [DMX OUT]: DMX output socket 5 [Power In]: Lockable input socket (Power Twist) to supply a connected unit. [Power Out]: Lockable output socket (Power Twist) to supply a connected unit.
- Page 25 Connections and controls 7 Locking screw for fixing the spotlight. 8 Safety cable eyelet RevueLED 120 COB DMX...
-
Page 26: Operating
Operating Operating Connect the device to the power supply to start operation. Operating mode ‘DMX’ This setting is only relevant if the device is controlled via a DMX controller. Press [Enter], use [Up] or [Down] to select the menu option ‘DMX’ and confirm with [Enter]. - Page 27 Operating Operating mode ‘Stroboscope’ This setting is only relevant if the device is not controlled via a DMX controller. Press [Enter], use [Up] or [Down] to select the menu option ‘Strobe’ and confirm with [Enter]. Press [Menu] to close the menu without making any changes. Use [Up] and [Down] to specify the flash frequency for the Strobe effect in a range from ‘ST00’...
-
Page 28: Technical Specifications
Technical specifications Technical specifications DMX INPUT DMX OUTPUT POWER OUT POWER IN F2AL250V [[[[ MENU DOWN ENTER 258 mm 537 mm LED spotlight... - Page 29 Technical specifications Item no. 393346 Item no. 393504 RevueLED 120 COB 3200K DMX RevueLED 120 COB 7000K DMX Light source 1 × COB LED, warm white, 120 W 1 × COB LED, cold white, 120 W Light source properties Colour temperature 3200 K 7000 K Optical properties...
- Page 30 Technical specifications Item no. 393346 Item no. 393504 RevueLED 120 COB 3200K DMX RevueLED 120 COB 7000K DMX Power consumption 150 W Supply voltage 100 - 240 V 50/60 Hz Fuse 5 mm × 20 mm, 2 A, 250 V, slow-blow Degree of protection IP20 Mounting options...
- Page 31 Technical specifications Further information Item no. 393346 Item no. 393504 RevueLED 120 COB 3200K DMX RevueLED 120 COB 7000K DMX Fanless RevueLED 120 COB DMX...
-
Page 32: Plug And Connection Assignments
Plug and connection assignments Plug and connection assignments Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment so that a perfect light experience is guaranteed. Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a short circuit or ‘just’... -
Page 33: Troubleshooting
Troubleshooting Troubleshooting NOTICE! Possible data transmission errors For error-free operation make use of dedicated DMX cables and do not use ordi‐ nary microphone cables. Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. In the following we list a few common problems that may occur during operation. - Page 34 4. Check to see if the DMX cables run near or alongside to high voltage cables that may cause damage or interfer‐ ence to DMX interface circuits. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. LED spotlight...
-
Page 35: Cleaning
Cleaning Cleaning Optical lenses Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the light output. The frequency of cleaning depends on the operating environment: wet, smoky or particularly dirty surroundings can cause more accumulation of dirt on the optics of the device. - Page 36 Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
- Page 37 Notes RevueLED 120 COB DMX...
- Page 38 Notes LED spotlight...
- Page 40 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
