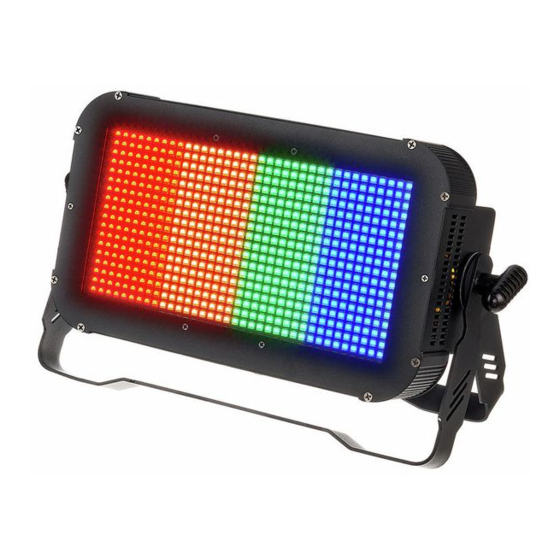

Wild Wash Pro 648 RGBW
LED Spotlight

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STAIRVILLE Wild Wash Pro 648 RGBW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for thomann STAIRVILLE Wild Wash Pro 648 RGBW

Summary of Contents for thomann STAIRVILLE Wild Wash Pro 648 RGBW

  • Page 1 Wild Wash Pro 648 RGBW LED Spotlight...
  • Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 19.10.2023, ID: 467447 (V2)

  • Page 3: Table Of Contents

    Table of contents Table of contents General information..........................6 1.1 Symbols and signal words....................... 6 Safety instructions............................. 9 Features............................... 13 Installation..............................14 Starting up..............................17 Connections and controls........................19 Operating..............................21 7.1 Starting the device........................... 21 7.2 Navigating the menu........................21 7.3 Main menu............................
  • Page 4 Table of contents 7.12 Functions in DMX mode 9Ch-1....................51 7.13 Functions in DMX mode 9Ch-2....................54 7.14 Functions in DMX mode 16Ch....................57 7.15 Functions in DMX mode 21Ch-1....................59 7.16 Functions in DMX mode 21Ch-2....................63 Technical specifications........................67 Plug and connection assignment....................
  • Page 5 Wild Wash Pro 648 RGBW LED Spotlight...

  • Page 6: General Information

    Our products and documentation are subject to a process of continuous development. They are therefore subject to change. Please refer to the latest version of the documentation, which is ready for download under www.thomann.de. 1.1 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this document.
  • Page 7 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
  • Page 8 General information Warning signs Type of danger Warning – danger zone. Wild Wash Pro 648 RGBW LED Spotlight...

  • Page 9: Safety Instructions

    Safety instructions Safety instructions Intended use This device is intended for use as an electronic lighting effect by means of LED technology. The device is designed for professional use only and is not suitable for use in households. Use the device only as described in this user manual.
  • Page 10 Safety instructions DANGER! Danger to life due to electric current! Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. Do not use the device when covers, safety equipment or optical components are missing or damaged. DANGER! Danger to life due to electric current! A short circuit could lead to a fire hazard and risk of death.
  • Page 11 Safety instructions NOTICE! Damage to the device if operated in unsuitable ambient conditions! The device can be damaged if it is operated in unsuitable ambient conditions. Only operate the device indoors within the ambient conditions specified in the “Technical specifications” chapter of this user manual. Avoid operating it in environments with direct sun‐ light, heavy dirt and strong vibrations.
  • Page 12 Safety instructions NOTICE! Risk of fire due to installation of a wrong fuse! Using fuses of a different type than compatible with the device may cause a fire and seriously damage the device. Only use fuses of the same type. Observe the labelling on the device casing and the information in the "Technical data” chapter. NOTICE! Possible staining due to plasticiser in rubber feet! The plasticiser contained in the rubber feet of this product may react with the coating of the floor and cause permanent dark stains...

  • Page 13: Features

    Features Features The LED spotlight is particularly suitable for lighting applications in clubs, night clubs, on rock stages, in theatres and musicals. It can also be used for effect lighting of stage backgrounds, as a strobe and as a blinder. Special features of the device: Equipped with 648 4-in-1 RGBW SMD LEDs Four individually controllable segments...

  • Page 14: Installation

    Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
  • Page 15 Installation NOTICE! Risk of overheating and fire due to inadequate distance and bad ventilation! If the distance between the light source and the illuminated surface is too short or the device is badly ventilated, the device can overheat and cause fires. Make sure that illuminated surfaces are more than 2 m away.
  • Page 16 Installation Please note that this device must not be connected to a dimmer. Wild Wash Pro 648 RGBW LED Spotlight...

  • Page 17: Starting Up

    Starting up Starting up Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. Connections in DMX mode Connect the DMX input of the device to the DMX output of a DMX controller or another DMX device.
  • Page 18 Starting up Connections in master/slave When you configure a group of devices in master/slave mode, the first unit will control the mode other units for an automatic, sound-activated, synchronized show. This function is ideal when you want to start a show immediately. Connect the DMX output of the master device to the DMX input of the first slave device.

  • Page 19: Connections And Controls

    Connections and controls Connections and controls & ö ö Wild Wash Pro 648 LED RGBW Wild Wash Pro 648 RGBW LED Spotlight...
  • Page 20 Connections and controls 1 Locking screw for fixing the spotlight 2 [FUSE] | Fuse holder 3 [POWER IN] | Lockable input socket (Power Twist) for the power supply of the device [POWER OUT] | Lockable output socket (Power Twist) for powering a connected device. Max. output current for devices connected in series: 16 A 4 Two-piece bracket for hanging or floor setup 5 [MIC] | Microphone for sound control...

  • Page 21: Operating

    Operating Operating 7.1 Starting the device Connect the device to the power supply to start operation. ð The display shows the start screen with the last set operating parameters. The device is operational. 7.2 Navigating the menu Press [MENU] to activate the main menu. Press [UP] or [DOWN] to select a submenu or value.

  • Page 22: Main Menu

    Operating 7.3 Main menu Setting the DMX address This setting is only relevant if the device is controlled via a DMX controller. Press [MENU] to activate the main menu. Press [UP] or [DOWN] until the display shows ‘Dmx Address’ and confirm the selection with [ENTER].
  • Page 23 Operating Setting operating mode "DMX" This setting is only relevant if the device is controlled via a DMX controller. Press [MENU] to activate the main menu. Press [UP] or [DOWN] until the display shows ‘Dmx Mode’ and confirm the selection with [ENTER].
  • Page 24 Operating Menu level 2 Description ‘21CH1’ 21-channel mode, variant 1 ‘21CH2’ 21-channel mode, variant 2 Wild Wash Pro 648 RGBW LED Spotlight...
  • Page 25 Operating Operating mode "Stand Alone" This setting is only relevant if the device is not controlled via a DMX controller and not working as slave in a master / slave configuration. In this operating mode, the automatic programmes, colours and colour changes can be set. Press [MENU] to activate the main menu.
  • Page 26 Operating Menu level 2 Menu level 3 Description ‘Jump’ Colour change ‘Dimmer 000…255’ Intensity of LEDs from 0 % to 100 % ‘Speed 000…010’ Running speed from slow to fast ‘Colour Macro’ Selection of a basic colour or a preset mixed colour ‘C.M Color Off’...
  • Page 27 Operating Menu level 2 Menu level 3 Description ‘C.M Pink’ Pink ‘C.M Warm White’ Warm white ‘C.M White’ White ‘C.M Cold White’ Cold white ‘User Color’ Setting an individual mixed colour ‘Dimmer 000…255’ Intensity of LEDs from 0 % to 100 % ‘Strobe 000…255’...
  • Page 28 Operating Menu level 2 Menu level 3 Description ‘CCT 3500 K’ Colour temperature 3500 K ‘CCT 4000 K’ Colour temperature 4000 K ‘CCT 4500 K’ Colour temperature 4500 K ‘CCT 5000 K’ Colour temperature 5000 K ‘CCT 5600 K’ Colour temperature 5600 K ‘CCT 6000 K’...
  • Page 29 Operating Setting operating mode "Slave" This setting is only relevant if the device is not controlled via a DMX controller. Press [MENU] to activate the main menu. Press [UP] or [DOWN] until the display shows ‘Slave’ and confirm the selection with [ENTER].
  • Page 30 Operating System settings Press [MENU] to activate the main menu. Press [UP] or [DOWN] until the display shows ‘System Setting’ and confirm the selection with [ENTER]. Press [UP] or [DOWN] to select the desired submenu and confirm the selection with [ENTER].
  • Page 31 Operating Menu level 2 Menu level 3 Description ‘Freq 3600Hz’ 3600 Hz ‘Freq 12KHz’ 12 kHz ‘Freq 25KHz’ 25 kHz ‘Dimmer Curve’ Setting the dimmer curve ‘Curve Linear’ Linear course ‘Curve Exponential’ Exponential course ‘Logarithmic’ Logarithmic course ‘S Curve’ S-curve shaped course ‘Dimmer Response’...
  • Page 32 Operating Menu level 2 Menu level 3 Description ‘Blue 000…255’ Setting the blue proportion ‘White 000…255’ Setting the white proportion ‘Display Reverse’ Display reversion ‘Reverse On’ The display of the device is rotated by 180 °. ‘Reverse OFF’ The display of the device is in the standard orientation.
  • Page 33 Operating Menu level 2 Menu level 3 Description ‘Factory Reset’ Resetting the device to factory settings ‘Reset No’ The device settings remain unchanged. ‘Reset Yes’ The device is reset to factory default settings. Wild Wash Pro 648 RGBW LED Spotlight...
  • Page 34 Operating System information Press [MENU] to activate the main menu. Press [UP] or [DOWN] until the display shows ‘System Info’ and confirm the selection with [ENTER]. Press [UP] or [DOWN] to select the desired submenu and confirm the selection with [ENTER].

  • Page 35: Menu Overview

    Operating 7.4 Menu overview DMX Address DMX Mode Stand Alone Address 001 Auto Color Macro User Color Dimmer 000 - 255 Color O Dimmer 000 - 255 Address 512 2CH1 Speed 000 - 100 Strobe 000 - 255 Amber C.M Yellow warm 2CH2 Sound Red 000 - 255...

  • Page 36: Functions In Dmx Mode 1Ch

    Operating Stand Alone Slave System Setting System Info Tunable White Slave DMX Fail Dimmer Curve Display Reverse Firmware V1.0 3000 Slave Yes Dmx Fail Hold Curve Linear Reverse Temp xx/C 3200 Slave No Dmx Fail Blackout Curve Reverse Op.Hours xxxxxH 3500 Dmx Fail Em.Lt...
  • Page 37 Operating Channel Value Function 006 … 010 LEDs off (blackout) 011 … 033 Impulses, increasing speed 034 … 056 Increasing brightness, increasing speed 057 … 0079 Decreasing brightness, increasing speed 080 … 102 Random Strobe effect, increasing speed 103 … 127 Burst strobe, 5 s to 1 s 128 …...

  • Page 38: Functions In Dmx Mode 2Ch-1

    Operating 7.6 Functions in DMX mode 2Ch-1 Channel Value Function 000… 255 Dimmer (0 % to 100 %) Colour macro 000 … 005 LEDs off (blackout) 006 … 013 014 … 021 Amber 022 … 029 Warm yellow 030 … 037 Yellow 038 …...
  • Page 39 Operating Channel Value Function 094 … 101 Pink 102 … 109 Warm white 110 … 117 White 118 … 125 Cold white 126 … 128 129 … 192 Colour change from colour 1 to colour 12, speed increasing 193 … 255 Gradual colour change from colour 1 to colour 12, speed increasing Wild Wash Pro 648 RGBW LED Spotlight...

  • Page 40: Functions In Dmx Mode 2Ch-2

    Operating 7.7 Functions in DMX mode 2Ch-2 Channel Value Function 000… 255 Dimmer (0 % to 100 %) Strobe 000 … 005 LEDs on 006 … 010 LEDs off (blackout) 011 … 033 Impulses, increasing speed 034 … 056 Increasing brightness, increasing speed 057 …...

  • Page 41: Functions In Dmx Mode 3Ch

    Operating 7.8 Functions in DMX mode 3Ch Channel Value Function 000… 255 Dimmer (0 % to 100 %) Strobe 000 … 005 LEDs on 006 … 010 LEDs off (blackout) 011 … 033 Impulses, increasing speed 034 … 056 Increasing brightness, increasing speed 057 …...

  • Page 42: Functions In Dmx Mode 4Ch

    Operating 7.9 Functions in DMX mode 4Ch Channel Value Function 000… 255 Intensity red (0 % to 100 %) 000… 255 Intensity green (0 % to 100 %) 000… 255 Intensity blue (0 % to 100 %) 000… 255 Intensity white (0 % to 100 %) Wild Wash Pro 648 RGBW LED Spotlight...

  • Page 43: Functions In Dmx Mode 5Ch

    Operating 7.10 Functions in DMX mode 5Ch Channel Value Function 0 … 255 Dimmer (0 % to 100 %) Strobe 000 … 005 LEDs on 006 … 010 LEDs off (blackout) 011 … 033 Impulses, increasing speed 034 … 056 Increasing brightness, increasing speed 057 …...
  • Page 44 Operating Channel Value Function 035… 048 Pattern 2 049… 060 Pattern 3 061… 073 Pattern 4 074… 086 Pattern 5 087… 099 Pattern 6 100… 112 Pattern 7 113… 125 Pattern 8 126… 138 Pattern 9 139… 151 Pattern 10 152…...
  • Page 45 Operating Channel Value Function 243… 255 Pattern 18 Running speed dimmer patterns 000… 127 Change, increasing speed 128… 255 Gradual transient, increasing speed Colour macro 000 … 005 LEDs off (blackout) 006 … 013 014 … 021 Amber 022 … 029 Warm yellow 030 …...
  • Page 46 Operating Channel Value Function 086 … 093 Magenta 094 … 101 Pink 102 … 109 Warm white 110 … 117 White 118 … 125 Cold white 126 … 128 129 … 192 Colour change from colour 1 to colour 12, speed increasing 193 …...

  • Page 47: Functions In Dmx Mode 6Ch

    Operating 7.11 Functions in DMX mode 6Ch Channel Value Function 0 … 255 Dimmer (0 % to 100 %) Strobe 000 … 005 LEDs on 006 … 010 LEDs off (blackout) 011 … 033 Impulses, increasing speed 034 … 056 Increasing brightness, increasing speed 057 …...
  • Page 48 Operating Channel Value Function 035… 048 Pattern 2 049… 060 Pattern 3 061… 073 Pattern 4 074… 086 Pattern 5 087… 099 Pattern 6 100… 112 Pattern 7 113… 125 Pattern 8 126… 138 Pattern 9 139… 151 Pattern 10 152…...
  • Page 49 Operating Channel Value Function 243… 255 Pattern 18 Running speed dimmer patterns 000… 127 Change, increasing speed 128… 255 Gradual transient, increasing speed Colour macro 000 … 005 LEDs off (blackout) 006 … 013 014 … 021 Amber 022 … 029 Warm yellow 030 …...
  • Page 50 Operating Channel Value Function 086 … 093 Magenta 094 … 101 Pink 102 … 109 Warm white 110 … 117 White 118 … 125 Cold white 126 … 128 129 … 192 Colour change from colour 1 to colour 12, speed increasing 193 …...

  • Page 51: Functions In Dmx Mode 9Ch-1

    Operating 7.12 Functions in DMX mode 9Ch-1 Channel Value Function 0 … 255 Dimmer (0 % to 100 %) Strobe 000 … 005 LEDs on 006 … 010 LEDs off (blackout) 011 … 033 Impulses, increasing speed 034 … 056 Increasing brightness, increasing speed 057 …...
  • Page 52 Operating Channel Value Function 035… 048 Pattern 2 049… 060 Pattern 3 061… 073 Pattern 4 074… 086 Pattern 5 087… 099 Pattern 6 100… 112 Pattern 7 113… 125 Pattern 8 126… 138 Pattern 9 139… 151 Pattern 10 152…...
  • Page 53 Operating Channel Value Function 243… 255 Pattern 18 Running speed dimmer patterns 000… 127 Change, increasing speed 128… 255 Gradual transient, increasing speed 000… 255 Intensity red (0 % to 100 %) 000… 255 Intensity green (0 % to 100 %) 000…...

  • Page 54: Functions In Dmx Mode 9Ch-2

    Operating 7.13 Functions in DMX mode 9Ch-2 Channel Value Function 0 … 255 Dimmer (0 % to 100 %) Strobe 000 … 005 LEDs on 006 … 010 LEDs off (blackout) 011 … 033 Impulses, increasing speed 034 … 056 Increasing brightness, increasing speed 057 …...
  • Page 55 Operating Channel Value Function 000… 016 No function 017… 034 Pattern 1 035… 048 Pattern 2 049… 060 Pattern 3 061… 073 Pattern 4 074… 086 Pattern 5 087… 099 Pattern 6 100… 112 Pattern 7 113… 125 Pattern 8 126…...
  • Page 56 Operating Channel Value Function 217… 229 Pattern 16 230… 242 Pattern 17 243… 255 Pattern 18 Running speed dimmer patterns 000… 127 Change, increasing speed 128… 255 Gradual transient, increasing speed 000… 255 Intensity red (0 % to 100 %) 000…...

  • Page 57: Functions In Dmx Mode 16Ch

    Operating 7.14 Functions in DMX mode 16Ch Channel Value Function 000… 255 Intensity red, segment 1 (0 % to 100 %) 000… 255 Intensity green, segment 1 (0 % to 100 %) 000… 255 Intensity blue, segment 1 (0 % to 100 %) 000…...
  • Page 58 Operating Channel Value Function 000… 255 Intensity blue, segment 4 (0 % to 100 %) 000… 255 Intensity white, segment 4 (0 % to 100 %) Wild Wash Pro 648 RGBW LED Spotlight...

  • Page 59: Functions In Dmx Mode 21Ch-1

    Operating 7.15 Functions in DMX mode 21Ch-1 Channel Value Function 0 … 255 Dimmer (0 % to 100 %) Strobe 000 … 005 LEDs on 006 … 010 LEDs off (blackout) 011 … 033 Impulses, increasing speed 034 … 056 Increasing brightness, increasing speed 057 …...
  • Page 60 Operating Channel Value Function 035… 048 Pattern 2 049… 060 Pattern 3 061… 073 Pattern 4 074… 086 Pattern 5 087… 099 Pattern 6 100… 112 Pattern 7 113… 125 Pattern 8 126… 138 Pattern 9 139… 151 Pattern 10 152…...
  • Page 61 Operating Channel Value Function 243… 255 Pattern 18 Running speed dimmer patterns 000… 127 Change, increasing speed 128… 255 gradual transient, increasing speed 000… 255 Intensity red, segment 1 (0 % to 100 %) 000… 255 Intensity green, segment 1 (0 % to 100 %) 000…...
  • Page 62 Operating Channel Value Function 000… 255 Intensity red, segment 4 (0 % to 100 %) 000… 255 Intensity green, segment 4 (0 % to 100 %) 000… 255 Intensity blue, segment 4 (0 % to 100 %) 000… 255 Intensity white, segment 4 (0 % to 100 %) Sound control 000 …...

  • Page 63: Functions In Dmx Mode 21Ch-2

    Operating 7.16 Functions in DMX mode 21Ch-2 Channel Value Function 0 … 255 Dimmer (0 % to 100 %) Strobe 000 … 005 LEDs on 006 … 010 LEDs off (blackout) 011 … 033 Impulses, increasing speed 034 … 056 Increasing brightness, increasing speed 057 …...
  • Page 64 Operating Channel Value Function 000… 016 No function 017… 034 Pattern 1 035… 048 Pattern 2 049… 060 Pattern 3 061… 073 Pattern 4 074… 086 Pattern 5 087… 099 Pattern 6 100… 112 Pattern 7 113… 125 Pattern 8 126…...
  • Page 65 Operating Channel Value Function 217… 229 Pattern 16 230… 242 Pattern 17 243… 255 Pattern 18 Running speed dimmer patterns 000… 127 Change, increasing speed 128… 255 gradual transient, increasing speed 000… 255 Intensity red, segment 1 (0 % to 100 %) 000…...
  • Page 66 Operating Channel Value Function 000… 255 Intensity blue, segment 3 (0 % to 100 %) 000… 255 Intensity white, segment 3 (0 % to 100 %) 000… 255 Intensity red, segment 4 (0 % to 100 %) 000… 255 Intensity green, segment 4 (0 % to 100 %) 000…...

  • Page 67: Technical Specifications

    Technical specifications Technical specifications Light source 648 × 4in1 RGBW SMD LEDs, 0,2 W each Optical properties Beam angle 75° Control DMX, buttons and display on the unit Number of DMX channels 1, 2-1, 2-2, 3, 4, 5, 6, 9-1, 9-2, 16, 21-1, 21-2 Input connections Voltage supply Lockable input socket (Power...
  • Page 68 Technical specifications Protection class IP20 Mounting options hanging, standing Holder for optional omega bracket Dimensions (W × H × D) 385 mm× 255 mm× 95 mm Weight 3.25 kg Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20 %…80 % (non-con‐ densing) Further information Outdoor capable...

  • Page 69: Plug And Connection Assignment

    Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment so that a perfect light experience is guaranteed. Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a short circuit or ‘just’...
  • Page 70 Plug and connection assignment DMX connections A five-pin XLR socket serves as DMX output, a five-pin XLR plug serves as DMX input. The drawing below and the table show the pin assignment of a matching coupling. Assignment Ground (shielding) Signal inverted (DMX–, ‘cold’) Signal (DMX+, ‘hot’) unused / second connection (DMX–) unused / second connection (DMX+)

  • Page 71: Troubleshooting

    Troubleshooting Troubleshooting NOTICE! Data transfer errors due to improper wiring! If the DMX connections are wired incorrectly, this can cause errors during the data transfer. Do not connect the DMX input and output to audio devices, e.g. mixers or ampli‐ fiers.
  • Page 72 DMX interface circuit. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. Wild Wash Pro 648 RGBW LED Spotlight...

  • Page 73: Cleaning

    Cleaning Cleaning Optical lenses Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the light output. The frequency of cleaning depends on the operating environment: wet, smoky or particularly dirty surroundings can cause more accumulation of dirt on the optics of the device.

  • Page 74: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
