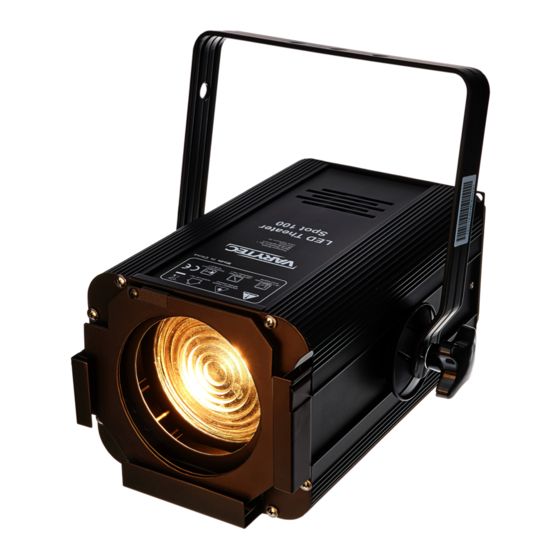

LED Theater Spot 100 3000K
LED Spotlight

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VARYTEC LED Theater Spot 100 3000K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for thomann VARYTEC LED Theater Spot 100 3000K

  • Page 1 LED Theater Spot 100 3000K LED Spotlight...
  • Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 21.09.2023, ID: 414220, 427226 (V5)
  • Page 3: Table Of Contents

    Table of contents Table of contents General information..........................5 1.1 Symbols and signal words....................... 5 Safety instructions............................. 8 Features............................... 12 Installation..............................13 Starting up..............................16 Connections and controls........................17 Operating..............................20 7.1 Starting the device........................... 20 7.2 Main menu............................20 7.3 Menu overview..........................
  • Page 4 LED Theater Spot 100 3000K LED Spotlight...
  • Page 5: General Information

    Our products and documentation are subject to a process of continuous development. They are therefore subject to change. Please refer to the latest version of the documentation, which is ready for download under www.thomann.de. 1.1 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this document.
  • Page 6 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
  • Page 7 General information Warning signs Type of danger Warning – danger zone. LED Theater Spot 100 3000K LED Spotlight...
  • Page 8: Safety Instructions

    Safety instructions Safety instructions Intended use This device is intended for use as an electronic lighting effect by means of LED technology. The device is designed for professional use only and is not suitable for use in households. Use the device only as described in this user manual.
  • Page 9 Safety instructions DANGER! Danger to life due to electric current! Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. Do not use the device when covers, safety equipment or optical components are missing or damaged. DANGER! Danger to life due to electric current! A short circuit could lead to a fire hazard and risk of death.
  • Page 10 Safety instructions NOTICE! Risk of fire due to covered vents and neighbouring heat sources! If the vents of the device are covered or the device is operated in the immediate vicinity of other heat sources, the device can over‐ heat and burst into flames. Never cover the device or the vents. Do not install the device in the immediate vicinity of other heat sources.
  • Page 11 Safety instructions NOTICE! Risk of fire due to installation of a wrong fuse! Using fuses of a different type than compatible with the device may cause a fire and seriously damage the device. Only use fuses of the same type. Observe the labelling on the device casing and the information in the "Technical data” chapter. LED Theater Spot 100 3000K LED Spotlight...
  • Page 12: Features

    Features Features The LED theatre spotlight replaces conventional Fresnel lens spotlights with 500 W … 650 W power. Special features of the device: 1 × COB LED, 100 W Fresnel lens Colour temperature: 3000 K Colour rendering index: 95 Max. light output: 6350 lux (2 m) 15°...
  • Page 13: Installation

    Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
  • Page 14 Installation NOTICE! Risk of overheating and fire due to inadequate distance and bad ventilation! If the distance between the light source and the illuminated surface is too short or the device is badly ventilated, the device can overheat and cause fires. Make sure that illuminated surfaces are more than 2 m away.
  • Page 15 Installation NOTICE! Data transfer errors due to improper wiring! If the DMX connections are wired incorrectly, this can cause errors during the data transfer. Do not connect the DMX input and output to audio devices, e.g. mixers or ampli‐ fiers. Use special DMX cables for the wiring instead of normal microphone cables.
  • Page 16: Starting Up

    Starting up Starting up Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. Connections in DMX mode Connect the DMX input of the device to the DMX output of a DMX controller or another DMX device.
  • Page 17: Connections And Controls

    Connections and controls Connections and controls ö POWER IN Menu Up Down Ente r Fuse & POWER OUT LED Theater Spot 100 3000K LED Spotlight...
  • Page 18 Connections and controls 1 Display with function buttons. The display flashes when a valid DMX signal is present. [Enter] | Confirms a selected value. [Up], [Down] | Increases / decreases the displayed value by one. [Menu] | Calls up the main menu or a submenu. 2 Power-Twist connector for the power supply of the device.
  • Page 19 Connections and controls 9 Mounting bracket 10 Front side with barn door attachment. 11 Locking screw for the mounting bracket. LED Theater Spot 100 3000K LED Spotlight...
  • Page 20: Operating

    Operating Operating 7.1 Starting the device Connect the device to the power supply to start operation. The device is immediately opera‐ tional and operates in the last mode with the settings last selected. 7.2 Main menu Menu control Press [Menu] to open the main menu. Use [Up] or [Down] to select the desired parameter or to change the respectively indicated value.
  • Page 21 Operating DMX address Press [Menu]. Press [Up] or [Down] repeatedly until the display shows ‘Addr’ and confirm with [Enter]. Now you can set the number of the first DMX channel to be used by the device (DMX address). Use [Up] or [Down] to select a value between 1 and 512 (for the 1-channel mode) or 511 (for the 2-channel mode).
  • Page 22 Operating DMX mode Press [Menu]. Press [Up] or [Down] repeatedly until the display shows ‘CH’ and confirm with [Enter]. Now you can set the number of the first DMX channel to be used by the device (DMX address). Use [Up] or [Down] to select one of two DMX modes ‘CH01’ (1-channel mode) or ‘CH02’...
  • Page 23: Menu Overview

    Operating 7.3 Menu overview Addr Stat tEmP U000 CH01 U255 CH02 LED Theater Spot 100 3000K LED Spotlight...
  • Page 24: Functions In 1-Channel Dmx Mode

    Operating 7.4 Functions in 1-channel DMX mode Channel Value Function 0 … 255 Master dimmer (0 % to 100 %) 7.5 Functions in 2-channel DMX mode Channel Value Function 0 … 255 White light dimmer (0 % to 100 %) 0 …...
  • Page 25: Technical Specifications

    Technical specifications Technical specifications Light source 1 × COB LED, 100 W 185 mm Light source properties Colour temperature 3000 K Colour rendering index Optical properties Beam angle 15 ° … 45 °, manually adjust‐ able on the device Control DMX, buttons and display on the unit Number of DMX channels 1 or 2...
  • Page 26 Technical specifications Degree of protection IP20 Mounting options Hanging, standing Dimensions (W × H × D) 160 mm × 185 mm × 260 mm Weight 5 kg Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20 %…80 % (non-con‐ densing) Further information Optic...
  • Page 27: Plug And Connection Assignments

    Plug and connection assignments Plug and connection assignments Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment so that a perfect light experience is guaranteed. Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a short circuit or ‘just’...
  • Page 28: Troubleshooting

    Troubleshooting Troubleshooting NOTICE! Data transfer errors due to improper wiring! If the DMX connections are wired incorrectly, this can cause errors during the data transfer. Do not connect the DMX input and output to audio devices, e.g. mixers or ampli‐ fiers.
  • Page 29 DMX interface circuit. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. LED Theater Spot 100 3000K LED Spotlight...
  • Page 30: Cleaning

    Cleaning Cleaning Optical lenses Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the light output. The frequency of cleaning depends on the operating environment: wet, smoky or particularly dirty surroundings can cause more accumulation of dirt on the optics of the device.
  • Page 31: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 32 Notes LED Theater Spot 100 3000K LED Spotlight...
  • Page 33 Notes LED Theater Spot 100 3000K LED Spotlight...
  • Page 34 Notes LED Theater Spot 100 3000K LED Spotlight...
  • Page 36 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
