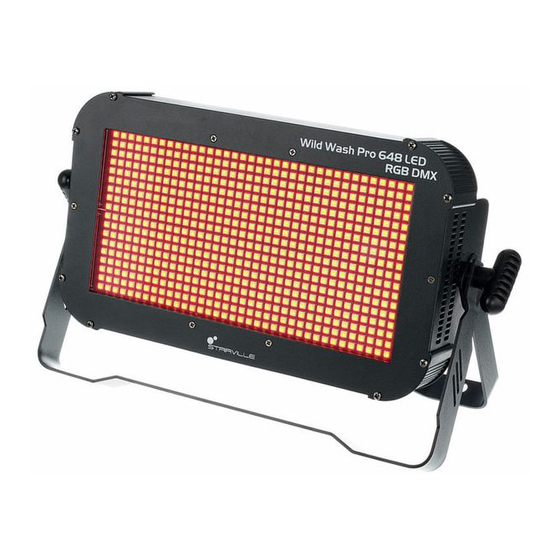

thomann STAIRVILLE Wild Wash Pro 648 LED RGB DMX User Manual
  1. Manuals
  2. Brands
  3. thomann Manuals
  4. Spotlight
  5. Stairville Wild Wash Pro 648 LED White DMX
  6. User manual

thomann STAIRVILLE Wild Wash Pro 648 LED RGB DMX User Manual

Led spotlight
Hide thumbs Also See for STAIRVILLE Wild Wash Pro 648 LED RGB DMX:
Table of Contents

Advertisement

Quick Links

Download this manual
Wild Wash Pro 648 LED RGB DMX,
Wild Wash Pro 648 LED White DMX,
Wild Wash Pro 648 WW DMX
LED Spotlight

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STAIRVILLE Wild Wash Pro 648 LED RGB DMX and is the answer not in the manual?

Questions and answers

Related Manuals for thomann STAIRVILLE Wild Wash Pro 648 LED RGB DMX

Summary of Contents for thomann STAIRVILLE Wild Wash Pro 648 LED RGB DMX

  • Page 1 Wild Wash Pro 648 LED RGB DMX, Wild Wash Pro 648 LED White DMX, Wild Wash Pro 648 WW DMX LED Spotlight...
  • Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 19.10.2023, ID: 432585, 432586 (V4)

  • Page 3: Table Of Contents

    Table of contents Table of contents General information..........................6 1.1 Symbols and signal words....................... 6 Safety instructions............................. 9 Features............................... 13 Installation..............................14 Starting up..............................17 Connections and controls........................19 Operating..............................21 7.1 Starting the device........................... 21 7.2 Main menu............................22 7.3 Menu overview..........................
  • Page 4 Table of contents 7.12 Functions in DMX mode 4Ch (model version with RGB LEDs)........39 7.13 Functions in DMX mode 5Ch (model version with white LEDs)........42 7.14 Functions in DMX mode 6Ch (model version with RGB LEDs)........44 7.15 Functions in DMX mode 7Ch (model version with 648 white LEDs)......46 Technical specifications........................
  • Page 5 Wild Wash Pro 648 LED RGB DMX, Wild Wash Pro 648 LED White DMX, Wild Wash Pro 648 WW DMX LED Spotlight...

  • Page 6: General Information

    Our products and documentation are subject to a process of continuous development. They are therefore subject to change. Please refer to the latest version of the documentation, which is ready for download under www.thomann.de. 1.1 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this document.
  • Page 7 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
  • Page 8 General information Warning signs Type of danger Warning – danger zone. Wild Wash Pro 648 LED RGB DMX, Wild Wash Pro 648 LED White DMX, Wild Wash Pro 648 WW DMX LED Spotlight...

  • Page 9: Safety Instructions

    Safety instructions Safety instructions Intended use This device is intended for use as an electronic lighting effect by means of LED technology. The device is designed for professional use only and is not suitable for use in households. Use the device only as described in this user manual.
  • Page 10 Safety instructions DANGER! Danger to life due to electric current! Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. Do not use the device when covers, safety equipment or optical components are missing or damaged. DANGER! Danger to life due to electric current! A short circuit could lead to a fire hazard and risk of death.
  • Page 11 Safety instructions NOTICE! Damage to the device if operated in unsuitable ambient conditions! The device can be damaged if it is operated in unsuitable ambient conditions. Only operate the device indoors within the ambient conditions specified in the “Technical specifications” chapter of this user manual. Avoid operating it in environments with direct sun‐ light, heavy dirt and strong vibrations.
  • Page 12 Safety instructions NOTICE! Risk of overheating and fire due to inadequate distance and bad ventilation! If the distance between the light source and the illuminated surface is too short or the device is badly ventilated, the device can overheat and cause fires. Make sure that illuminated surfaces are more than 2 m away. Do not operate the device in ambient temper‐ atures above 40 °C.

  • Page 13: Features

    Equipped with SMD LEDs with 0.2 W power consumption each, depending on the model version: – Stairville Wild Wash Pro 648 LED RGB DMX (item no. 432585): 648 tricolour LEDs (RGB) – Stairville Wild Wash Pro 648 LED White DMX (item no. 432586): 648 cold white LEDs –...

  • Page 14: Installation

    Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
  • Page 15 Installation NOTICE! Risk of overheating and fire due to inadequate distance and bad ventilation! If the distance between the light source and the illuminated surface is too short or the device is badly ventilated, the device can overheat and cause fires. Make sure that illuminated surfaces are more than 2 m away.
  • Page 16 Installation Please note that this device must not be connected to a dimmer. Wild Wash Pro 648 LED RGB DMX, Wild Wash Pro 648 LED White DMX, Wild Wash Pro 648 WW DMX LED Spotlight...

  • Page 17: Starting Up

    Starting up Starting up Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. Connections in DMX mode Connect the DMX input of the device to the DMX output of a DMX controller or another DMX device.
  • Page 18 Starting up Connections in master/slave When you configure a group of devices in master/slave mode, the first unit will control the mode other units for an automatic, sound-activated, synchronized show. This function is ideal when you want to start a show immediately. Connect the DMX output of the master device to the DMX input of the first slave device.

  • Page 19: Connections And Controls

    Connections and controls Connections and controls Wild Wash Pro 648 LED ö & Wild Wash Pro 648 LED RGB DMX, Wild Wash Pro 648 LED White DMX, Wild Wash Pro 648 WW DMX LED Spotlight...
  • Page 20 Connections and controls 1 Display and control buttons [MENU] | Activates the main menu and switches between menu items. [UP] Increases the displayed value by one. [DOWN] | Decreases the displayed value by one. [ENTER] | Selects an option of the respective operating mode. 2 [DMX IN] | DMX input sockets, three- and five-pin [DMX OUT] | DMX output socket, three- and five-pin 3 [MIC] | Microphone for sound control...

  • Page 21: Operating

    Operating Operating 7.1 Starting the device Connect the device to the power supply to start operation. After a few seconds, the display indicates that a reset is in progress. The device is then ready for use. The display shows the operating mode that was selected when the unit was last powered off.

  • Page 22: Main Menu

    The following table shows the DMX modes available depending on the version. Model version Available DMX modes Stairville Wild Wash Pro 648 LED RGB DMX (item no. 432585) 1CH, 2CH1, 2CH2, 3CH1, 3CH2, 3CH3, 4CH, 6CH Stairville Wild Wash Pro 648 LED White DMX (item no.
  • Page 23 Operating Operating mode ‘Manual con‐ This setting is only relevant if the device is not controlled via a DMX controller and not working trol’ (white LED model version) as slave in a master / slave configuration. In this mode, the brightness of the white LEDs can be adjusted and a Strobe effect can be engaged.
  • Page 24 Operating Operating mode ‘Colour mac‐ This setting is only relevant if the device is not controlled via a DMX controller and not working ros’ (RGB LED model version) as slave in a master / slave configuration. In this mode, one of the three primary colours or a predefined mixed colour can be selected.
  • Page 25 Operating Setting Colour CM12 Pink CM13 Warm white CM14 White CM15 Cold white Operating mode ‘Automatic This setting is only relevant if the device is not controlled via a DMX controller and not working colour change’ (RGB LED model as slave in a master / slave configuration. In this mode, the colours are changed at freely select‐ version) able speed, a Strobe effect can be engaged.
  • Page 26 Operating Operating mode ‘Fading’ (white This setting is only relevant if the device is not controlled via a DMX controller and not working LED model version) as slave in a master / slave configuration. In this mode, the LEDs will gradually fade in with a freely selectable speed from blackout to maximum brightness and reverse, a Strobe effect can be engaged.
  • Page 27 Operating Operating mode ‘Automatic This setting is only relevant if the device is not controlled via a DMX controller and not working show’ (white LED model version) as slave in a master / slave configuration. In this mode, the LEDs will gradually fade in with a freely selectable speed from blackout to maximum brightness and reverse, the Strobe effect is automatically engaged in regular intervals.
  • Page 28 Operating Operating mode ‘Slave’ This setting is only relevant if the device is not controlled via a DMX controller and working as slave in a master / slave configuration. Master and slave devices are connected to each other via a DMX cable, the master device is in one of the operating modes ‘Manual control’, ‘Fading’, ‘Automatic show’...

  • Page 29: Menu Overview

    Operating 7.3 Menu overview MENU xChx Axxx Cxxx CMxx JUxx FAxx AUTO SLAV SOUN A001 C100 CM01 JU00 FA00 AU00 S000 2Ch1 A512 C199 CM15 JU99 FA99 AU99 S099 2Ch2 C200 JF00 FF01 3Ch1 C299 FF99 JF99 3Ch2 C300 3Ch3 C399 CF00 CF99...

  • Page 30: Functions In Dmx Mode 1Ch

    Operating 7.4 Functions in DMX mode 1ch Channel Value Function Strobe 0 … 10 LEDs off (blackout) 11 … 255 Strobe effect, speed increasing from approx. 0 Hz to 30 Hz 7.5 Functions in DMX mode 2Ch (model version with white LEDs) Channel Value Function...

  • Page 31: Functions In Dmx Mode 2Ch1 (Model Version With Rgb Leds)

    Operating 7.6 Functions in DMX mode 2Ch1 (model version with RGB LEDs) Channel Value Function 0 … 255 Dimmer (0 % to 100 %) Colour macro 0 … 5 LEDs off (blackout) 6 … 13 14 … 21 Amber 22 … 29 Warm yellow 30 …...
  • Page 32 Operating Channel Value Function 94 … 101 Pink 102 … 109 Warm white 110 … 117 White 118 … 125 Cold white 126 … 128 Ending colour change 129 … 192 Colour change, increasing speed 193 … 255 Gradual colour change, increasing speed Wild Wash Pro 648 LED RGB DMX, Wild Wash Pro 648 LED White DMX, Wild Wash Pro 648 WW DMX LED Spotlight...

  • Page 33: Functions In Dmx Mode 2Ch2

    Operating 7.7 Functions in DMX mode 2Ch2 Channel Value Function 0 … 255 Dimmer (0 % to 100 %) Strobe 0 … 5 LEDs on 6 … 10 LEDs off (blackout) 11 … 250 Strobe effect, speed increasing from approx. 0 Hz to 30 Hz 251 …...

  • Page 34: Functions In Dmx Mode 3Ch1

    Operating 7.8 Functions in DMX mode 3Ch1 Channel Value Function 0 … 255 Dimmer (0 % to 100 %) Strobe 0 … 5 LEDs on 6 … 10 LEDs off (blackout) 11 … 250 Strobe effect, speed increasing from approx. 0 Hz to 30 Hz 251 …...

  • Page 35: Functions In Dmx Mode 3Ch2 (Model Version With Rgb Leds)

    Operating 7.9 Functions in DMX mode 3Ch2 (model version with RGB LEDs) Channel Value Function 0 … 255 Dimmer (0 % to 100 %) Strobe 0 … 5 LEDs on 6 … 10 LEDs off (blackout) 11 … 250 Strobe effect, speed increasing from approx. 0 Hz to 30 Hz 251 …...
  • Page 36 Operating Channel Value Function 54 … 61 Cyan 62 … 69 Blue 70 … 77 Lavender 78 … 85 Mauve 86 … 93 Magenta 94 … 101 Pink 102 … 109 Warm white 110 … 117 White 118 … 125 Cold white 126 …...

  • Page 37: Functions In Dmx Mode 3Ch2 (Model Version With White Leds)

    Operating 7.10 Functions in DMX mode 3Ch2 (model version with white LEDs) Channel Value Function 0 … 255 Dimmer (0 % to 100 %) Strobe 0 … 5 LEDs on, brightness controlled by channel 1 6 … 10 LEDs off (blackout) 11 …...

  • Page 38: Functions In Dmx Mode 3Ch3 (Model Version With Rgb Leds)

    Operating Channel Value Function 0 … 5 Sound control off 6 … 255 Sound control on, increasing sensitivity 7.11 Functions in DMX mode 3Ch3 (model version with RGB LEDs) Channel Value Function 0 … 255 Intensity red (0 % to 100 %) 0 …...

  • Page 39: Functions In Dmx Mode 4Ch (Model Version With Rgb Leds)

    Operating 7.12 Functions in DMX mode 4Ch (model version with RGB LEDs) Channel Value Function 0 … 255 Dimmer (0 % to 100 %) Strobe 0 … 5 LEDs on, brightness controlled by channel 1 6 … 10 LEDs off (blackout) 11 …...
  • Page 40 Operating Channel Value Function 14 … 21 Amber 22 … 29 Warm yellow 30 … 37 Yellow 38 … 45 Green 46 … 53 Turquoise 54 … 61 Cyan 62 … 69 Blue 70 … 77 Lavender 78 … 85 Mauve 86 …...
  • Page 41 Operating Channel Value Function 193 … 255 Gradual colour change, increasing speed Sound control 0 … 5 Sound control off 6 … 255 Sound control on, increasing sensitivity Wild Wash Pro 648 LED RGB DMX, Wild Wash Pro 648 LED White DMX, Wild Wash Pro 648 WW DMX LED Spotlight...

  • Page 42: Functions In Dmx Mode 5Ch (Model Version With White Leds)

    Operating 7.13 Functions in DMX mode 5Ch (model version with white LEDs) Channel Value Function 0 … 255 Dimmer (0 % to 100 %) Strobe 0 … 5 LEDs on, brightness controlled by channel 1 6 … 10 LEDs off (blackout) 11 …...
  • Page 43 Operating Channel Value Function Running speed 11 … 255 Automatic Strobe programme speed, increasing if channel 5 = 0…5) Sound control 0 … 5 Sound control off 6 … 255 Sound control on, increasing sensitivity Wild Wash Pro 648 LED RGB DMX, Wild Wash Pro 648 LED White DMX, Wild Wash Pro 648 WW DMX LED Spotlight...

  • Page 44: Functions In Dmx Mode 6Ch (Model Version With Rgb Leds)

    Operating 7.14 Functions in DMX mode 6Ch (model version with RGB LEDs) Channel Value Function 0 … 255 Dimmer (0 % to 100 %) Strobe 0 … 5 LEDs on, brightness controlled by channel 1 6 … 10 LEDs off (blackout) 11 …...
  • Page 45 Operating Channel Value Function Sound control 0 … 5 Sound control off 6 … 255 Sound control on, increasing sensitivity Wild Wash Pro 648 LED RGB DMX, Wild Wash Pro 648 LED White DMX, Wild Wash Pro 648 WW DMX LED Spotlight...

  • Page 46: Functions In Dmx Mode 7Ch (Model Version With 648 White Leds)

    Operating 7.15 Functions in DMX mode 7Ch (model version with 648 white LEDs) Channel Value Function 0 … 255 Dimmer (0 % to 100 %) Strobe 0 … 5 LEDs on 6 … 10 LEDs off (blackout) 11 … 250 Strobe effect, speed increasing from approx.

  • Page 47: Technical Specifications

    Technical specifications Technical specifications Stairville Wild Wash Pro 648 LED RGB DMX (item no. 432585) Light source 648 × tricolour SMD LEDs, 0.2 W each Optical properties Beam angle approx. 75° Control DMX, buttons and display on the unit Number of DMX channels 1, 2, 3, 4 or 6 Input connections Voltage supply...
  • Page 48 Technical specifications Operating supply voltage 100 - 240 V 50/60 Hz Fuse 5 mm × 20 mm, 2 A, 250 V, fast-acting Protection class IP20 Mounting options hanging, standing Dimensions (W × H × D) 385 mm× 255 mm× 95 mm Weight 3.25 kg Ambient conditions...
  • Page 49 Technical specifications Further information Outdoor capable Colour mixture LED type Floor housing Fanless Remote control Not possible wireless DMX Housing colour black Wild Wash Pro 648 LED RGB DMX, Wild Wash Pro 648 LED White DMX, Wild Wash Pro 648 WW DMX LED Spotlight...
  • Page 50 Technical specifications Stairville Wild Wash 648 LED White DMX (item no. 432586) Light source 648 × SMD LEDs, cold white, 0.2 W each Light source properties Colour temperature 6000 K Colour rendering index CRI 75 Optical properties Beam angle approx. 75° Control DMX, buttons and display on the unit Number of DMX channels...
  • Page 51 Technical specifications Operating supply voltage 100 - 240 V 50/60 Hz Fuse 5 mm × 20 mm, 2 A, 250 V, fast-acting Protection class IP20 Mounting options hanging, standing Dimensions (W × H × D) 385 mm× 255 mm× 95 mm Weight 3.25 kg Ambient conditions...
  • Page 52 Technical specifications Further information Outdoor capable Colour mixture Cold white LED type Floor housing Fanless Remote control Not possible wireless DMX Housing colour black Wild Wash Pro 648 LED RGB DMX, Wild Wash Pro 648 LED White DMX, Wild Wash Pro 648 WW DMX LED Spotlight...
  • Page 53 Technical specifications Stairville Wild Wash 648 WW DMX (item no. 481229) Light source 648 × SMD LEDs, warm white, 0.2 W each Light source properties Colour temperature 2900 K Colour rendering index CRI Ra >90 Optical properties Beam angle approx. 75° Control DMX, buttons and display on the unit Number of DMX channels...
  • Page 54 Technical specifications Operating supply voltage 100 - 240 V 50/60 Hz Fuse 5 mm × 20 mm, 2 A, 250 V, fast-acting Protection class IP20 Mounting options hanging, standing Dimensions (W × H × D) 385 mm× 255 mm× 95 mm Weight 3.25 kg Ambient conditions...
  • Page 55 Technical specifications Further information Outdoor capable Colour mixture Warm white LED type Floor housing Fanless Remote control Not possible wireless DMX Housing colour black Wild Wash Pro 648 LED RGB DMX, Wild Wash Pro 648 LED White DMX, Wild Wash Pro 648 WW DMX LED Spotlight...

  • Page 56: Plug And Connection Assignment

    Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment so that a perfect light experience is guaranteed. Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a short circuit or ‘just’...
  • Page 57 Plug and connection assignment DMX connections A five-pin XLR socket serves as DMX output, a five-pin XLR plug serves as DMX input. The drawing below and the table show the pin assignment of a matching coupling. Assignment Ground (shielding) Signal inverted (DMX–, ‘cold’) Signal (DMX+, ‘hot’) unused / second connection (DMX–) unused / second connection (DMX+)

  • Page 58: Troubleshooting

    Troubleshooting Troubleshooting NOTICE! Data transfer errors due to improper wiring! If the DMX connections are wired incorrectly, this can cause errors during the data transfer. Do not connect the DMX input and output to audio devices, e.g. mixers or ampli‐ fiers.
  • Page 59 If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. Wild Wash Pro 648 LED RGB DMX, Wild Wash Pro 648 LED White DMX, Wild Wash Pro 648 WW DMX...

  • Page 60: Cleaning

    Cleaning Cleaning Optical lenses Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the light output. The frequency of cleaning depends on the operating environment: wet, smoky or particularly dirty surroundings can cause more accumulation of dirt on the optics of the device.

  • Page 61: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
