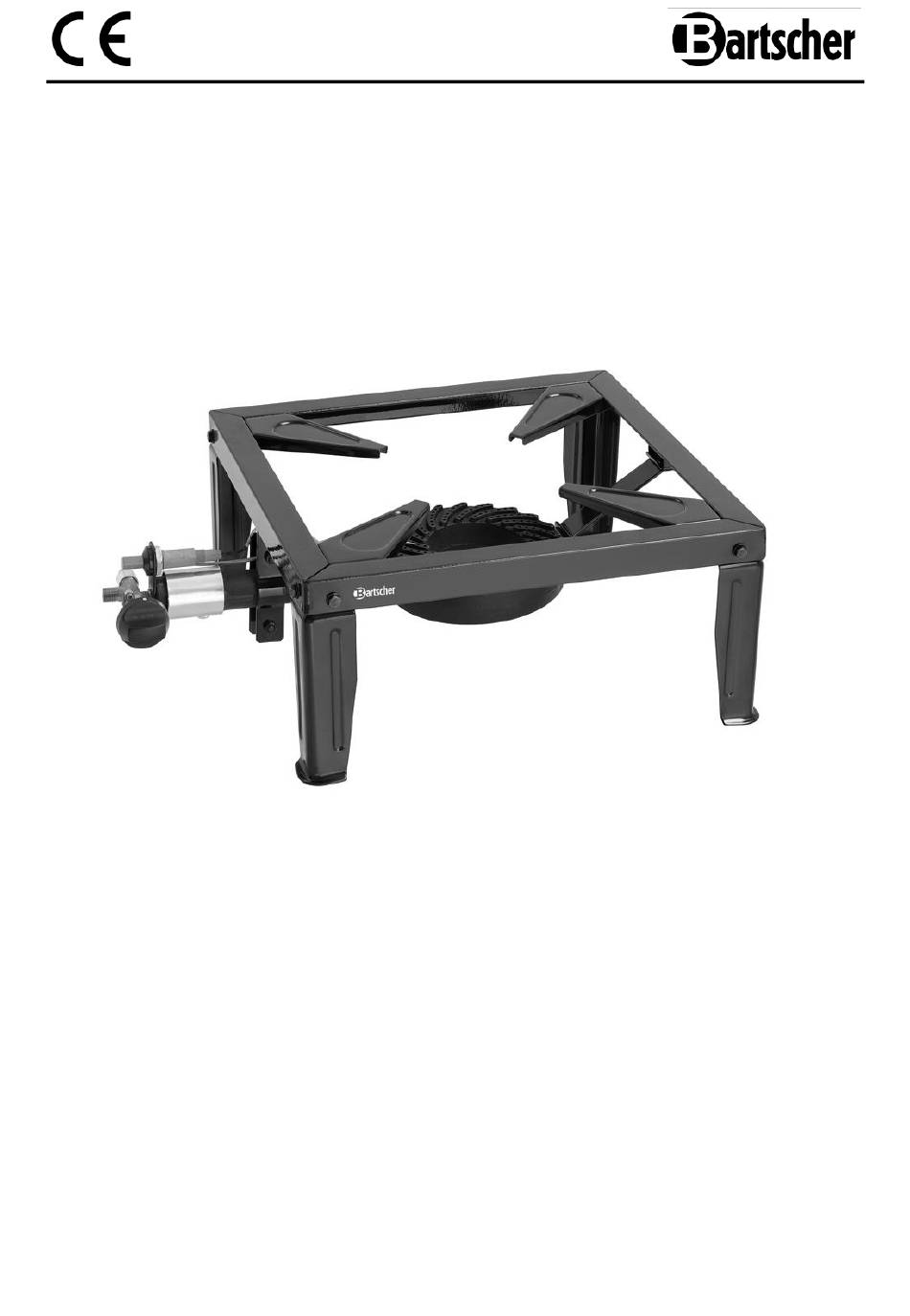

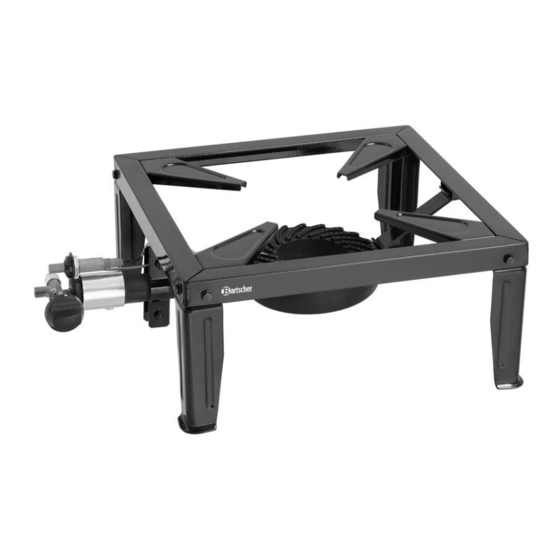

  • Page 1 0063CL7071 1K1050 1054603 Original-Gebrauchsanleitung V1/0718...

  • Page 2: Table Of Contents

    5.2.1 Important tips ..................... 38 5.2.2 Operation of the device ................39 6. Cleaning and maintenance ..................41 7. Possible Malfunctions .................... 43 8. Waste disposal ......................44 Bartscher GmbH phone: +49 5258 971-0 Franz-Kleine-Str. 28 fax: +49 5258 971-120...

  • Page 3: Safety

    Read this instruction manual before using and keep them available at all times! This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device.

  • Page 4: Safety Instructions

    HOT SURFACE! This symbol is a warning that the device surface is hot when in use. Ignoring this warning may result in burns! CAUTION! This symbol highlights dangerous situations which could lead to light injuries, or damage, malfunction, and/or destruction of the device. NOTE! This symbol highlights recommendations and information aimed for effective and trouble-free device operation.
  • Page 5  The device is designed for outdoor use only! Never use the device inside buildings, garages or any other closed areas.  Never use the device under a canopy, roof, shed, shade sail or marquee.  The device is not suitable for the installation and operation on vehicles, boats or ships.
  • Page 6 WARNING! Risk of burns! Follow the safety instructions below to avoid the hazard.  Never lean over the cooking place during ignition. High flames from the area may cause severe burns.  Never touch the hot surface of the gas burner during operation and directly afterwards.

  • Page 7: Proper Use

     When it rains, snows, hails or there is any other type of precipi- tation while cooking with oil or fat, cover the cookware with a lid and switch off the device (turn the gas tap to “OFF”, close the gas cylinder valve).

  • Page 8: General Information

    2. General information 2.1 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors.

  • Page 9: Transport, Packaging And Storage

    3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints.

  • Page 10: Technical Data

    4. Technical data 4.1 Technical specification Description Gas stool cooker 1K1050 1054603 Code-No.: Material: Steel, cast iron  Hob type: gas  Number of hobs: 1  Gas type: propane  Gas pressure: 50 mbar  Output per hob: 10.5 kW ...
  • Page 11 Classification of gas fuels used in various countries CAUTION! The device functions well only when the gas supply pressure is between the values given in the table below for different gas categories. Name Gas stool cooker Model: / 1K1050 / 1054603 Code-No.: CY-CZ-DK- EE-FI-GR- CZ-FR- ES-FR-GB-IE- IT-LT-LV-...

  • Page 12: Overview Of Parts

    4.2 Overview of parts Fig. 1 1 Frame 2 Fixing plate 1 of the gas burner 3 Feet (4x) 4 Fixing plates 2+3 of the gas burner 5 Gas tap 6 Valve Fig. 2 7 Ignition 8 Thermal element 9 Ignition tube with cable 10 Gas burner - 33 -...

  • Page 13: Installation And Operation

    5. Installation and operation 5.1 Instructions for a gas fitter CAUTION! All installation, connection, and maintenance works must be performed by the qualified personnel only that fulfill the following requirements: a) authorization from our company; b) authorization from the local gas supplier. Moreover the following regulations must be followed: 1) DVGW TRGI (technical regulations for the gas installations);...

  • Page 14: Location

    5.1.2 Location  The installation should be performed by a qualified gas fitter according to the local safety standards for gas supplied devices.  Never place the device in toxic or potentially explosive environment.  Never place the device near flammable materials, such as petrol, fat, clothes, liquid gas, paper, etc..

  • Page 15: Gas Connection

    Use the device with the gas tap according to EN16129 standard and with the gas hose marked CE and at least 1 metre long. They are not included in the delivery. We recommend the Bartscher gas connecting set, code-no. 500180.

  • Page 16: Tightness Test

    5.1.4 Tightness test WARNING! Always perform the tightness test when the device has been disconnected from the gas cylinder or screwed connections have been loosened in the meantime. Make sure there is no source of ignition near the device. Do not smoke when performing the tightness test. Perform the tightness test only outside or in a well- ventilated outside areas.

  • Page 17: User Instructions

    5.2 User instructions CAUTION! Carefully read this operation manual as it contains instructions for safety and operation of the device. Store the manual to use it at any moment. The defective installation, operation errors and maintenance and cleaning mistakes as well as any modifications may cause the incorrect operation, damage and injuries.

  • Page 18: Operation Of The Device

    Use the device only to prepare food products: cooking, frying, heating up. Never use the device for other purposes. Any other use should be recognised as improper and dangerous. Use only suitable cookware of an adequate diameter (pot: 200 - 300 mm, wok 400 - 560 mm).
  • Page 19 Shut down / turn off of ignition flame  When the device is not in use, turn the gas tap clockwise to the OFF position.  Close the gas cylinder valve.  Leave the device to cool off before start cleaning or moving of the device. Suitable / not suitable cookware ...

  • Page 20: Cleaning And Maintenance

    6. Cleaning and maintenance WARNING! Close the gas cylinder valve before cleaning. Wait for the device to cool down. Never use water jet to wash the device. Make sure that no water gets into the device. CAUTION! Never clean the device with flammable liquids or liquids of explosive properties.
  • Page 21 Maintenance by a gas fitter Optimal operation of the device is achieved by observing the following instructions. All maintenance and repair works must be performed by an authorized gas specialist. The device must be checked at least once a year. Regularly clean the thermal element.

  • Page 22: Possible Malfunctions

    7. Possible Malfunctions In case of malfunction, disconnect the device from its power source. Before contacting the service or sales agent, verify - based on the table below - whether it is possible to eliminate disruption in operation. Problem Cause Solution ...

  • Page 23: Waste Disposal

    CAUTION! Before disposing of the device make sure that the device cannot be restarted to prevent any abuse and related risks. Bartscher GmbH phone: +49 5258 971-0 Franz-Kleine-Str. 28 fax: +49 5258 971-120...
