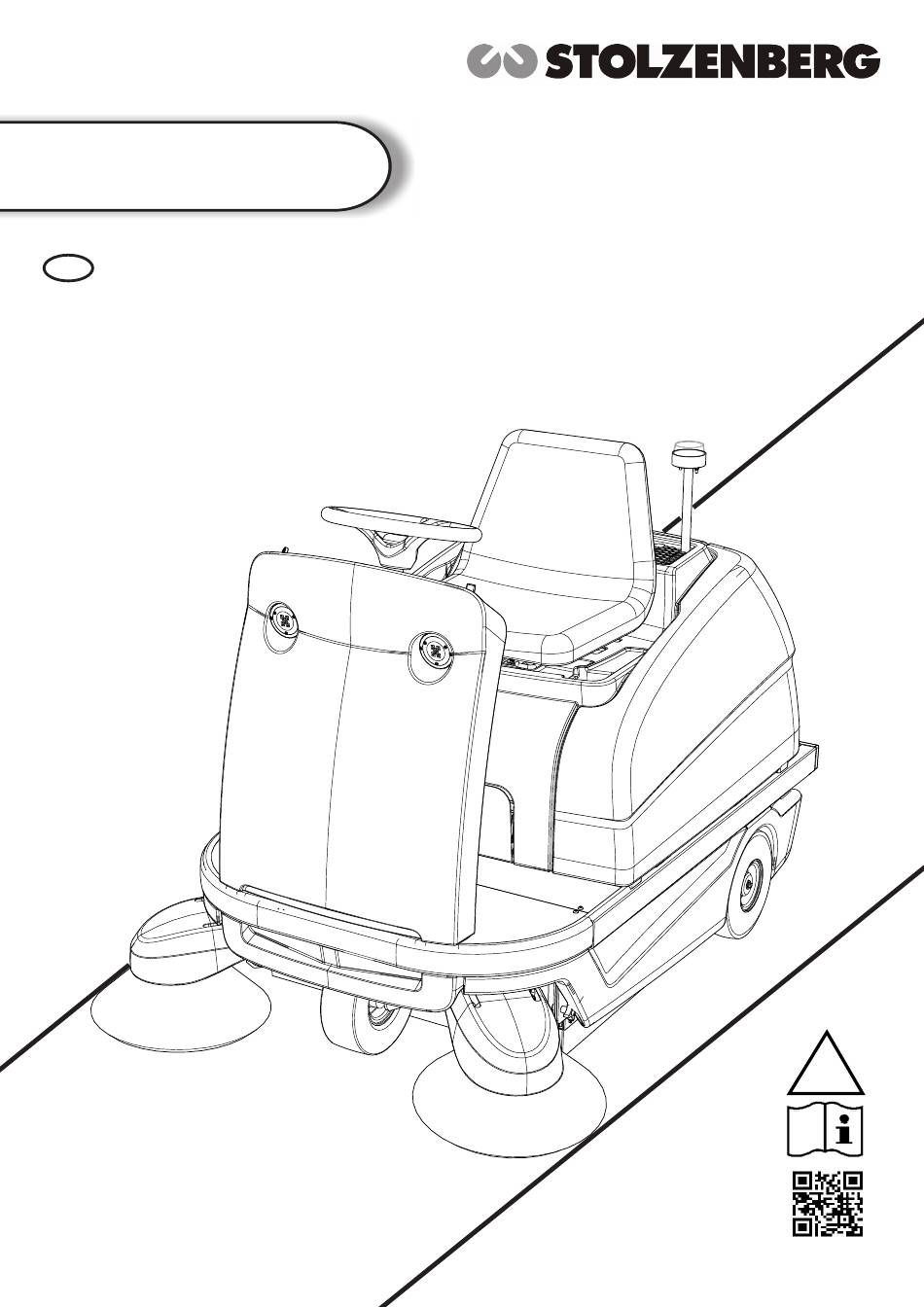

- Page 1 TT 1200 Operating Manual htttp://www.stolzenberg.de...
-
Page 3: Table Of Contents
Contents Introduction/Intended use This operating manual contains instructions for using the sweeper. Our products are constantly being improved. It was therefore not possible to include constructive modifications made after The device is designated exclusively for sweeping on solid ground printing. If you have any questions, please call our customer (e.g. -
Page 4: Symbols In The Operating Manual
Ÿ Ensure a safe and environmentally friendly disposal of Symbols on the device operating and auxiliary materials as well as replaced parts, especially the batteries! WARNING! ATTENTION! DANGER AREA! Ÿ Suitable, non-slip footwear must be worn to avoid accidents. RISK OF INJURIES! Persons (including children) who, due to their physical, Ÿ... -
Page 5: Function
ENVIRONMENTAL CONDITIONS Function Protection class IPX3 Temperature [°C] -5 bis +40 EMISSIONS Sound pressure level dB(A) Vibrations [m/s²] < 2.5 Control and functional elements 4.3.1 Overview of control and functional elements With the Tandem Rollers System (TRS), the side brush (1) initially moves the dirt from the corners and edges of the sweeping area to the centre of the machine and thus to the two counter-rotating sweeper rollers (2). -
Page 6: Control System Electronics / Software
4.3.2 Control system electronics / Software 4.3.2.1 Operation / Description of symbols The menu selection knob is the central control element of the electronic control system. Turn and press the knob to navigate through the menu and to make adjustments. Switch menu The control system is designed in a way to allow other functions to be (de)activated via the main menu or shortcut buttons, after the... -
Page 7: Unloading The Machine
Step 1 Open the transport box. Step 2 Disassemble the side door. SIDE BRUSH Step 3 Open the main cover and remove it by lifting it out of the holding brackets. Step 4 Assemble the batteries (see 4.5.2). Step 5 Connect the batteries to the main harness (see 4.5.2). -
Page 8: Initial Operation
Initial operation 4.5.1 Establishing the machine-battery connection The connection between the batteries and the sweeper is separated for reasons of transport safety. This connection must be restored prior to initial operation. First, the hopper must be removed (1-3) to obtain access to the main cover fastener (4). By pulling the main cover fastener to the left and front (in the driving direction, 5), it can be released from the bracket. -
Page 10: Inserting The Batteries
4.5.2 Inserting the batteries If there are no batteries in the machine, they must initially be inserted and connected as described in the following... -
Page 12: Setting The Battery Type
4.5.3 Setting the battery type A distinction is made essentially between gel and acid batteries, which have different discharge curves and shutdown thresholds. To ensure correct battery indication and the proper discharge protection, it is therefore necessary to define the right type of battery within the control system. -
Page 13: Starting The Sweeper
5.1.1 Starting the sweeper To activate the drive, it is only necessary to turn the key switch. For this, it is initially necessary to release the parking brake (1-2). Subsequently, the key is inserted in the ignition lock (3) and rotated clockwise by 90°... -
Page 14: Parking The Sweeper
5.1.3 Parking the sweeper When parking the machine, make sure that the parking area is at ground level (not inclined) and dry. To switch off the machine, first press down on the break (1) and engage the parking brake (2-3). Subsequently turn the key switch counter-clockwise by 90°... -
Page 15: Sweeping System
The following functions are stored in the factory settings for the IMPORTANT - Once the battery charge indicator "standard" sweeping mode marked in red in the table: starts to flash, sweeping should only be performed in the vicinity of the charging station, The functions shown for the "standard"... -
Page 16: Sweeper Rollers
5.2.2.3 "Outdoor" sweeping mode This sweeping mode is used to sweep outdoor areas, such as parking lots, storage areas or driveways with concrete, asphalt or paved surfaces. In this setting, only the sweeper rollers and side brushes are activated, since the dust suction system and the work light (optional) are not necessarily required for outdoor areas. -
Page 17: Side Brush
5.2.4 Side brush 5.2.4.1 Activating/deactivating the side sweeper roller Depending on the selected sweeping mode, the (de-)activation of the side brush is performed by pressing the PASS. The button on the control panel with the side brush symbol can be used to (de-)activate the right side brush and the left side brush (optional). -
Page 18: Dust Suction
5.2.4.2 Lowering/raising the side brushes The lowering of the side brush is performed manually using the side brush adjustment lever directly adjacent to the steering column. In the rest position of the side brushes, the adjustment lever is in an upward position (1). The arrow on the lever is pointing upwards. -
Page 19: Filter Vibrator
5.3.3 Filter vibrator 5.3.3.1 Manually activation/deactivation of the filter vibrator The filter vibrator motor only runs as long as the filter vibrator button is pressed. During the vibration procedure, the fan is briefly switched off, in order to prevent the direct "re-suction" of dust already shaken off the filter. -
Page 20: Filter Properties
A Home screen G1 Manual vibration function G2 Automatic vibration function 5.3.4 Filter properties ATTENTION - Never expose the filter to moisture! The filter material may be damaged irreparably and a strong negative impact on the air cleansing properties of the dust suction system can result! Make sure that the filter vibrator is regularly operated in manual operation. -
Page 21: Cleaning The Hopper
5.5.1 Charging with an external charger The charger port is located inside the machine. To access it, the side door must be swung open and the main cover must be opened and secured with the main cover bracket (1). The charging port (red plug) is located next to the fuse box (2). -
Page 22: Charging With An On-Board Charger (Optional)
5.5.2 Charging with an on-board charger (optional) The plug connector of the charger is located inside the machine. To access it, the side door must be swung open and the main cover must be opened and secured with the main cover bracket (1). The plug connector is located next to the charger (2). -
Page 23: Machine Overload Protection
All service and maintenance work must be performed by a size on the cover of the control system (3). These fuses must be qualified technician! If necessary, a Stolzenberg dealer can be replaced after tripping because they are disposable fuses. -
Page 24: Faults, Fault Indications And Remedy
Faults, fault indications and remedy Fault Possible cause Remedy key switch to actuated place key to key switch and turn it battery not connected connect battery low battery level charge battery malfunction of relay replace relay controller wire not connected connect controller wire no function of display an control elements... - Page 25 Störung Mögliche Ursche Abhilfe check main brooms and remove blockages display shows warning icon check electric connections check function of main broom drive no function of main brooms cracked drive chain check and fix / replace triggered fuse check root cause and fix it, replace / reactivate fuse check and replace main broom drive with malfunction check side brooms and remove blockages...
-
Page 26: Product Identification / Name Plate
IPX3 WEIGHT: 395 kg machine into the threads provided in the frame. SOUND PRESS.: <74 dB Stolzenberg GmbH & Co. KG Hamburger Str. 15-17 49124 Georgsmarienhütte, GERMANY www.stolzenberg.de Made in Germany ATTENTION! The eyes are designated for transport safety only! They must not be misused... -
Page 27: Ec Declaration Of Conformity
ONFORMITY according to the EC Machinery Directive 2006/42/EC, Annex IIA Mister Kai Stolzenberg - Management of Stolzenberg GmbH & Co. KG, Hamburger Straße 15- 17, 49124 Georgsmarienhütte - be authorized to compile the technical documentation We hereby declare that the machine designated below complies with the essential safety and health requirements of the EC Machinery Directive in its design and construction and in the version marketed by us. -
Page 28: Contact
ONTACT Manufacturer: Stolzenberg GmbH & Co. KG Hamburger Straße 15-17 49124 Georgsmarienhütte T: +49 (0) 5401 / 8353-0 F: +49 (0) 5401 / 8353-11 service@stolzenberg.de Dealers:...
