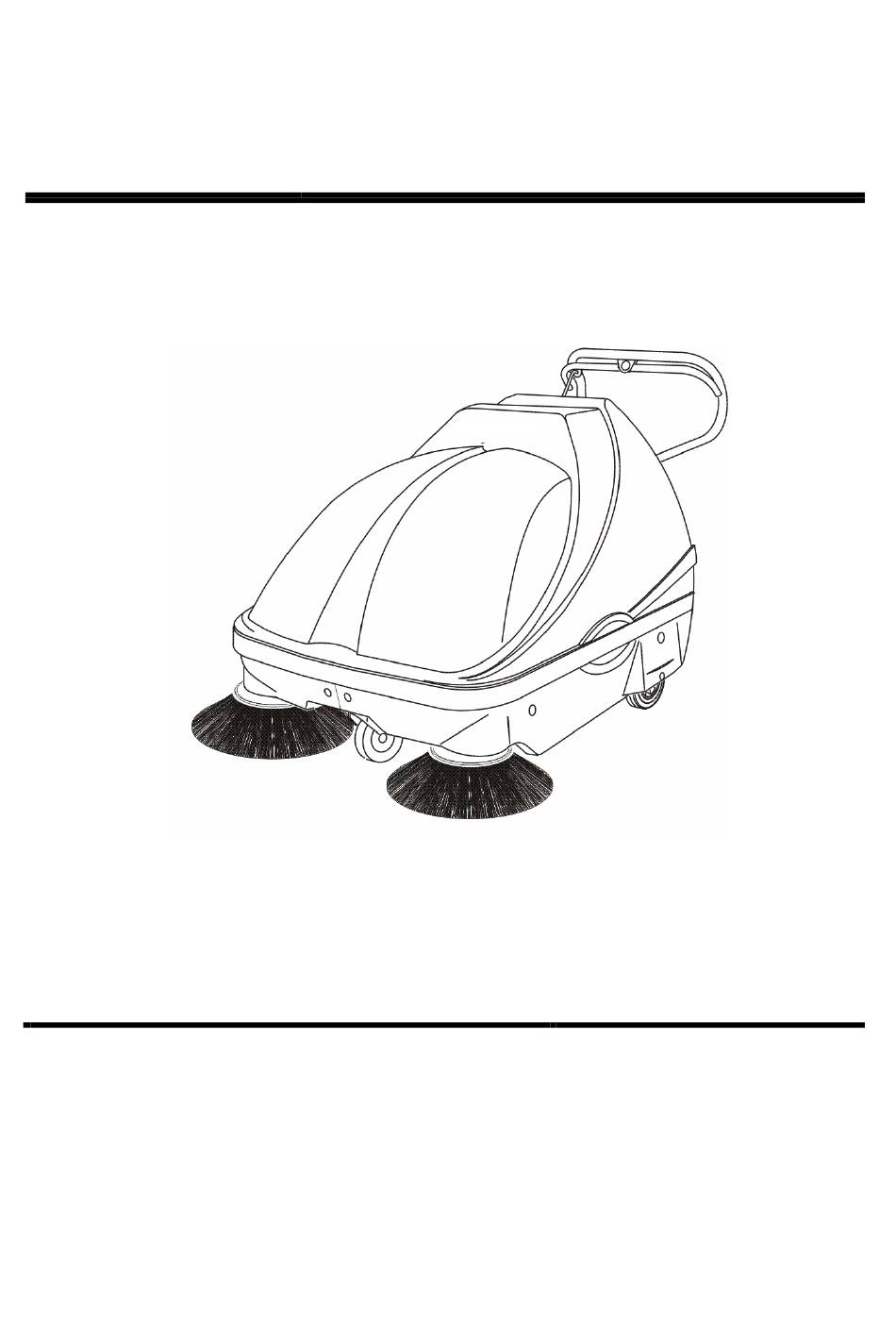

- Page 1 Operating manual (Translation of the original version) Battery-operated suction sweeper KSE 1000...
- Page 2 11/12/2017 Battery-operated suction sweeper KSE 1000...
-
Page 3: Table Of Contents
Dismounting the Sweeping Rollers ..............19 5.5.2 Installing the Sweeping Rollers ................. 20 Setting the Sweeping Rollers.................... 21 5.6.1 Sweeping Contour Adjustment ................21 5.6.2 Establishing the Sweeping Contour: ..............21 5.6.3 AdJusting the Sweeping Contour ..............21 11/12/2017 Battery-operated suction sweeper KSE 1000... - Page 4 5.11 Malfunctions / error messages and troubleshooting............31 5.12 Technical Data ........................32 5.13 Product marking........................ 33 5.14 Disposal ..........................33 5.15 Accessories and spare parts .................... 33 5.16 Service ..........................33 5.17 Transport........................... 33 Battery-operated suction sweeper KSE 1000...
-
Page 5: Usage Conformant With Intended Purpose
Usage conformant with intended purpose also includes compliance with the operating manual and the inspection and maintenance specifica- tions. Drive the sweeper only along expressly marked routes and spaces. Excessive vibration due to uneven ground is to be avoided. 11/12/2017 Battery-operated suction sweeper KSE 1000... -
Page 6: Safety Information
Caution: loose clothing can be caught and drawn in on rotat- ing parts. The operating instructions provided by the battery manufac- turer relating to his product and legal specifications for the handling of accumulator batteries should be heeded! Battery-operated suction sweeper KSE 1000... - Page 7 Smoking, eating and drinking should be avoided in the vicin- ity of the battery charging station to avoid risks to health. Batteries should only be charged with the hood opened and secured with the holder. 11/12/2017 Battery-operated suction sweeper KSE 1000...
- Page 8 Device Description An electric motor drives the suction sweeper which includes forward and reverse movement. The sweeping mechanism of the KSE 1000 features two lateral brushes which carry the refuse to two sweeping rollers mounted parallel to the direction of motion.
-
Page 9: Initial Startup
Push the driving hoop and the driving linkage through the opening of the control panel. Driving hoop Driving linkage Outer plastic washer star handle Front carriage bolt Height-adjustment of the driving hoop Driving linkage Turnbuckle of the driving linkage 11/12/2017 Battery-operated suction sweeper KSE 1000... - Page 10 Should you neglect to adhere to this distance, it will result in poor sweeping or increased wear and tear of the brushes. Re-attach the main panelling. Close the main panelling. The suction sweeper is ready for operation. Battery-operated suction sweeper KSE 1000...
-
Page 11: Driving
Turn the key clockwise. The machine starts. Release the key. Moving forward: Pull the right-hand part of the driving lever upwards. The suction sweeper moves forward. 3 Driving lever 1 Moving forward 2 Driving hoop 11/12/2017 Battery-operated suction sweeper KSE 1000... -
Page 12: Sweeping Operation
3 lever for filter cleaning 4.2.2 Operatting the Sweeping Rollers Lever down = working position Lever up = sweeping rollers will not operate Start the Sweeping & Suction Machine Unlatch the lowering lever of the sweeping roller. Battery-operated suction sweeper KSE 1000... -
Page 13: Stopping Sweeping Rollers Operation
4.2.7 Operating the filter-cleaning device The filter cleaning device prevents the lamellar filter from being blocked by debris. Close the ventilation flap. 11/12/2017 Battery-operated suction sweeper KSE 1000... -
Page 14: Parking The Sweeper
Secure the machine from rolling by kicking down the brake lever of the front wheel. If the brake is relieved afterwards, the brake lever has to remain depressed position. 2 Front wheel 1 Parking brake Battery-operated suction sweeper KSE 1000... -
Page 15: Emptying The Dustbin
Underneath the dustbin are guide rollers and a recessed grip. Lower the dustbin to the ground. Pull the dustbin fully out of the suction sweeper. To empty the dustbin, insert your other hand into the recessed grip. 11/12/2017 Battery-operated suction sweeper KSE 1000... -
Page 16: Inserting The Dustbin
Raise the front dustbin guides to the height of the guide rails. Push the arrests to the side Push the dustbin into the suction sweeper. Push the arrests onto the fixing knobs of the dustbin. Dustbin arrest Dustbin guide rail Battery-operated suction sweeper KSE 1000... -
Page 17: Safety Information
The suction sweeper may only be cleaned in the off state, when it is dry. The suction sweeper is a machine with electrical components. CAUTION! Moisture damages the eletronics of the device. Moisture can result in leakage currents and short-circuits.! Do not use any high-pressure cleaners 11/12/2017 Battery-operated suction sweeper KSE 1000... -
Page 18: Replacing The Filter
Tension closure Filter frame arrest 5.3.2 Fitting the filter Place the filter on the frame. Fold the frame upwards. Push the threaded hooks over the filter frame arrests. Press the clips of the tension closures upwards. Battery-operated suction sweeper KSE 1000... -
Page 19: Replacing The Side Brush
Pull off the spring plug from the axle of the lateral brushes. 1 Borehole 2 Borehole 3 Flange of the lateral 4 Spring plug brushes Pull the side brush down and off. Replace the side brush. 11/12/2017 Battery-operated suction sweeper KSE 1000... -
Page 20: Mounting The Side Brush
To raise the lateral brushes, you will have to turn the screw of the height-adjustment of the lateral brushes counterclockwise. Set the lateral brushes to their desired position. Tighten the back nuts. Put on the main panelling. Battery-operated suction sweeper KSE 1000... -
Page 21: Sweeping Rollers Replacement
The roller swing is held in place by three star handles. Loosen the star handles. Remove the roller swing. 2 roller swing 1 open star handle 3 star handle 4 turning lever 11/12/2017 Battery-operated suction sweeper KSE 1000... -
Page 22: Installing The Sweeping Rollers
Set the front roller swing onto the free sweeping roller ends. The roller swing is equipped with two turning levers. Each turning lever end is equipped with one pick-up pin. 2 sweeping roller 1 threaded rods keyway 3 pick-up pin Battery-operated suction sweeper KSE 1000... -
Page 23: Setting The Sweeping Rollers
Lift the sweeping rollers and arrest the lowering lever of the sweep- ing rollers. Let the lever snap in arresting position. Open the hood. Secure the hood position by the hood arresting device. Remove the right side trim panel facing in the direction of motion. 11/12/2017 Battery-operated suction sweeper KSE 1000... - Page 24 Park the suction sweeper as described on page 10. Take the key out of the key-operated switch. Lift the sweeping rollers and arrest the lowering lever of the sweep- ing rollers Let the lever snap in arresting position. Battery-operated suction sweeper KSE 1000...
-
Page 25: Drive
If the driving performance is not satisfactory in reverse, check the driv- ing belt for dirt or damage. 5.7.2 Inspecting the drive Park the suction sweeper as described. Take the key out of the key-operated switch. Remove the main panelling. 11/12/2017 Battery-operated suction sweeper KSE 1000... - Page 26 (horizontal position) when the engine is running. Park the suction sweeper as described. Take the key out of the key-operated switch. Remove the main panelling. Battery-operated suction sweeper KSE 1000...
-
Page 27: Adjustment Of The Drive
Adjustment of the drive Re-adjustment is necessary due to wearing of the frictional wheel de- pending on use. Park the suction sweeper as described. Take the key out of the key-operated switch. Remove the main panelling. 11/12/2017 Battery-operated suction sweeper KSE 1000... - Page 28 The swivel lever has to push the frictional wheel against the fric- tional roller. The driving belt has to be freely movable. The suction sweeper has to move forward. Carefully actuate the driving lever to move backwards. Battery-operated suction sweeper KSE 1000...
- Page 29 If the machine "creeps" forward: turn the screw of the free wheel adjustment clockwise to tighten the pull-back spring. If the free wheel works properly again: tighten the back nuts. 11/12/2017 Battery-operated suction sweeper KSE 1000...
-
Page 30: Battery
Turn off the Sweeping & Suction Machine. Open the hood. Secure the hood position by the hood arresting device. Pull apart the red main battery connector. Connect the loading device to the loose loading plug of the suction sweeper. Battery-operated suction sweeper KSE 1000... - Page 31 Ensure that the suction sweeper is only started up if there is sufficient charge left in the batteries. The machine automatically switches off if the batteries are discharged to such an extent that damage could occur (discharge protection). 11/12/2017 Battery-operated suction sweeper KSE 1000...
-
Page 32: Maintenance Chart
Check if roller drive chain is elongated or loosened. Check all bearings for wear. Check if seals are damaged or dislocated. After each 200 operating hours also Check operation of electric motor. Check if carbon brushes are worn, replace if required. Battery-operated suction sweeper KSE 1000... -
Page 33: Malfunctions / Error Messages And Troubleshooting
Check side brushes and re- move obstacles Drive wheels obstructed Check ventilator wheel and remove any obstruction Frictional wheel worn out Jack up the Sweeping & Suc- tion Machine check differential operation of wheels and free running 11/12/2017 Battery-operated suction sweeper KSE 1000... -
Page 34: Technical Data
Electrical Installation Power supply 2 x 12 V Batterie 60 - 80 Ah K5 Running time of battery version: ca. 2,5 - 3 Std. Maximum Airborne Sound Level 71 dB(A) dB (A): Vibration < 2m/s² Battery-operated suction sweeper KSE 1000... -
Page 35: Product Marking
Stolzenberg GmbH & Co. KG Hamburger Straße 15-17 D-49124 Georgsmarienhütte Telefon: 0049 / (0)5401 83 53-0 Fax: 0049 / (0)5401 83 53-11 www.Stolzenberg.de 5.17 Transport Transport the machine only in the switched-off condition, sufficiently well fastened. 11/12/2017 Battery-operated suction sweeper KSE 1000... - Page 36 EC Machine Directive 2006/42/EC, Appendix II, No. 1A Mr. Kai Stolzenberg – Management of the Stolzenberg GmbH & Co. KG, Hamburger Straße 15-17, D-49124 Georgsmarienhütte - is authorized to arrange technical information. We hereby declare that the machine described below corresponds, in its...
