Temperature Considerations

1. VE CONNECT™ installed on non-refrigerated machines should be used in
environments where the room temperature is 74 degrees Fahrenheit or less if
the equipment is vending products that are susceptible to melting.
2. Place the vending machine at least 6" from the back wall.
3. Do not place the vending machine directly under heat generating lights, such
as Halogen spot lights.
4. If the VE CONNECT™ is being installed with a bank of machines, place the
machine on the far right or far left of the bank if possible.
5. Do not block vending machine ventilation grates and cooling fans.
6. If products are melting in a non-refrigerated machine, place those products
on the lowest possible tray. Example: chocolate, if melting, should be moved to
5th to 6th tray of the machine.

Power Considerations

The VE CONNECT™ computer module taps into the AC power running to the
machine. Plug the machines normal 3 pin grounded plug into a properly
grounded 115V 60HZ outlet only (USA). In order to comply with electrical
safety regulations and Underwriters Laboratories requirements, all electrical
equipment must be properly polarized and grounded. The VE CONNECT™
will add 1.8 Amps (200 watts) to the draw from the OEM vending machine. An
AP 113, operates at 3Amps, so an AP 113 powered by VE CONNECT™ draws
approximately 4.8Amps. Do not exceed the limit of circuit breakers in any given
location and outlet. Turning on the power to the machine, and thereby the VE
CONNECT™, varies by manufacturer.

Adding Payment Systems

The UCB™ features a standard MDB connection, accessible on the inside of the
door near the payment slots. Install payment systems as you would in other
vending machines as there is no difference in this regard. If you are installing
a credit card swipe system, such as the EPort®, make sure the connection
is between the bill acceptor and the coin changer. Place the antenna for
dedicated swipe systems and terminals on the inside of the vending door. The
VE CONNECT™ router does not negate the need for a separate wireless modem
in processing credit card transactions, contact provider for additional details.

Filling Machine

Once you have confirmed that tray
configuration is optimal for the
products, you are ready to load your
products to the trays. It is highly
recommended that you refer to the
OEM user's manual for information on
proper filling techniques.

Internet Connection

VE CONNECT™ requires an internet
connection to get the most out of
the system features. New product
images, advertisements, and even
important system updates all rely
on an internet connection in order
to function. There are three ways to
get internet to the VE CONNECT™ :
Ethernet cable, Wi-Fi, and cellular.

Ethernet Cable (RJ45)

If a hard wired Ethernet connection
is near the equipment, then the CPU
module should be directly connected
to the internet. Using the included keys, unlock the CPU module box. Feed the
Ethernet cable through one of the slots on the perimeter of the box. Loosen
the kepnuts that are holding the metal bracket, feed the cable into the box, and
plug into the RJ45 jack found on the CradlePoint device (see figure). Do not
connect the cable directly to the motherboard, as the correct port is critical to
proper remote management.
| 7

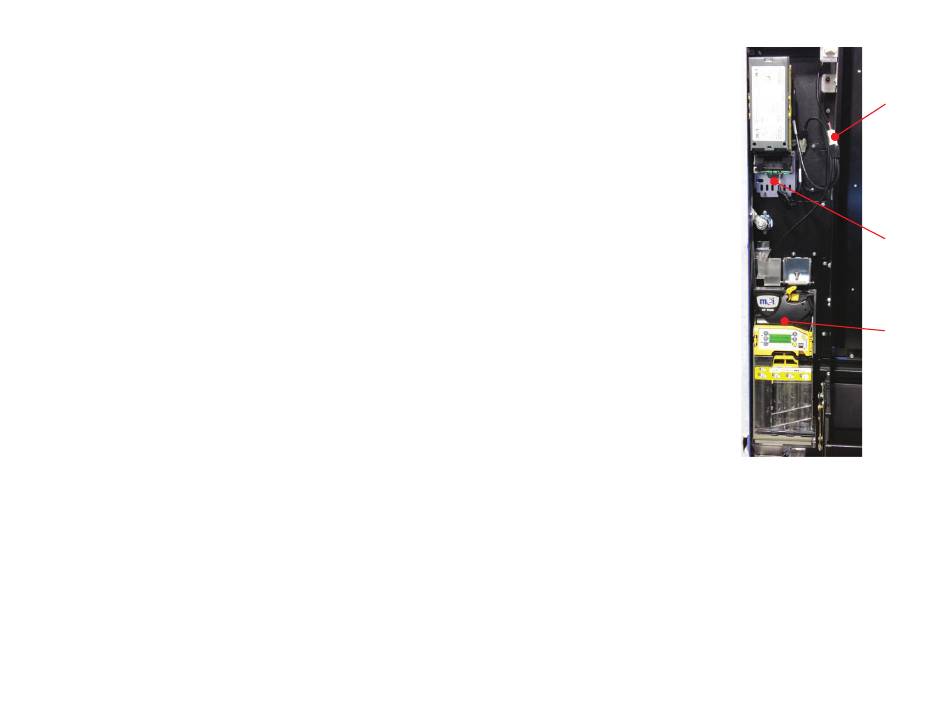

MDB CABLE
FROM UCB
BILL
ACCEPTOR
COIN
CHANGER
