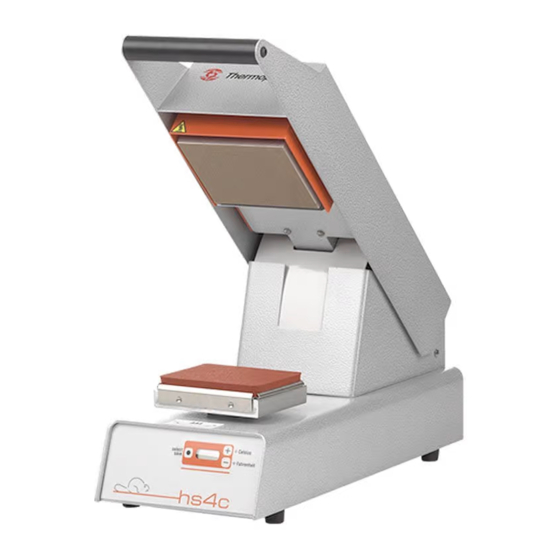

HS-4-C
HS-4-C
User Manual
V .2.1 ENG
March 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HS-4-C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Thermopatch HS-4-C

Summary of Contents for Thermopatch HS-4-C

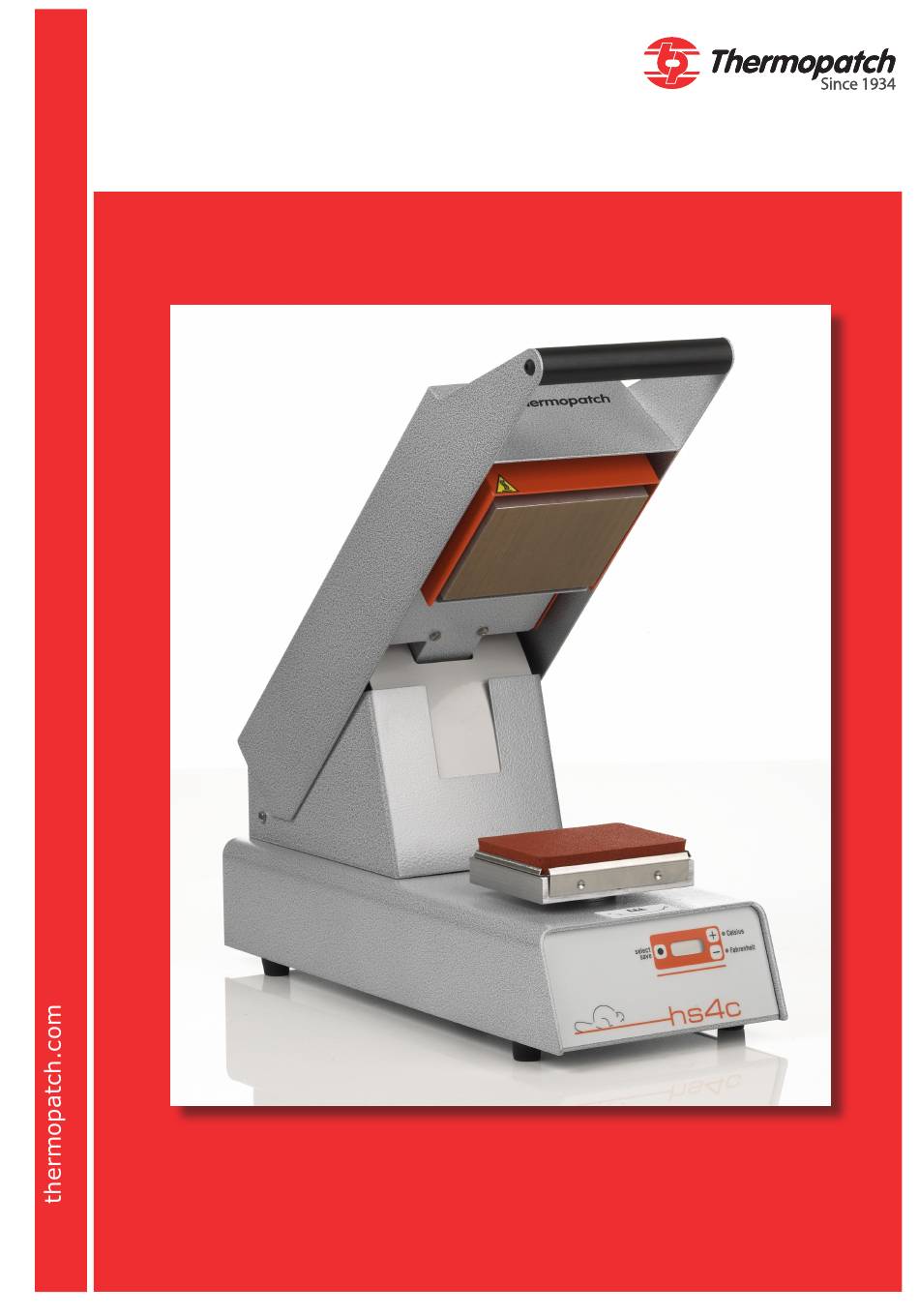

  • Page 1 HS-4-C HS-4-C User Manual V .2.1 ENG March 2020...

  • Page 2: Copyrights

    No part of this publication may be reproduced by any means without the prior written permission of Thermopatch bv, the Netherlands. Thermopatch and the Thermopatch logo, Thermoseal and Thermocrest are registered trademarks of Thermopatch. Manual HS-4-C V.2.1 ENG Original Version QC/TDPT/mn March 2020...

  • Page 3: Preface

    This manual was written for the benefit of all users and technicians who install and maintain the machine. You will find information on operating, safety and maintenance as well as spare parts and supplies. Manual HS-4-C V.2.1 ENG Original Version QC/TDPT/mn March 2020...

  • Page 4: Table Of Contents

    3.1 Starting Up 3.2 Functionality 4. Maintenance 4.1 General 5. Possible Faults 5.1 Problem Analysis And Solutions 5.2 Error Codes 6. Supplies 6.1 Most Commonly Used Parts 6.2 Parts Identification And Location... Manual HS-4-C V.2.1 ENG Original Version QC/TDPT/mn March 2020...

  • Page 5: Ec-Declaration Of Conformity

    Thermopatch Thermoseal HS-4-C, which this declaration refers to, is in accordance with the conditions of the following Directive(s): 2014/35/EG (Low voltage directive) 2014/30/EG (EMC directive) The Netherlands, Almere, 30-05-2015 Jan Bausch, Director Manual HS-4-C V.2.1 ENG Original Version QC/TDPT/mn March 2020...

  • Page 6: Introduction

    1. Introduction 1.1 WHAT DID YOU RECEIVE? The HS-4-C has been packed in a cardboard box. The following articles should have been delivered: • HS-4-C heat seal machine • Electrical power cable • User’s Guide on CD-ROM If one of these articles is missing, please contact our customer service or your Thermopatch supplier.

  • Page 7: Safety

    Pull the fabric tightly over the sealing pad. 1.6 CONDITIONS OF WARRANTY AND PRODUCT LIABILITY Thermopatch points to its warranty and product liability condi- tions as laid down in our sales conditions. These can be ob- Manual HS-4-C V.2.1 ENG Original Version QC/TDPT/mn March 2020...

  • Page 8: Installation

    Thermopatch supplier. 2.1 INSTRUCTION FOR HANDLING The HS-4-C has been packed in a cardboard box. If you need the relocate the machine at a later point, we advise you to pack the machine in a similar fashion. Let the machine cool down completely before packing and moving it.

  • Page 9: Operating The Hs-4-C

    (3.15 A). 3.1 STARTING UP You can start operating the Thermoseal HS-4-C as soon as it is connected to the electricity mains. Switch on the HS-4-C by pressing the on/off (I-0) switch, which is placed on the back of the machine, to “on (I)”.
  • Page 10 Procedure to change desired Sealing Cycle Time: The SEALING CYCLE TIME of the HS-4-C heat seal machine has been set at the factory to 12 seconds. To change the SEALING CYCLE TIME, please follow the procedures below: 1. Press the select/save button twice.

  • Page 11: Maintenance

    Thermopatch supplier. Lubrication: Normally the machine does not require lubrication. However when the Sealing Arm Handle is slow to rise, lubricating the pivots and rotating parts will help the Sealing Arm Handle. Manual HS-4-C V.2.1 ENG Original Version QC/TDPT/mn March 2020...

  • Page 12: Possible Faults

    • Teflon shield soiled or worn. • Decrease time in 2 second • Too much time. increments.` Bleed through. • Decrease pressure in one • Too much pressure. half turn increments. Manual HS-4-C V.2.1 ENG Original Version QC/TDPT/mn March 2020...

  • Page 13: Error Codes

    The processor has no access to the memory for saving or read- ing of information. Error 4 (HS-4-C only) = Motor timed out, not in position or motor switch error The correct position of the Cam Arm Motor cannot be detected.

  • Page 14: Supplies

    Power Entry Module ITEM DESCRIPTION Part Num- Electrical Chassis 46326 Power Entry Module Assembly (without 46453 fuses) Fuse Drawer P/O 46453 230 VAC 3.15 AMP Fuses 20015-16 Figure 5 – Power Entry Module Manual HS-4-C V.2.1 ENG Original Version QC/TDPT/mn March 2020...
  • Page 15 Controller Board ITEM DESCRIPTION Part Num- Electrical Chassis 46326 #4-40unc x ¼” Socket Hex Cap Screw 21063-02-C #4 Spring Lockwasher 21031-03-C Controller Board 46411 Figure 6 – Controller Board Manual HS-4-C V.2.1 ENG Original Version QC/TDPT/mn March 2020...
  • Page 16 Cap Screw M5 Hex Nut 21045-07-A M5 Spring Lockwasher 21046-06 Pivot Block 46378 Pivot Block Pin 46379 Heater Unit Assembly SPAHS40000 Teflon Cover 46375 Compression Spring 24075-36 Figure 7 – Heater Element Manual HS-4-C V.2.1 ENG Original Version QC/TDPT/mn March 2020...
  • Page 17 Platen Assembly ITEM DESCRIPTION Part Num- Platen Assembly 43941 Rotating Platen Base 43663 Figure 8 – Platen Assembly Manual HS-4-C V.2.1 ENG Original Version QC/TDPT/mn March 2020...
  • Page 18 Extension Spring Assembly ITEM DESCRIPTION Part Num- Extension Spring 24080-35 Bumper 24091-44 Base Frame Assembly 47263 Figure 9 – Extension Spring Assembly Manual HS-4-C V.2.1 ENG Original Version QC/TDPT/mn March 2020...
  • Page 19 21023-01 #10 Spring Lockwasher 21012-07-C #10-32unc x 3/8” Socket Hex Cap Screw 21063-03-J Gas Spring Ball Joint 24901-77 5/16” Spring Lockwasher 21021-10-C Retaining Ring D-9706 Figure 10 – Gas Spring Mounting Manual HS-4-C V.2.1 ENG Original Version QC/TDPT/mn March 2020...
  • Page 20 21063-03- #8 Spring Lockwasher 21021-06-C Cam Arm Switch Bracket 47187 #10-32unf x 3/16” Set Screw, Socket Hex 21011-04- Cup Point Cam Release Lobe 46408 Figure 11 – Seal Arm Release Mechanism Manual HS-4-C V.2.1 ENG Original Version QC/TDPT/mn March 2020...
  • Page 21 E Style ¼ ” Diameter Retaining Ring D-9702 24 Tooth Gear Assembly 46493 E Style 5/8” Diameter Retaining Ring 21025-28 24 Tooth Gear Pivot Shaft 46492 Figure 12 – Press Arm Assembly Manual HS-4-C V.2.1 ENG Original Version QC/TDPT/mn March 2020...
  • Page 22 Electrical Wiring Schematic HS3C, HS3CES and HS4C Figure 13 – Schematic Manual HS-4-C V.2.1 ENG Original Version QC/TDPT/mn March 2020...
  • Page 23 Thermopatch European Headquarters The Netherlands T +31 36 549 11 11 F +31 36 532 03 98 sales@thermopatch.nl Thermopatch Australia Pty Ltd Australia T +61 395325722 F +386 2 80 55 232 marktpatchaust@bigpond.com.au V . 2.0 ENG Thermopatch Canada Inc...
