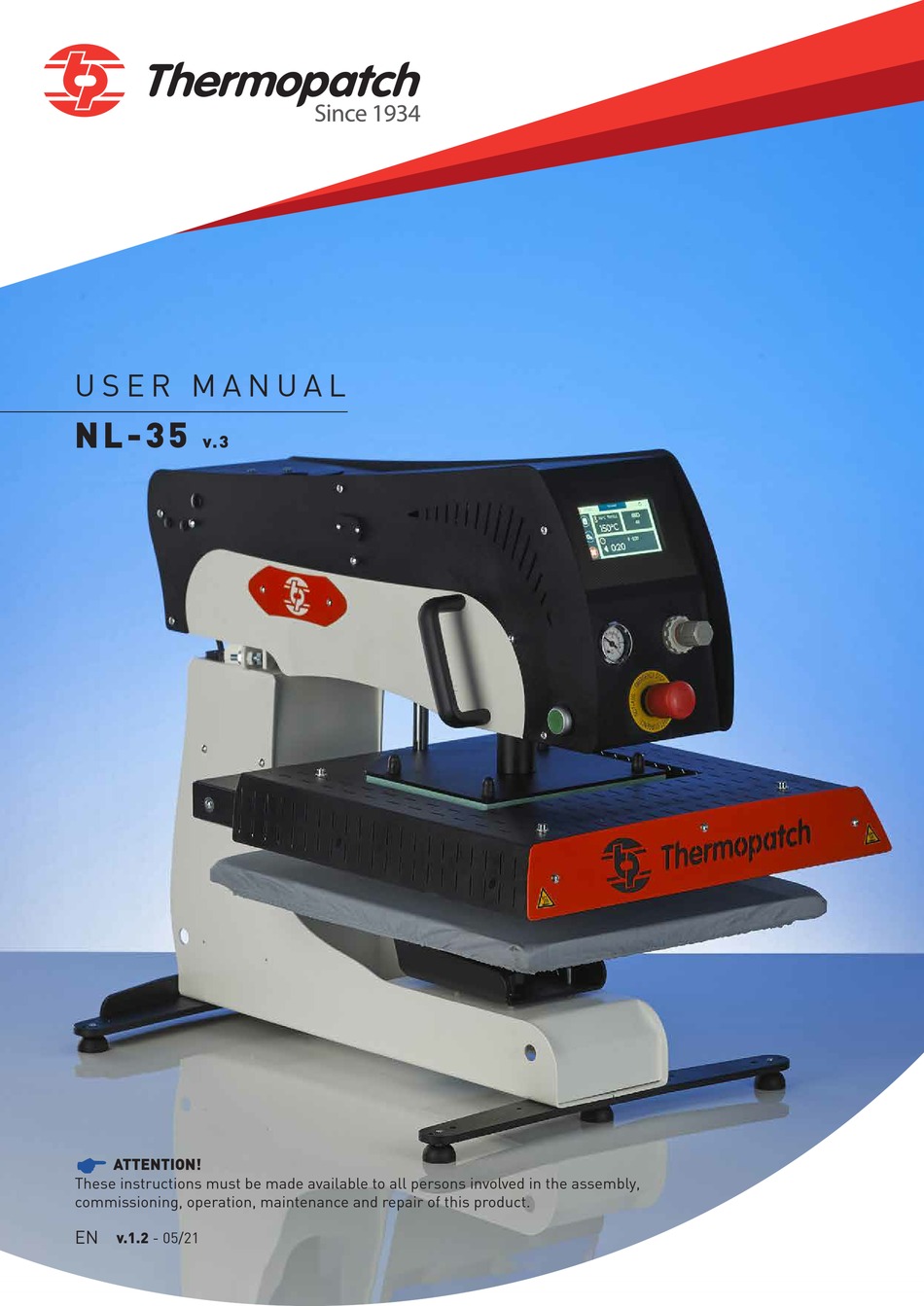

- Page 1 U S E R M A N U A L NL- 3 5 v. 3 ATTENTION! These instructions must be made available to all persons involved in the assembly, commissioning, operation, maintenance and repair of this product. v.1.2 - 05/21...
-
Page 2: Copyrights
ATTENTION! In order to make safe and optimal use of the NL-35 v.3 it is important to take notice of - and understand the contents of this manual. BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com... -
Page 3: Table Of Contents
Transport and storage Transport Storage Maintenance Technical annexes (English) Spare Parts Troubleshooting Electric diagram Pneumatics diagram End of life Declaration of Conformity CE and UKCA Disclaimer For more information about our products and how to contact us, please visit thermopatch.com... -
Page 4: General Description

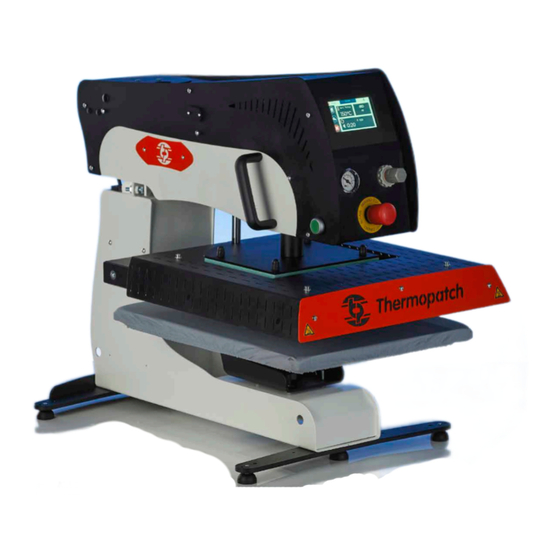

1. General description The pneumatic NL-35 v.3 is a practical, universal heat seal machine. Textile labels, emblems, repair patches, transfers, in short all Thermopatch materials for marking and repair are easily and durably pressed onto textile fabrics. 1.1 Delivery The NL-35 v.3 machines are delivered on a pallet covered with a wooden crate. -
Page 5: Assembly And Installation
2. Electrical installation (1) Take the NL-35 v.3 out of the box and place the machine on a stable work table in the vicinity of a grounded socket. The NL-35 v.3 is connected to the power supply (230 V alternating current) with the supplied mains cable. -
Page 6: Operating Instructions
4.2.1 Sealing time and temperature settings Presets (c) Current temperature Setpoint temperature (b) Counter & Mode Settings (d) Stop cycle Pressing time (a) BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com... -
Page 7: Pressing Time
BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com... -
Page 8: Settings
Switch the 2-second end-of-cycle notification signal on or off. Choose 1 (OFF), 2 or 4 different timers. Internal clock setting (date and time). Operating temperature range setting. Screen backlight setting. BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com... - Page 9 The diagnostic button brings up the machine status so you can see if there are currently any malfunctions. The padlock icon can only be accessed by an approved service technician. BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com...
-
Page 10: List Of Alarms/Events
Alarm 13: start at second request (forced start despite Temperature not reached setpoint not being reached). Press the red/orange area to clear the fault. BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com... -
Page 11: Error Messages
If the machine automatically opens, press the button to turn it off. If the machine does not rotate to open automatically, press the button to turn it on. Button inside for (de-)activating the automatic headswing BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com... -
Page 12: Overview Of Safety Measures And Warnings
5. Overview of safety measures and warnings 5.1 Safety The NL-35 v.3 is equipped with all mandatory safety requirements that apply according to the European guidelines for machine safety. The emergency stop button As required in the guidelines for machines, the machine is provided with an emergency stop button. - Page 13 ATTENTION! Make sure you are informed about the contents of this manual before starting to work with the NL-35 v.3. This ensures an optimal and safe use of the machine. ATTENTION! Always turn the power off (unplug it) when you need to carry out maintenance work or when cleaning the machine.
-
Page 14: Technical Specifications
Compressed air consumption @ 8 bar 6.37 L/cycle Pre-pressure > 3 bar - <8 bar Maximum pressing force 628 DaN at 8 bar BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com... -
Page 15: Transport And Storage
If the machine has to be stored, Thermopatch recommends using the original packaging. The machine must be stored off the ground, preferably on a pallet in dry conditions. BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com... -
Page 16: Maintenance
Rubber cushion: Clean the still warm rubber plate with a clean, lint-free cloth. Clean it as often as necessary. Damaged or soiled rubber sheets must be replaced. These are available from your Thermopatch supplier. Replacing the rubber cushion: • Turn off the device and allow it to cool •... - Page 17 Open fuse box and replace fuses here Loosen the gray cap underneath and let out any debris BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com...
-
Page 18: Technical Annexes (English)
AIR FILTER SPA3X-206 SOLENOID CONTROL VALVE 5/2 G1/8 12V TEFLON and SILICONE RUBBER SPA3X-100-7 FOAM 9.53 mm 400 x 500 SPA3X-006/E TEFLON SHEET BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com... -
Page 19: Troubleshooting
Check the seals and all connections, contact your supplier The press head stays down after The timer is not counting down See above pressing BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com... -
Page 20: Electric Diagram
9.2 Electrical diagram BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com... -
Page 21: Pneumatics Diagram
9.3 Pneumatic diagram BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com... -
Page 22: End Of Life
Directive(s): 2014/30/EU (emc directive) 2006/42/EG (machinery directive) Netherlands, Almere, 01-01-2021 Jan Bausch, Director BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com... -
Page 23: Disclaimer
Thermopatch BV, its subsidiaries, the directors, employees, and agents cannot be held liable for the use and reliance of the opinions and findings in this document. - Page 24 Thermopatch BV Draaibrugweg 14 1332 AD Almere The Netherlands T +31 36 549 11 11 sales@thermopatch.nl www.thermopatch.com...
