  • Page 1 U S E R M A N U A L HS - 4 - C v.2.2 - 01/22...

  • Page 2: Copyrights

    Congratulations and welcome to the ever growing number of Thermopatch users.You have acquired a machine which has been manufactured by Thermopatch with the greatest possible care. We are confident that you will be enjoying the use of this machine for a long time.

  • Page 3: Table Of Contents

    Technical annexes ................................................Most commonly used parts ..........................................Parts identification and location of components by name ........................End of life ....................................................... Declaration of Conformity ........................................... Disclaimer ...................................................... For more information about our products and how to contact us, please visit thermopatch.com...

  • Page 4: Introduction

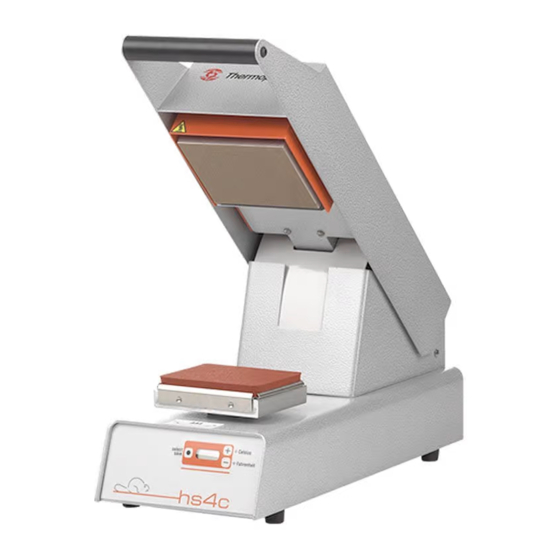

    1. General description 1.1 What did you receive? The HS-4-C has been packed in a cardboard box. The following articles should have been delivered: • HS-4-C heat seal machine • Electrical power cable If one of these articles is missing, please contact our customer service or your Thermopatch supplier.

  • Page 5: Safety

    • Pull the fabric tightly over the sealing pad. 1.6 Conditions of warranty and product liability Thermopatch points to its warranty and product liability conditions as laid down in our general conditions. These can be obtained at your Thermopatch supplier.

  • Page 6: Installation

    2.1 Instruction for handling The HS-4-C has been packed in a cardboard box. If you need the relocate the machine at a later point, we advise you to pack the machine in a similar fashion. Let the machine cool down completely before packing and moving it.

  • Page 7: Operating The Hs-4-C

    Heater Element and no changes will be saved. Procedure to change desired Sealing Cycle Time: The SEALING CYCLE TIME of the HS-4-C heat seal machine has been set at the factory to 12 seconds. To change the SEALING CYCLE TIME, please follow the procedures below: 1.
  • Page 8 Extreme pressure may severly damage the machine. Difficuly in locking the Seal Arm Handle of the HS-4-C machine in a closed position is anindication of too much inter-platen pressure. To prevent excess pressure when sealing thick garments, screw the Lower Press Platen all the way down.

  • Page 9: Maintenance

    Teflon cover (like a used band-aid). Then carefully remove any glue residue that was left behind. Make sure that all residue is removed and the metal surface is clean, before placing the new cover, without bubbles. Teflon covers and sealing pads can be obtained at your Thermopatch supplier. Lubrication: Normally the machine does not require lubrication.

  • Page 10: Faults

    • Too much time. • Decrease time in 2 second increments. • Too much pressure. • Decrease pressure in one half turn increments. BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com...

  • Page 11: Error Codes

    Error 3 = Error in Eprom: the processor has no access to the memory for saving or reading of information. Error 4 (HS-4-C only) = Motor timed out, not in position or motor switch error:The correct position of the Cam Arm Motor cannot be detected. Rotate the Cam Arm Motor Shaft checking actuation of the Motor Detection Switch.

  • Page 12: Technical Annexes

    Power Entry Module Assembly (without fuses) 46453 Fuse Drawer P/O 46453 230 VAC 3.15 AMP Fuses 20015-16 Figure 5 – Power Entry Module BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com...
  • Page 13 Electrical Chassis 46326 #4-40unc x ¼” Socket Hex Cap Screw 21063-02-C #4 Spring Lockwasher 21031-03-C Controller Board 46411 Figure 6 – Controller Board BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com...
  • Page 14 21046-06 Pivot Block 46378 Pivot Block Pin 46379 Heater Unit Assembly SPAHS40000 Teflon Cover 46375 Compression Spring 24075-36 Figure 7 – Heater Element BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com...
  • Page 15 Assembly into place over rotating Platen Base Item # Description Part Number Platen Assembly 43941 Rotating Platen Base 43663 Figure 8 – Platen Assembly BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com...
  • Page 16 Item # Description Part Number Extension Spring 24080-35 Bumper 24091-44 Base Frame Assembly 47263 Figure 9 – Extension Spring Assembly BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com...
  • Page 17 #10-32unc x 3/8” Socket Hex Cap Screw 21063-03-J Gas Spring Ball Joint 24901-77 5/16” Spring Lockwasher 21021-10-C Retaining Ring D-9706 Figure 10 – Gas Spring Mounting BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com...
  • Page 18 Cam Arm Switch Bracket 47187 #10-32unf x 3/16” Set Screw, Socket Hex Cup Point 21011-04-K Cam Release Lobe 46408 Figure 11 – Seal Arm Release Mechanism BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com...
  • Page 19 24 Tooth Gear Assembly 46493 E Style 5/8” Diameter Retaining Ring 21025-28 24 Tooth Gear Pivot Shaft 46492 Figure 12 – Press Arm Assembly BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com...
  • Page 20 HS3C/4C Series MTR - AC Motor Electrical Schematic - Solid State Relay 230 Volt - Temperature Sensor Revision B Figure 13 – Schematic BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com...

  • Page 21: End Of Life

    Thermopatch BV Draaibrugweg 14 1332 Almere The Netherlands herewith declare, on our own responsibility, that the applyance: Thermopatch HS-4-C, which this declaration refers to, is in accordance with the conditions of the following Directive(s): 2014/35/EU (low voltage directive) 2014/30/EU (emc directive)

  • Page 22: Disclaimer

    Thermopatch BV, its subsidiaries, the directors, employees and agents cannot be held liable for the use and reliance of the opinions and findings in this document.
