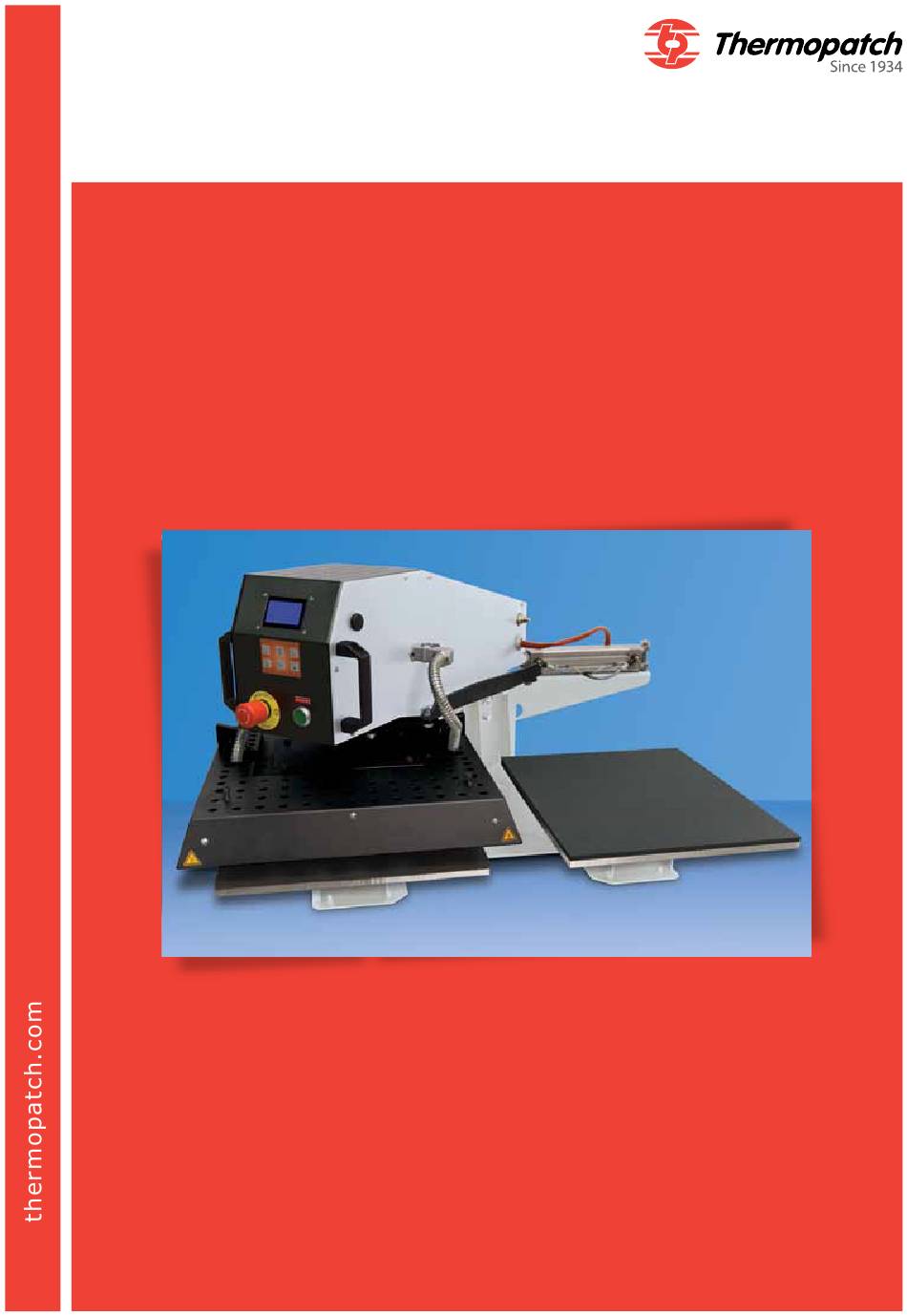

- Page 1 NL-33 AUTO User manual Jan 2012...
- Page 2 Copyrights © 2011, Thermopatch bv, Almere, The Netherlands. No part of this publication may be reproduced by any means without the prior written permission of Thermopatch bv, The Netherlands. Thermopatch and the Thermopatch logo, Thermoseal and Thermocrest are registered trademarks of Thermopatch.
-
Page 3: Preface
Preface Dear user, Welcome to the growing group of Thermopatch users. The product you have purchased has been carefully designed and manufactured to ensure that you, the user, will gain the maximum benefit. All Thermopatch products are specifically designed to ensure ease of use with particular attention to safety requirements. -
Page 4: Table Of Contents
Table of Contents Preface EC-Declaration of Conformity Introduction 1.1 WhAT DiD yoU receive? yoUr SUpplier 1.3 SpecificATioNS of The ThermoSeAl Nl-33 AUTo SAfeTy coNDiTioNS of WArrANTy AND proDUcT liAbiliTy Installation iNSTrUcTioN for hANDliNg iNSTAlliNg AND coNNecTiNg The Nl-33 AUTo ASSembly III. -
Page 5: Ec-Declaration Of Conformity
Draaibrugweg 14 1332 Almere The Netherlands herewith declare, on our own responsibility, that the machinery: marking machine Thermopatch Thermoseal NL-33 AUTO, which this declaration refers to, is in accordance with the conditions of the following Directive(s): 2006/42/eg (machinery directive) 2004/108/eg... -
Page 6: Introduction
Thermopatch materials suited for marking and mending of textiles and technical fibres. The Thermoseal NL-33 AUTO is to be operated with the fitted foot pedal. Temperature, time and pressure are presented on the display and can be adjusted. - Page 7 0 sec. to 30 min Attention! To obtain the required sealing pressure, the Nl-33 AUTo has to be connected to a compressor with a working pressure of at least 6 bars. The air has to be clean and dry. ...
-
Page 8: Safety
• Pull the fabric tightly over the sealing pad. 1.5 CONDITIONs Of WArrANTy AND PrODUCT LIAbILITy Thermopatch points to its warranty and product liability conditions as laid down in our sales conditions. These can be obtained at your Thermopatch supplier. -
Page 9: Installation
II. Installation 2.1 INsTrUCTION fOr hANDLINg The NL-33 AUTO has been packed in a wooden crate and fixed to a pallet. if you need to relocate the machine at a later point, we advise you to pack the machine in a similar fashion. -
Page 10: Operating The Nl-33 Auto
III. Operating the NL-33 AUTO cover + filter + pressing communication general switch & electronic board jack regulator port fuse pneumatic plug lcD display (Time + T°) keypad rotation jack emergency stop reset button heAT plate with security cover Silicon rubber... -
Page 11: Starting Up
3.1 sTArTINg UP you can start operating the Nl-33 AUTo as soon as it is connected to the electricity mains. Set the air pressure. Take note of the conditions and working instructions as stated in chapter 2. Switch on the Nl-33 AUTo by pressing the on/off (i-0) switch, which is placed on the left side of the machine, to “on (i)”. -
Page 12: Use Of The Machine Nl-33 Auto
Activate the Nl-33 AUTo by pressing the foot pedal. As soon as the press head is in position it will lower onto the lower platen and the timer will count down. -
Page 13: Press Setting
v. Press setting 5.1 TEmPErATUrE sETTINgs / PrEssINg TImE These parameters have to be programmed in the control electronic card with the keyboard situated on the front (the parameters will scroll on the display unit next to it). TemperATUre SeTTiNg •... - Page 14 TO sET UP rEsETAbLE COUNTEr: press - > reset counter > press ok (or Set up to cancel) TO sET UP PErmANENT COUNTEr: : not modifiable TO sET UP PrE-hEATINg: press ok, then + to modify oN/off Note: pre-heating time will be able only if pre-heating parameter is oN.
-
Page 15: Press Head Rotation Speed Adjustment
if the automatic mode and the one plate mode are deactivat- ed, the machine will run in normal mode. push 3 times on Set up to go back to the main screen. regulation of « the timer after pressing » : used only in auto- matic mode: push Set up -->... -
Page 16: Machine Layout
vI. machine layout Sealing cylinder Sealing solenoid valve Safety sensors Terminal bars Turning solenoid valve Filter + Pressure Cylinder stop regulator Turning adjuster Pressure gauge Electric Air network connector + fitting fuses NOTE: The electronic board is under the cover, removed above Regulation board Sealing cylinder... -
Page 17: Electric And Pneumatic Diagram
vII. Electric and Pneumatic Diagram ELECTRO-DISTRIBUTOR JACK Ø100-C50 ELECTRIC-CARD CT/N SILENCER SILENCER REDUCTOR REDUCTOR PNEU. SUPPLY 10 BAR MAXI MANO JACK STOPPER FILTRE REGULATEUR PNEUMATIC DIAGRAM NL 33 PNEUMO ENSEMBLE PRESS BUTTON 1 Fin de Course BAS PRESS BUTTON 2 screen 4+5: ON T°... -
Page 18: Service
vIII. service UNPLUG THE MACHINE FROM THE ELECTRICITY AND AIR SUPPLY BEFORE SERVICING! it is recommended to have the following tools within reach: • Phillips - and bit screwdrivers; • A set of end wrenches and box spanners; • Small adjustable pliers; •... -
Page 19: Replacement Of Worn Parts
8.3 mAINTENANCE The heat seal press Nl-33 AUTo requires hardly any maintenance. To ensure a good functioning, follow the preventive notice indicated below: - Do not heat up objects which could deteriorate or even... -
Page 20: Error Code Listing
8.4 ErrOr CODE LIsTINg: SSh/b : heAT SeNSor DefecT high/bottom rrh/S : reSiSTor out of service high/bottom : overshoot 30°c of order : fall out of 30°c of order : Sensor still activate at end cycle TriAc : TriAc defect Time oUT : Time out to get temperature order, heating defect... -
Page 21: Possible Breakdowns
8.5 POssIbLE brEAKDOWNs UNPLUG THE MACHINE FROM THE ELECTRICITY AND AIR SUPPLY BEFORE SERVICING! Symptoms Possible breakdowns Repairs • The plug is not in. • Put the plug into the wall socket. • The switch is not connected. • Switch the On - Off switch to “ON”(I). •... - Page 22 +1 315 445-8046 sales@thermopatch.com Thermopatch european headquarters The Netherlands T +31 36 549 11 11 f +31 36 532 03 98 sales@thermopatch.nl Thermopatch Australia pty ltd Australia T +61 395325722 f +386 2 80 55 232 marktpatchaust@bigpond.com.au Thermopatch canada inc canada...
