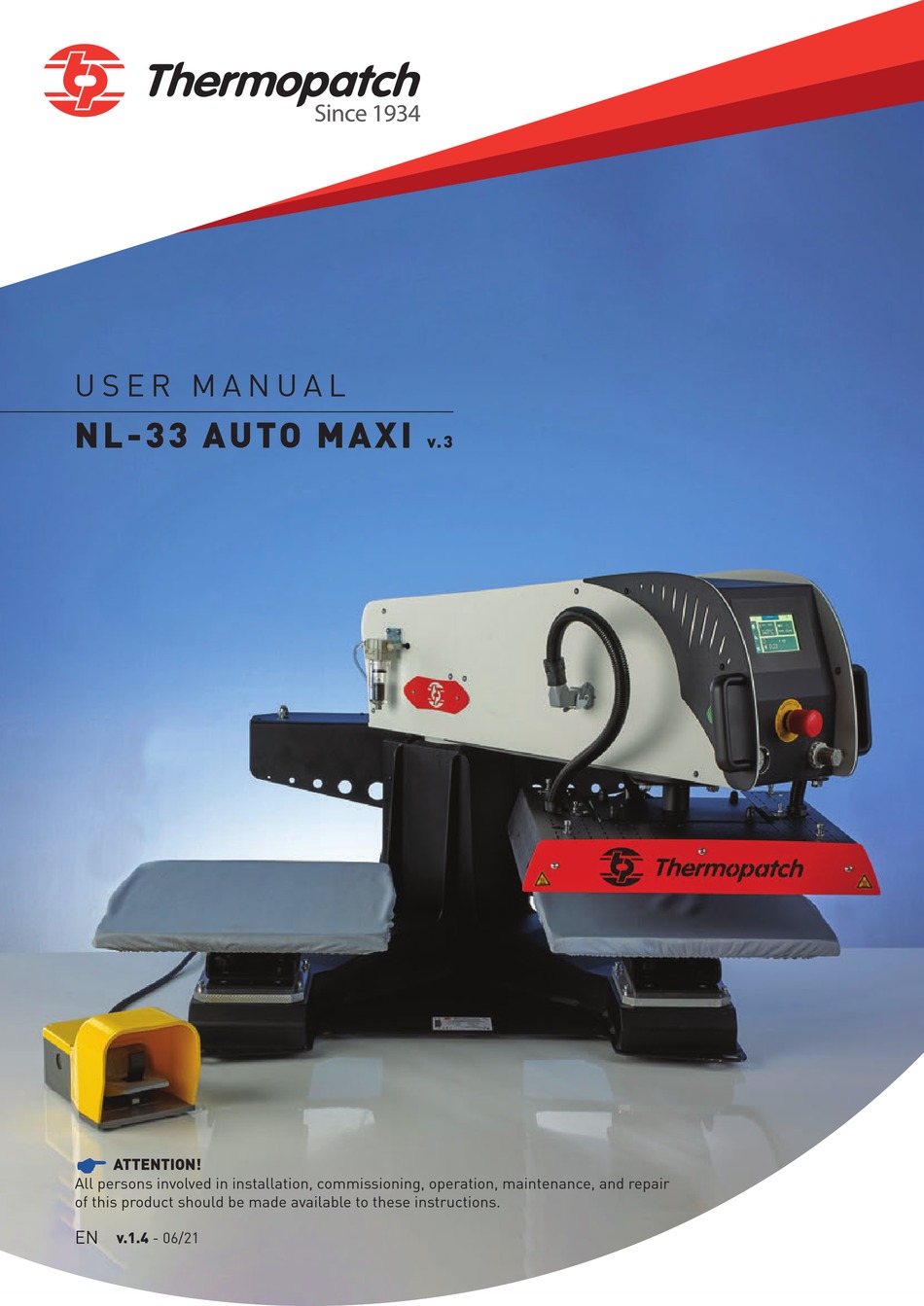

- Page 1 U S E R M A N U A L NL- 3 3 A UTO MAX I v. 3 ATTENTION! All persons involved in installation, commissioning, operation, maintenance, and repair of this product should be made available to these instructions. v.1.4 - 06/21...
-
Page 2: Copyrights
In order to make safe and optimal use of the NL-33 v.3 Auto Maxi it is important to take notice of - and understand the contents of this manual. BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com... -
Page 3: Table Of Contents
Operating Cycle Numbers of timers Overview of safety measures and warnings Safety Technical specifications Specifications of the NL-33 v.3 Auto Maxi Overview Transport and Storage Transport Storage For more information about our products and how to contact us, please visit thermopatch.com... - Page 4 Maintenance 10.1 Maintenance 10.2 Replacement parts list 10.3 Troubleshooting 10.4 Electrical wiring diagram 10.5 Pneumatics diagram End of life Declaration of Conformity CE and UKCA Disclaimer For more information about our products and how to contact us, please visit thermopatch.com...
-
Page 5: General Description
1. General description The pneumatic NL-33 v.3 Auto Maxi is a practical, universal heat seal machine. Textile labels, emblems, repair patches, transfers, in short, all Thermopatch materials for marking and repair are easily and durably pressed onto textile fabrics. 1.1 Delivery The NL-33 v.3 Auto Maxi machines are delivered on a pallet covered with a wooden crate. -
Page 6: Assembly And Installation
Do not transport the machine by lifting it by the plates! This will cause damage to the machine. 905 mm 713 mm 1180 mm 1000 mm 891 mm 1099 mm BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com... - Page 7 • Connect the compressed air supply with a minimum pressure of 4 bar. • Store the lifting bars for future use. See point 3 Removing the security screw BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com...
-
Page 8: Electrical Installation
8 bar. Connect an air tube with a diameter of 6 mm to the locally provided air pressure system and connect it to the water separator / pressure regulator of the NL-33 v.3 Auto Maxi. BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com... -
Page 9: Operating Instructions
4.2.1 Sealing time and temperature settings Presets (c) Current temperature Setpoint temperature Counter & Mode Settings (d) Stop cycle Pressing time (a) Next pressing time BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com... -
Page 10: Pressing Time
The second counter shows the total number of items printed since the machine was installed. This count is permanent and cannot be reset. BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com... -
Page 11: Presets
Press icon (e) in the main menu to go to the machine settings. There are 6 available options. The gear wheel button lets you change the machine’s technical aspects. BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com... - Page 12 The diagnostic button brings up the machine status so you can see if there are currently any malfunctions. The padlock icon can only be accessed by an approved service technician. BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com...
-
Page 13: Error Messages
Display connection alarm Relais switches off Each warning signal is accompanied by a sound signal that can be silenced by pressing a button. BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com... -
Page 14: Diagnosis
2. Outputs 3. Temperature in ° Celsius or ° Fahrenheit 4. Alarm in progress: access summary page alarms 5. Back to previous page BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com... -
Page 15: Alarms And Warnings
1. Blinking indicator for active fault 2. Access to the Default page (flashin LED) 3. Back to MENU BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com... -
Page 16: Summery Alarms And Incidents
Blocks first cycle start request. Permits cycle Alarm 13: start at second request (forced start despite Temperature not reached setpoint not being reached BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com... -
Page 17: Operating Cycle
This automatic cycle will continue until interrupted by pressing the STOP ( ) icon, pressing the footswitch or pressing the any one of the green manual control buttons. BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com... -
Page 18: Numbers Of Timers
• At the next cycle start, the next timer will be the first. • Each separate timer is not linked to the working position. BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com... -
Page 19: Overview Of Safety Measures And Warnings
As required in the guidelines for machines, the machine is provided with an emergency stop button. Press in case of emergency! Turn the knob counter-clockwise to unlock again and the machine will reset automatically. BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com... - Page 20 Pull the fabrics tight around the press pad and ensure that your hands are away from the sealing pad before operating the machine. BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com...
-
Page 21: Technical Specifications
Compressed air consumption @ 6 bar 20,70 L/cycle Compressed air consumption @ 8 bar 26,62 L/cycle Pressure 2 - 7,5 bar Maximum pressing force 925 DaN BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com... -
Page 22: Overview
Green button for manual control (left and right side) Heating plate with safety frame 2 x exchangeable sealing plates with silicone rubber cushions BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com... -
Page 23: Transport And Storage
If the machine must be stored, Thermopatch recommends using the original packaging. The machine must be stored off the ground, preferably on a pallet in dry conditions. BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com... -
Page 24: Maintenance
Rubber cushion: Clean the still warm rubber plate with a clean, lint-free cloth. Clean it as often as necessary. Damaged or soiled rubber sheets must be replaced. These are available from your Thermopatch supplier. Replacing the rubber cushion: • Turn off the device and allow it to cool •... -
Page 25: Replacement Parts List
Teflon sheet 400 x 500 mm SPA3X-106-2 Nomex cover for standard lower plates SPA3X-100/I Aluminium base 400 x 500 mm for lower plates BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com... -
Page 26: Troubleshooting
Check the seals and all connections, contact your supplier The press head stays The timer is not counting down See above down after pressing No compressed air provided BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com... -
Page 27: Electrical Wiring Diagram
10.4 Electrical wiring diagram BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com... -
Page 28: Pneumatics Diagram
10.5 Pneumatics diagram BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com... -
Page 29: End Of Life
Draaibrugweg 14 1332 Almere Netherlands herewith declare, on our own responsibility, that the machinery: Thermopatch NL-33 v.3 Auto Maxi pneumatic heat seal machine which this declaration refers to, is in accordance with the conditions of the following Directive(s): 2014/30/EU (emc directive) -
Page 30: Disclaimer
Thermopatch BV, its subsidiaries, the directors, employees, and agents cannot be held liable for the use and reliance of the opinions and findings in this document. - Page 31 Thermopatch BV Draaibrugweg 14 1332 AD Almere The Netherlands T +31 36 549 11 11 sales@thermopatch.nl www.thermopatch.com...
