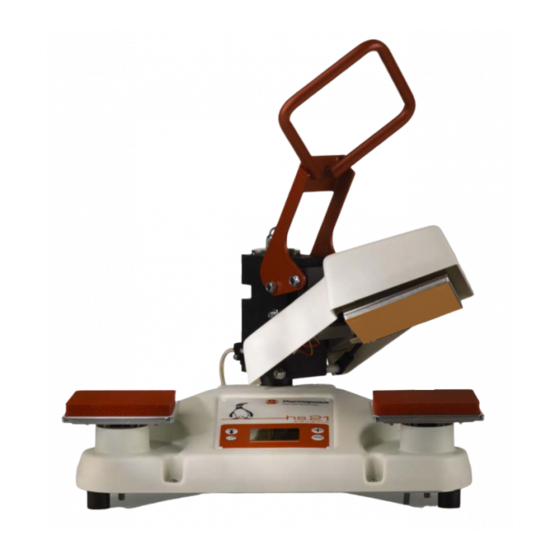

Thermopatch HS-21-SQR Penguin Manual
  1. Manuals
  2. Brands
  3. Thermopatch Manuals
  4. Food Saver
  5. HS-21-SQR Penguin
  6. Manual

Thermopatch HS-21-SQR Penguin Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Y600 Thermo-Seal-Jet
HS-21-SQR Penguin
September 2020 ENG

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HS-21-SQR Penguin and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Thermopatch HS-21-SQR Penguin

Summary of Contents for Thermopatch HS-21-SQR Penguin

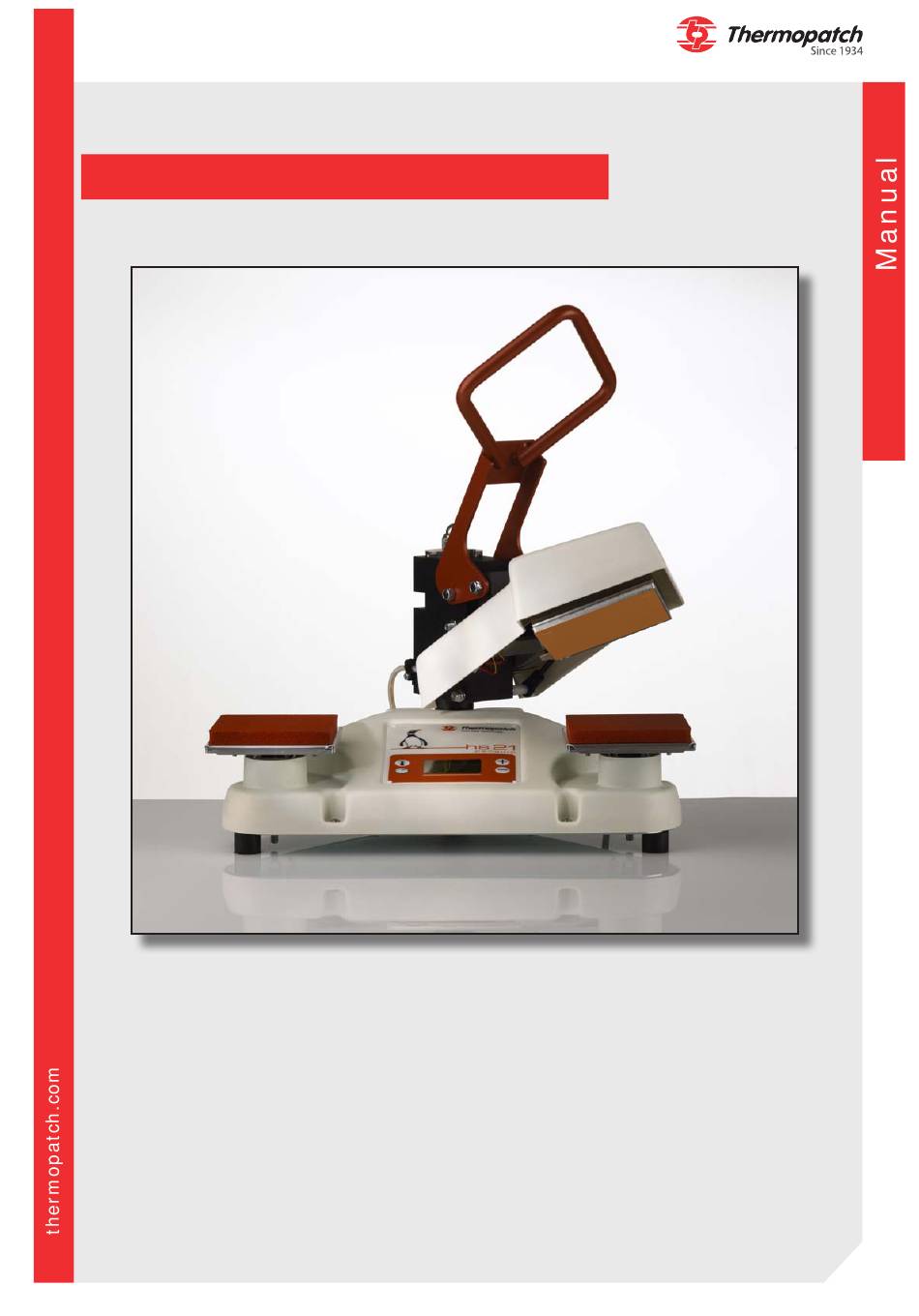

  • Page 1 Y600 Thermo-Seal-Jet HS-21-SQR Penguin September 2020 ENG...

  • Page 2: Copyrights

    Congratulations and welcome to the ever growing number of Thermopatch users. You have acquired a machine which has been manufactured by Thermopatch with the greatest possible care. We are confident that you will be enjoying the use of this machine for a long time.

  • Page 3: Table Of Contents

    Content Copyrights Introduction Content 1. General description 1.1 What did you receive ? 1.2 Warranty 3. Assembly and installation 3.1 Installing the HS-21-SQR 3.2 Electrical Requirements 4. Operating manual 4.1 How to operate the HS-21-SQR HS-21-SQR 4.2 The HS-21-SQR display 4.3 How to operate the display 5.

  • Page 4: General Description

    • HS-21-SQR heat seal machine • Electrical power cable • User’s Guide on USB If one of these articles is missing, please contact our customer service or your Thermopatch supplier. 1.2 Warranty Thermopatch refers to its warranty and product liability conditions as laid down in our...

  • Page 5: Assembly And Installation

    2. Intended use The HS-21-SQR has been developed to heat seal labels, patches, transfers and emblems quickly thanks to the two press plates. The machines warms up to the required temperature within a minute which ensures efficient working. 3. Assembly and installation 3.1 Installing the HS-21-SQR Take the machine out of the box and put it on a worktable near an earthed wall socket.

  • Page 6: Operating Manual

    Default set heat seal temperature: 204 °C The set temperature can be checked and confirmed with Thermopatch temperature measuring strips. If the temperature on the screen should not equal the set temperature, adjust it as follows: Push the upper (1) and lower (2) left buttons at the same time for 3 seconds and adjust temperature with the buttons 3 and 4.
  • Page 7 Follow the procedure listed below: • Set the time. Almost all Thermopatch heat seal products need 12 - 15 seconds for correct adhesion. • Pull the fabric tightly over the silicone rubber sealing pad. Make sure that the fabric is pulled tight and no seams, buttons, zippers or other thick parts are under the machine.
  • Page 8 How to remove heat sealed Thermopatch labels: Because Thermopatch labels must be wash resistant to all industrial washing processes, it is not easy to remove heat seal products. When necessary you can try following procedure: •...

  • Page 9: Overview Of Safety Measures And Warnings

    5. Overview of safety measures and warnings 5.1 Safety The HS-21-SQR has been equipped with various safety features to ensure safe operation. 1. Safety thermostat The safety thermostat is installed to prevent overheating when the controller should fail. It switches off the power to the heating element when the temperature exceeds 260°C. If this happens, the machine has to be checked by a qualified technician.

  • Page 10: Technical Specifications

    6. Technical specifications 6.1 Specifications of the HS-21-SQR Power consumption 650 W Power supply 230 V Temperature 50-225 °C Machine height (open) 525 mm Machine height (closed) 315 mm Machine width 465 mm Machine depth (connections included) 420 mm Net weight 15 kg Press pad dimensions Square 120 x 120 mm...

  • Page 11: Transport And Storage

    A-weighed noise level < 70 dB (A) 7. Transport and storage 7.1 Transport When the machine needs to be moved, Thermopatch recommends to use the original packaging. 7.2 Storage When the machine needs to be stored, Thermopatch recommends to use the original packaging.

  • Page 12: Technical Annexes

    Error codes: Below you will find an overview of the error codes which appear on the display. If these error codes occur, please contact your Thermopatch supplier. • Error code 1: Breakage of wire in PT1600 (resistance high) •...

  • Page 13: Exploded Views And Parts

    9.3 Exploded views and parts Please visit our website for more information: www.thermopatch.com, Equipment and parts...
  • Page 14 Sealing plate 120 x 120 SPAPEN-21026 Sealing plate 60 x 20 SPAPEN-21026A Sealing plate 70 x 30 SPAPEN-21026B Sealing plate 100 x 120 SPAPEN-21026C Sealing plate SPAPEN-21025 support Spring support SPAPEN-21006 Allen screw M8 X 65 DIN 912 Nut M5 DIN 934 Press spring SPAPEN-21033...
  • Page 16 Tapping screw 3 x 25 DIN 965 Nylock nut DIN 7971 Collar bearing 10170-P14 SPAPEN-21012 10-12-10 Spring dowel Ø 6 x 40 DIN 7344 Bearing 4030-P10 SPAPEN-21203 Hinge block SPAPEN-21017 Pull relief SPAPEN 02-02 Ring DIN 9021 Spring dowel Ø 10 x 8.5 x 60 DIN 7346 2.10 Bolt...
  • Page 18 Handle SPAPEN-21015 Nylock nut DIN 985 Nylon press link SPAPEN-21001 Collar bearing 10170-P14 SPAPEN-21012 Shoulder bolt C7111.080.070 ISO 7393 Screw 3 x 10mm DIN 7971 Cover plate (black) SPAPEN 009...
  • Page 20 Nylock nut DIN 985 Spring D-180S D-180S SPAPEN-21032 Connector Porcelain Porcelein SPAPEN-03-04 Allen screw M3 x 20 DIN 912 Press arm SPAPEN-21011 DIN 934 Isolating plate SPAPEN-21027 Rubber SPAMA-01-01-A Heat sensor PT 1600 SPAPEN-03-11 4.10 Sensor plate SPAPEN-21023 4.11 Heating element SPAPEN-21031 4.12 Heat shield...
  • Page 22 Nylock nut DIN 985 Nylock nut DIN 985 Shoulder bolt M5 x 35 DIN 7379 Nylon bushing 10 x 10 x 6,5 SPAPEN 02-08 Shoulderbolt 07111-080-070 M8 x 70 DIN 7379 Gas spring 21 381K SPAPEN 02-09 Nylon bushing 20 x 10 x 6,5 SPAPEN-02-13 Hex bolt M6 X 95...
  • Page 24 Cap screw M5 x 10 ISO 7380 Press arm cover SPAPEN-21020 Harness, low voltage SPAPEN-21603 Base cover SPAPEN-029 Panel sticker SPAPEN-21029 Power inlet SPAPEN-03-13 Harness, 230 Volt SPAPEN-21607 Electronics Not on drawing Teflon self adhesive cover 120 x 120 mm SPAPEN-21316...

  • Page 25: A Heating Plate Enhancement June 2018

    SQR Heater Shield Construction before HS-21SQR-18-12867 (up to June 2018) UNLESS OTHERWISE SPECIFIED: FINISH: DEBUR AND DO NOT SCALE DRAWING REVISION DIMENSIONS ARE IN MILLIMETERS BREAK SHARP Thermopatch SURFACE FINISH: EDGES TOLERANCES: LINEAR: ANGULAR: NAME SIGNATURE DATE From serial number TITLE:...

  • Page 26: Wiring Diagram

    9.4 Wiring diagram...

  • Page 27: End Of Life

    10. Recycling Choose to dispose of the machine responsibly when it has reached its end of life. Electrical machinery, accessories and packaging should be recycled as much as possible in an environmentally responsible manner. • Dismantle the machine groups: steel parts / pneumatic components / electrical components •...

  • Page 28: Declaration Of Conformity

    Thermopatch B.V. Draaibrugweg 14 1332 Almere Netherlands Declare under our own responsability that the heat sealing machine: Thermopatch HS-21-SQR Penguin which this declaration refers to, is in accordance with the conditions of the following Directive(s): 2014/30/EU (emc directive) 2014/35/EU (Low tension directive)

  • Page 29: Disclaimer

    Using sealing pads of any format other than the standard supplied with the machine may render the CE declaration invalid. Thermopatch accepts no responsibility for any damage or injury that may result from possible non-conformity. Choosing an alternative configuration other than the standard is at the customer’s own...
  • Page 30 Thermopatch Canada Inc Canada T +15 19 748 50 27 F +15 19 748 15 43 broussel@thermopatch.com Thermopatch UK United Kingdom T +44 15 397 22 122 F +44 15 397 21 000 team@thermopatch.uk V. 3.0 ENG Jan2014 V. 4.0 ENG Jan2015...
