Mpa Leds - Cisco NCS 5500 Series Hardware Installation Manual

LEDs
LED
STS
Link (for
each port)

MPA LEDs

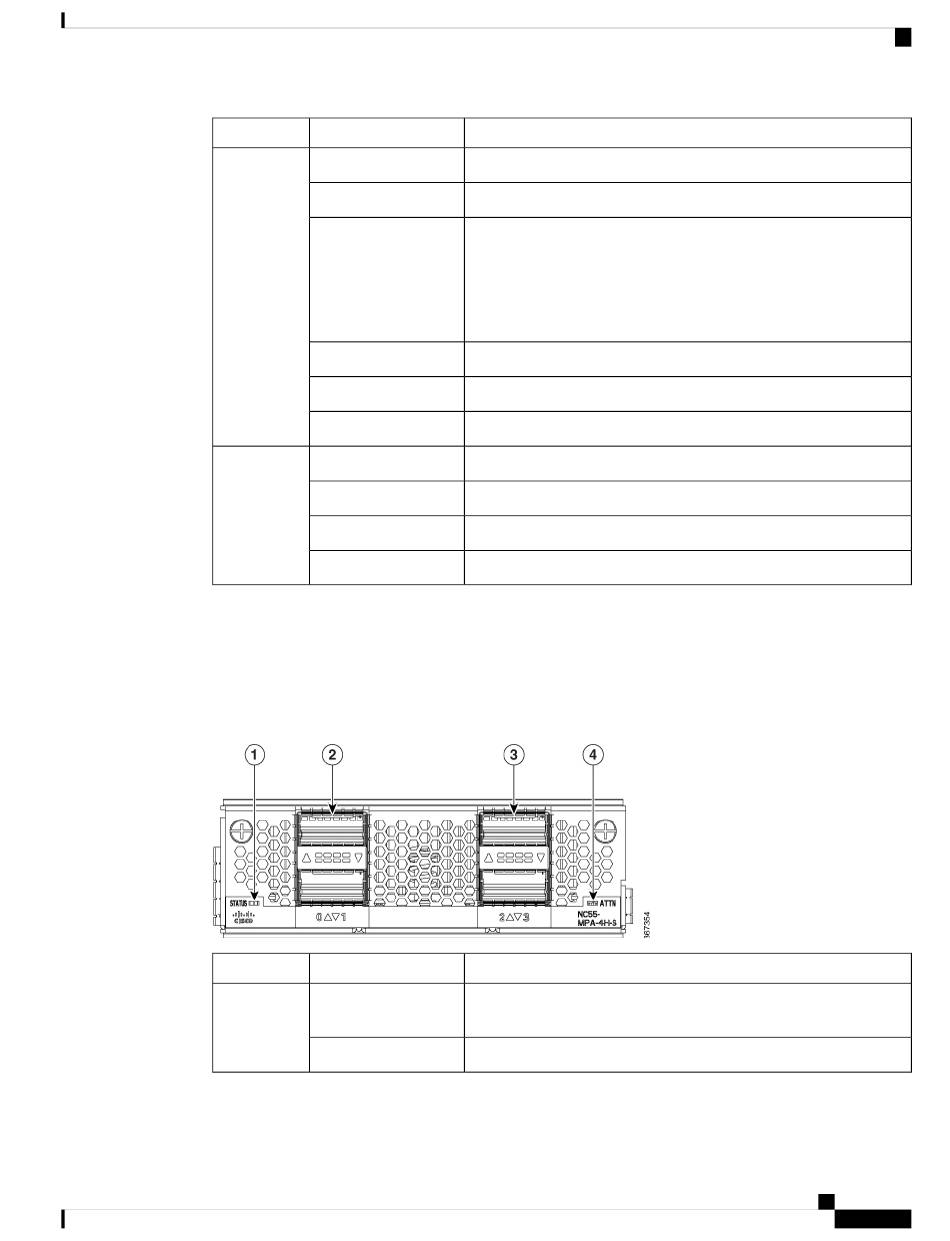

The STATUS LED is located on the front left of the MPA, the attention (ATTN) is located on the front right
of the MPA, and the Link LED for each port is located between the two rows of ports (each of these LEDs is
a triangle pointing to the port above or below the LED).
LED
ATTN
Color Status
Green This module is operational.
Amber Host kernel booted and is ready to start the system administrator VM.
Red Either of the following conditions:
• The card has detected a slot ID parity error and will not power
• The card is not fully inserted.
Flashing red The card has active major or critical alarms.
Flashing amber The card is booting up or shutting down.
Off The card is powered-off and can now be safely removed.
Green The port is active.
Orange The port is disabled by the operator or is not initializing.
Flashing orange The port is faulty and disabled.
Off The port is not active or the link is not connected.
Color Status
Flashing blue The operator has activated this LED to identify this MPA in the
chassis.
Off This LED is not being used.
Hardware Installation Guide for Cisco NCS 5500 Series Modular Routers
on or boot up.

MPA LEDs

137
