Step 3: Install The Vs-44H2A; Step 4: Connect The Inputs And Outputs - Kramer VS-44H2A Quick Start Manual

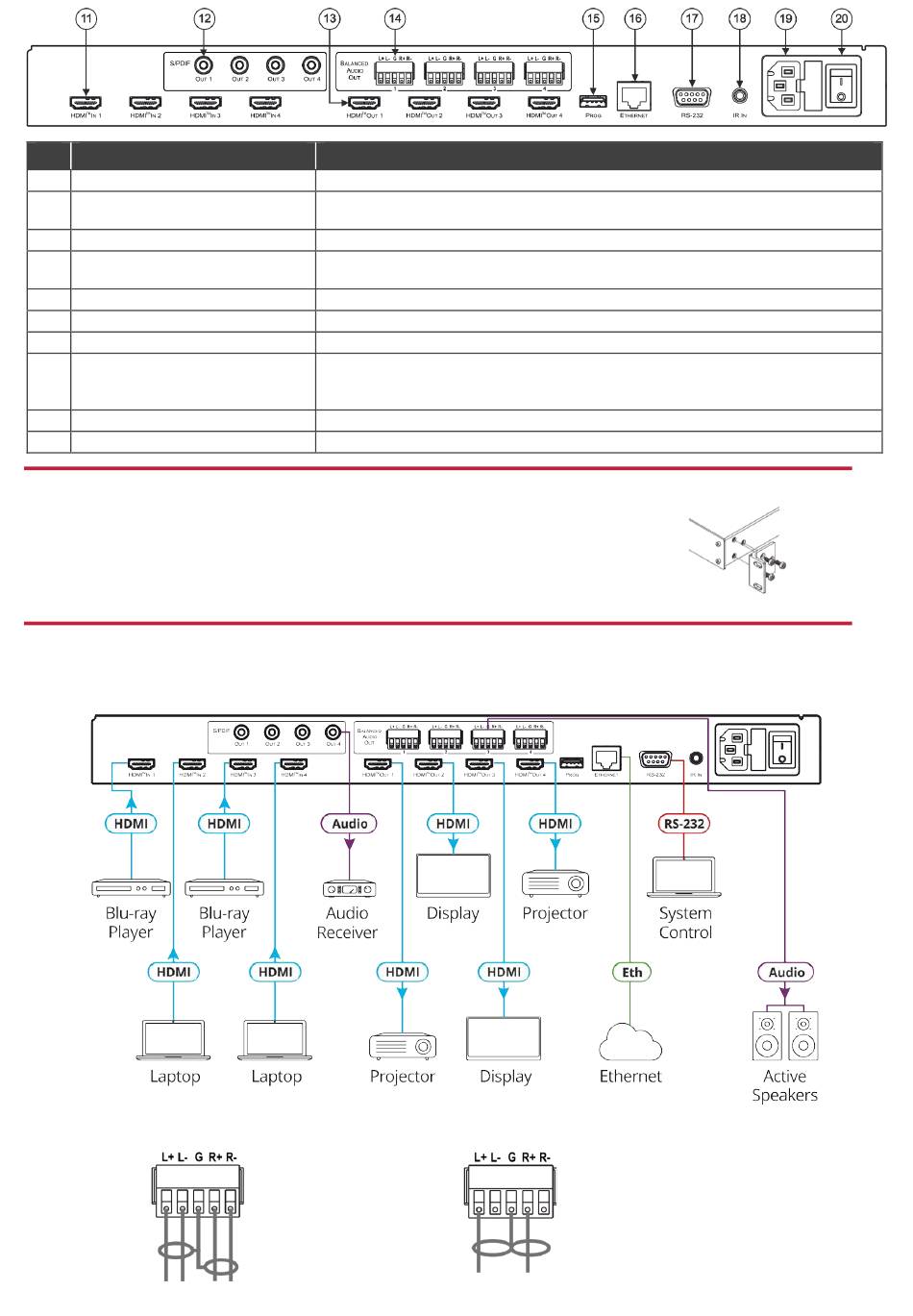

# Feature
11 HDMI™ IN Connectors (1 to 4)
12 S/PDIF OUT (coaxial) RCA
Connectors (1 to 4)
13 HDMI OUT Connectors (1 to 4)
14 BALANCED AUDIO OUT Terminal
Block Connectors (1 to 4)
15 PROG USB Connector
16 ETHERNET RJ-45 Connector
17 RS-232 9-pin D-sub Connector
18 IR IN 3.5mm Mini Jack Connector
19 Mains Power Connector and Fuse
20 Power Illuminated Switch

Step 3: Install the VS-44H2A

To rack mount the machine, attach both ear brackets (by removing the three screws from each side of
the machine and replacing those screws through the ear brackets) or place the machine on a table.

Step 4: Connect the inputs and outputs

Always switch OFF the power on each device before connecting it to your VS-44H2A. For best results, we recommend that
you always use Kramer high-performance cables to connect AV equipment to the VS-44H2A.
Connect the audio output
To a balanced
stereo audio
acceptor:
Function
Connect to up to 4 HDMI sources.
Connect to up to 4 digital audio acceptors.
Connect to up to 4 HDMI acceptors.
Connect to up to 4 balanced stereo audio acceptors.
Connect to a USB stick to perform firmware upgrades.
Connect to a PC via a LAN.
Connect to a PC/serial controller.
Connect to an external IR receiver for controlling the device via IR remote controller
Covered by a cap. The 3.5mm jack at the end of the internal IR connection cable fits into
this opening.
Plug in the power cord.
Turn the device on and off.
To an unbalanced
stereo audio
acceptor:
