Kramer VS-44H2A Quick Start Manual

Scan for full manual
Step 1: Check what's in the box

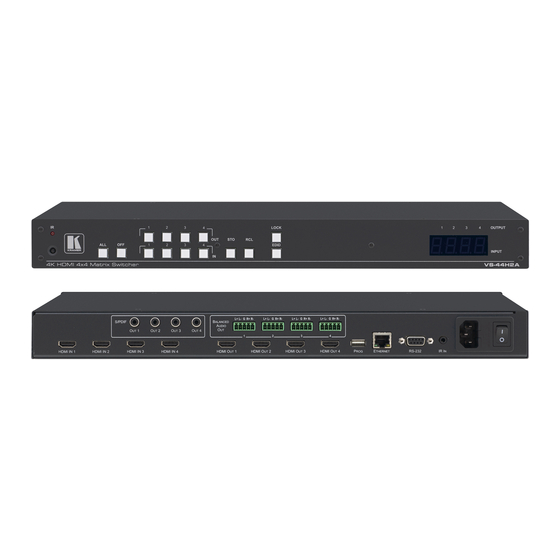

VS-44H2A 4K HDMI 4x4 Matrix Switcher
Remote control transmitter with batteries

Step 2: Get to know your VS-44H2A

# Feature
1 IR Sensor
IR LED
ALL Button
2
3 OFF Button
4 IN Select Buttons (1 to 4)
5 OUT Select Buttons (1 to 4)
6 STO Button
7 RCL Button
8 LOCK Button
9 EDID Button
10 OUTPUT/INPUT 7-segment LED
Display
VS-44H2A Quick Start
VS-44H2A Quick Start Guide
This guide helps you install and use your
Go to www.kramerav.com/downloads/VS-44H2A
upgrades are available.
Function
Receives signals from the infrared remote-control transmitter.
Lights yellow when receiving an IR signal.
Press followed by an input button to connect the selected input to all outputs.
For example, press ALL and then Input button # 2 to connect input # 2 to all the outputs.
Press after pressing an output button to disconnect the selected output from the inputs.
To disconnect all the outputs, press ALL followed by OFF.
Press to select the input to switch after selecting an output (also used for storing machine
setups).
Press to select an output to switch followed by an input.
Press STO followed by an INPUT (1 to 4) button to store the current switching
configuration to the location corresponding to that INPUT number.
Press RCL followed by the corresponding INPUT (1 to 4) button to recall the preset
switching configuration saved in that location.
Press and hold to toggle the locking/release of the front panel buttons.
Press EDID + STO buttons to enter the EDID mode.
Displays the input currently switched to the output which is marked above each input.
VS-44H2A for the first time.
to download the latest user manual and check if firmware
1 Set of rack ears
1 Power cord
P/N:
2900- 301078QS
4 Rubber feet
1 Quick start guide
