Kramer VS-44H2 Quick Start Manual

Scan for full manual
Step 1: Check what's in the box

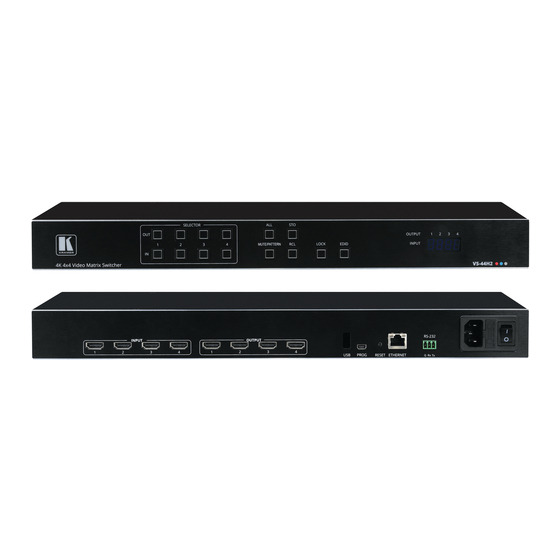

VS-44H2 4K 4x4 Matrix Switcher
1 Set of rack ears

Step 2: Get to know your VS-44H2

# Feature
IN Select Buttons (1 to 4)
1
2 OUT Select Buttons (1 to 4)
3 MUTE/PATTERN Button
4 ALL Button
5 STO Button
6 RCL Button
7 LOCK Button
8 EDID Button
9 OUTPUT/INPUT 7-segment LED
Display
VS-44H2 Quick Start
VS-44H2 Quick Start Guide
This guide helps you install and use your
Go to www.kramerav.com/downloads/VS-44H2
upgrades are available.
Function
Press to select the input to switch after selecting an output (also used for storing
machine setups).
Press to select an output to switch followed by an input.
Press to view the current pattern status and select the output/s to which a pattern is
routed.
Press to mute audio and video on a selected output.
Press followed by an input button to connect the selected input to all outputs.
For example, press ALL and then Input button # 2 to connect input # 2 to all the
outputs.
Press STO followed by an IN or OUT (1 to 4) button to store the current switching
configuration to the location corresponding to that INPUT number.
Press RCL followed by the corresponding IN or OUT (1 to 4) button to recall the
preset switching configuration saved in that location.
Press and hold to toggle between locking and releasing the front panel buttons.
Press to enter the EDID mode.
Displays the input currently switched to the output which is marked above each input.
VS-44H2 for the first time.
to download the latest user manual and check if firmware
4 Rubber feet
1 Power cord
P/N: 2 9 0 0 - 3 0 1 2 9 7 QS
1 Quick start guide
Rev: 1
