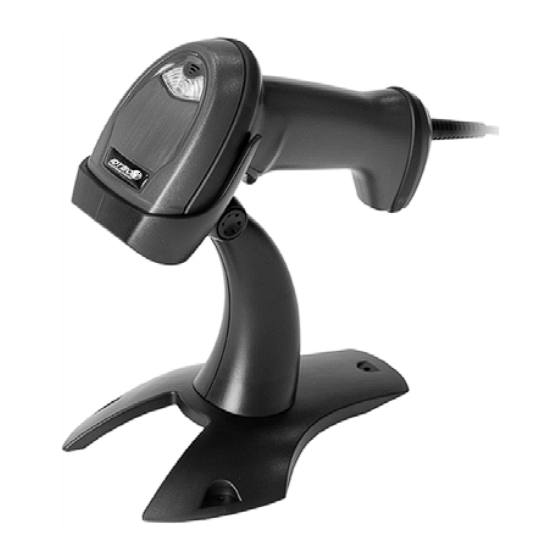

IDTECH ValueScan III IDBB-4244MRB User Manual

IDTECH ValueScan III IDBB-4244MRB User Manual

Hide thumbs Also See for ValueScan III IDBB-4244MRB:

Advertisement

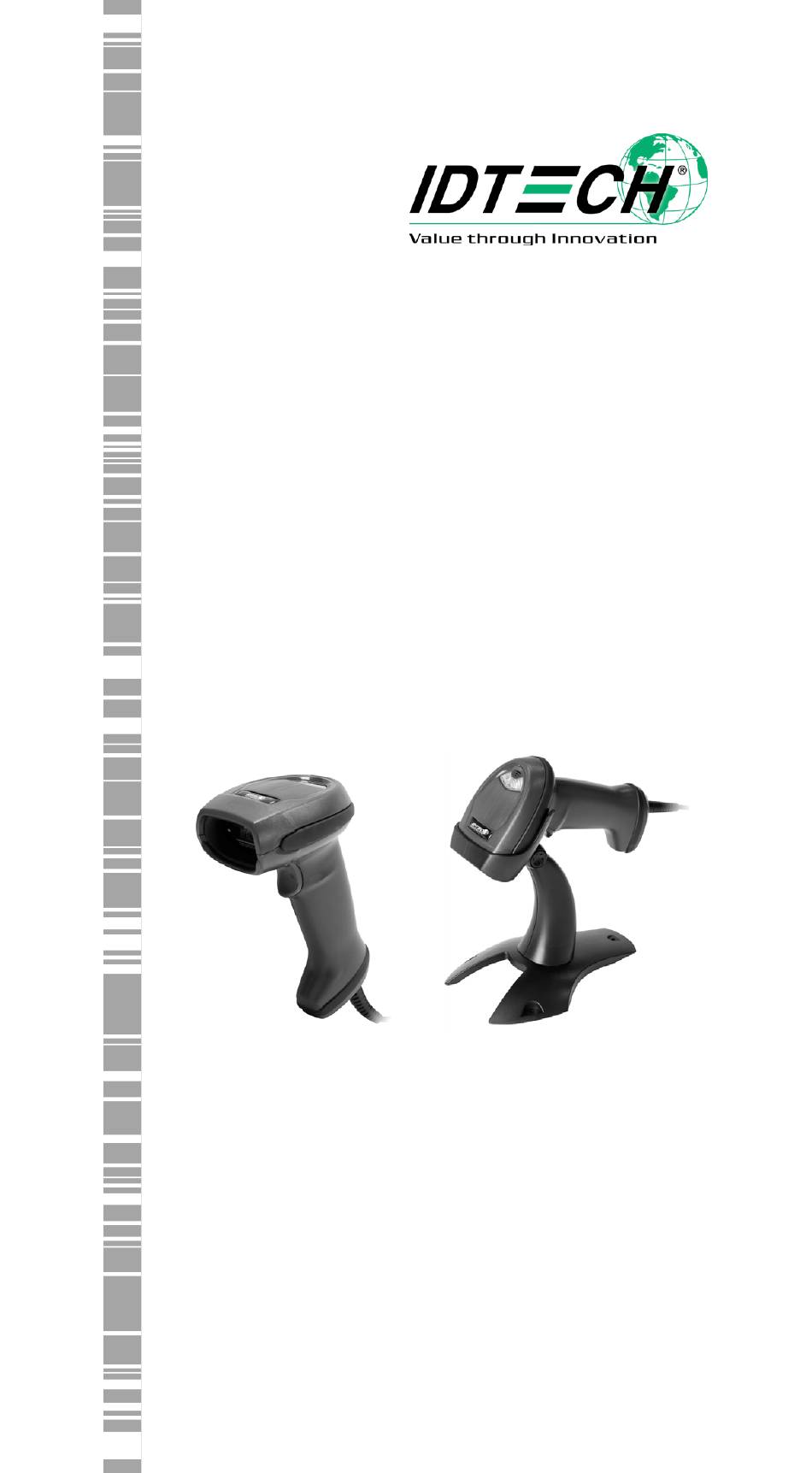

ValueScan III
IDBB-4244MRB
Barcode Scanner
User Manual
80181501-001 Version: 1.4
December 20, 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ValueScan III IDBB-4244MRB and is the answer not in the manual?

Questions and answers

Summary of Contents for IDTECH ValueScan III IDBB-4244MRB

  • Page 1 ValueScan III IDBB-4244MRB Barcode Scanner User Manual 80181501-001 Version: 1.4 December 20, 2019...
  • Page 2 Revision History Changes to the user manual are listed below: Version Date Description Page # 2019/10/18 Initial release 2019/11/20 Updated the specifications of the scanner 2019/12/02 Style update 2019/12/20 Added Presentation Mode images Page | 2...
  • Page 3 Regulatory Compliance FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 4 Note: All brands and trademarks are the property of their respective owners. The specifications contained herein are subject to change without notice. 警告使用者: 這是甲類的資訊產品,在居住的環境中使用時,可 能會造成射頻干擾,在這種情況下,使用者會被要 求採取某些適當的對策。 Page | 4...
  • Page 5: Table Of Contents

    Table of Contents 1. INTRODUCTION ............6 1.1. Application Field ..............7 1.2. Features ................7 2. UNPACKING ..............8 3. GETING STARTED ............9 3.1. Installation ................9 3.1.1. Setting Up Your Scanner ..........9 3.2. Scanning Barcodes ............10 4. CONTROLS AND SETTINGS ......... 11 4.1.
  • Page 6: Introduction

    1. Introduction Your VALUESCAN III is a 1D CCD scanner that has been configured at the factory with default settings. Because many host systems have unique formats and protocol requirements, ID TECH provides a wide range of configurable features that may be selected using this bar code-based configuration tool.
  • Page 7: Application Field

    1.1. Application Field Jewelry Tag • Manufacturing • Transportation & Logistics • Healthcare • 1.2. Features Makes daily work simple and easy • 2500 pixels CCD image sensor • Scan Speed≧270 times/sec • Maximum reading resolution: 3mil • (0.762mm) Depth of Field: 15~330mm •...
  • Page 8: Unpacking

    2. Unpacking Make sure the following items were included in your package: Scanner x1 • Stand x1 • Quick Start Guide x1 • USB Cable x1 • When you receive your scanner, open the package immediately and inspect for shipping damage. If you discover any damage, contact the shipping company and file a claim.
  • Page 9: Geting Started

    3. Geting Started This section provides information about installing, connecting, and using your scanner. 3.1. Installation Install your scanner with the steps below. 3.1.1. Setting Up Your Scanner Plug the RJ45 connector into the scanner’s RJ45 port until it clicks. Insert the USB connector to your computer.
  • Page 10: Scanning Barcodes

    3.2. Scanning Barcodes VALUESCAN III emits a light bar when scanning. To scan a barcode, make sure the aiming beam crosses every bar and space of the barcode. This bar needs to cross the bar code horizontally to decode it. Page | 10...
  • Page 11: Controls And Settings

    4. Controls and Settings Customize your scanner to work efficiently. VALUESCAN III offers many features to match your preferences. The following section provides information about changing your scanner’s controls and settings. 4.1. Version Information Setting Codes Version (custom) 000A0 Display internal string (custom) 000A1 Display serial number (custom) 000A2...
  • Page 12: Interface Mode Setting Codes

    4.2. Interface Mode Setting Codes VALUESCAN III supports USB HID and virtual COM. By default, your scanner is able to detect the interface automatically. When it detects USB, it selects HID as your scanner’s interface. USB-HID (Default) 000602 USB Virtual Com 000603 Note: If you use the scanner to communicate with your computer via a serial interface (e.g., COM1 ...
  • Page 13: Scan Mode Setting Codes

    4.3. Scan Mode Setting Codes Trigger mode (default) 013340 Continuous scan mode 013344 Presentation mode 013380 Key delay 013342 Single not triggered 013341 Key delay not triggered 013343 Auto flashing 013345 Page | 13...
  • Page 14: Sound Setting Codes

    4.4. Sound Setting Codes Sound on (default) 014201 Sound off 014200 Buzzer frequency 2048 0145800 High volume sound 014300 Low volume sound 014301 Buzzer frequency 2731 0145AAA Page | 14...
  • Page 15: Character Delete, Insert, And Replacement Settings

    4.5. Character Delete, Insert, and Replacement Settings Code ID off (default) 01400 Code ID on 01401 Rear code ID on 01402 Display code front character (default) 0201x Hide code front blank 0200[SPACE] Display code rear character (default) 0203 Hide code rear character n (“n”...
  • Page 16 Display rear characters (default) 023300 Hide rear 5 characters 023305 Hide rear 1 characters 023301 Display front characters (default) 023400 Hide front 5 characters 023405 Display middle characters (default) 023900 Hide 5 middle characters 023905 Forward start from 4th character 024004 FUNC1 replace with 1 0160049...
  • Page 17 FUNC4 replace with 4 0163054 Disable enter replace (default) 0182013 Enter replace with 5 0182055 Page | 17...
  • Page 18: Serial Port Settings

    4.6. Serial Port Settings Baud rate 600bps 000701 Baud rate 1200bps 000702 Baud rate 2400bps 000703 Baud rate 4800bps 000704 Baud rate 9600bps (default) 000705 Baud rate 19200bps 000706 Baud rate 38400bps 000707 Baud rate 57600bps 000708 Baud rate 115200bps 000709 Serial Port: No Check 001200...
  • Page 19 Serial port: RTS/CTS 001202 Serial port handshake timeout 2s 0013020 Serial port handshake timeout 5s 0013050 Serial port 8-bit data 00080 Serial port 7-bit data 00081 Serial port 1 stop bit 00090 Serial port 2 stop bits 00091 Serial port No parity check 001000 Serial port odd parity check 001001...
  • Page 20: Normal Function Setting Codes

    4.7. Normal Function Setting Codes Enable upload setting barcodes 02501 Disable upload setting barcodes (default) 02500 FUNC cast light upon cancel (default) 01640 Disable change 02510 All uppercase 02511 All lowercase 02512 Uppercase interchange with lowercase 02513 Enable command beep 01411 Disable command beep 01410...
  • Page 21 Fastest transmit rate 001500 Medium transmit rate (default) 001502 Lower transmit rate 001504 Lowest transmit rate 001506 Page | 21...
  • Page 22: Prefix And Suffix Settings

    4.8. Prefix and Suffix Settings 0212@\r CR+LF 0213@\r\n All barcodes (rear) add ETX 0211@[ETX] All barcodes (front) add F2 02160081 All barcodes (rear) add F2 02110081 Cancel all barcodes (rear) format character 0210@ Add STX before barcodes 0217@[STX] Cancel all boots before barcodes 0215@ Add prefix 02240...
  • Page 23 Clear all prefix 02220 Clear all suffix 02200 Enter hidden front character mode 02340 Enter hidden rear character mode 02341 Enter hidden middle character mode 02342 Enter the hidden Nth character mode 02343 Page | 23...
  • Page 24: Multi-Language Setting Codes

    4.9. Multi-Language Setting Codes English (default) 0005000 Canada (French) 0005001 Dutch (Netherlands) 0005002 Spain (Spanish) 0005003 Argentina (Latin American) 0005004 Brazil (Portuguese) 0005005 Denmark (Danish) 0005006 UK (English) 0005007 Italy (Italian142) 0005008 France (French) 0005009 German (Germany) 0005010 Page | 24...
  • Page 25 Norway (Northern Sami) 0005011 Sweden, Finland (Swedish, Finnish) 0005012 Slovak (Slovakia) 0005013 Portuguesa (Portuguese) 0005014 Czech Republic (Czech) 0005015 Belgium (Dutch) 0005016 Turkey-F 0005017 Turkey-Q 0005018 Poland (Polish214) 0005019 Switzerland (German, French) 0005020 Croatia (Srb-Crt) 0005021 Page | 25...
  • Page 26 Hungary (Hungarian) 0005022 Japan (Japanese) 0005023 Russia (Russian) 0005024 Arabic (Egypt) 0005025 Page | 26...
  • Page 27: Character Tables

    4.10. Character Tables (For adding prefixes and suffixes) 1001 1003 1002 1004 1006 1005 1007 1009 1008 Backspace 1010 1012 Line 1011 Page | 27...
  • Page 28 1013 1015 Enter 1014 1016 1018 1017 1019 1021 1020 1022 1024 1023 1025 1027 Page | 28...
  • Page 29 1026 1028 1030 1029 1031 1033 1032 SPACE 1034 1036 “ 1035 1037 1039 ‘ 1038 & Page | 29...
  • Page 30 1040 1042 1041 1043 1045 1044 1046 1048 Note: Used to set address/prefix/suff 1047 1049 1051 Note: Note: Used to set Used to set address/prefix/suffix address/prefix/suffix Page | 30...
  • Page 31 1050 Note: Used to set address/prefix/suffix 1052 1054 Note: Note: Used to set Used to set address/prefix/suffix address/prefix/suffix 1053 Note: Used to set address/prefix/suffix 1055 1057 Note: Note: Used to set Used to set address/prefix/suffix address/prefix/suffix 1056 Note: Used to set address/prefix/suffix 1058 1060 <...
  • Page 32 1061 1063 1062 > 1064 1066 1065 1067 1069 1068 1070 1072 1071 1073 1075 Page | 32...
  • Page 33 1074 1076 1078 1077 1079 1081 1080 1082 1084 1083 1085 1087 Page | 33...
  • Page 34 1086 1088 1090 1089 1091 1093 1092 1094 1096 1095 1097 1099 1098 Page | 34...
  • Page 35 1100 1102 1101 1103 1105 1104 1106 1108 1107 1109 1111 1110 1112 1114 Page | 35...
  • Page 36 1113 1115 1117 1116 1118 1120 1119 1121 1123 1122 1124 1126 1125 Page | 36...
  • Page 37 1127 1129 Delete 1128 1130 1132 1131 1133 1135 1134 1136 1138 1137 1139 1141 HOME Page | 37...
  • Page 38 1140 INSERT 1142 1144 Page up 1143 Delete 1145 1147 Page down Left arrow 1146 Right arrow 1148 1149 Down arrow Up arrow Page | 38...
  • Page 39: Enable And Disable Barcodes

    4.11. Enable and Disable Barcodes Enable code39 00221 Disable code39 00220 Code39 ID as m 0031m Enable code39 Full ASCII (default) 00231 Disable code39 Full ASCII 00230 Disable code39 MOD43 Check (default) 00240 Enable code39 MOD43 Check 00241 Enable code39 transmit check 00251 Disable code39 transmit check 00250...
  • Page 40 Disable code32 (default) 01950 Enable code32 Note: It will affect code39. 01951 Code39 TAB Mode 0212M\t System characters hiding code32 01961 System characters sending code32 01960 Setting the CODE39 to a minimum length of 1 Software version available before 003201 and after V7.53 Setting the CODE39 to a minimum length of 2 (default)
  • Page 41 Code39 minimum length 3 Software version available after V7.53 00323 Enable UPC-A (default) 00341 Disable UPC-A 00340 UPC-A ID as e 0049e Enable UPC-A change to EAN-13 00391 Disable UPC-A change to EAN-13 (default) 00390 Transmit UPC-A check digit (default) 00421 No-transmit UPC-A check digit 00420...
  • Page 42 Disable UPC-E 00350 UPC-E ID as f 0050f Enable UPC-E change to UPCA 00381 Disable UPC-E change to UPC-A (default) 00380 UPC-E hiding system characters 00431 UPC-E sending system characters 00430 UPC-E sending check digits 00441 UPC-E not sending check digits 00440 Enable EAN-13 (default) 00361...
  • Page 43 Transmit EAN-13Check digit (default) 00461 No-transmit EAN-13 check digit 00460 Enable EAN-13 change to ISBN 00481 Disable EAN-13 change to ISBN (default) 00480 Enable EAN-13 change to ISSN 01501 Disable EAN-13 change to ISSN (default) 01500 Enable EAN-13 multiple verify 00541 Disable EAN-13 multiple verify (default)
  • Page 44 EAN-8 transmit check digit (default) 00571 EAN-8 No-transmit check digit 00570 EAN-8 hide system digit 00561 EAN-8 display system digit (default) 00560 Enable 5-digit supplement 00552 Enable 2-digit supplement 00551 Enable 2-digit & 5-digit supplements 00553 Disable supplement (default) 00550 Enable code93 (default) 00621 Disable code93...
  • Page 45 Enable code93 multiple verify 00681 Disable code93 multiple verify (default) 00680 Enable Code93 MOD47 (default) 01901 Disable Code93 MOD47 01900 Enable code128 (default) 00691 Disable code128 00690 Code128 ID as a 0081a Disable code128 multiple verify (default) 00840 Enable code128 multiple verify 00841 Enable codabar (default) 00851...
  • Page 46 Codabar ID as v 0094v Codabar minimum length 4 008704 Codabar start / stop character transmission 00861 Codabar start / stop character without transmission (default) 00860 Enable interleaved 2 of 5 (default) 00961 Disable interleaved 2 of 5 00960 Interleaved 2 of 5 ID as n 0104n Interleaved 2 of 5 minimum length 4...
  • Page 47 Transmission of check on Interleaved 2 of 5 ID 00990 Enable bank mode 01001 Disable bank mode 01000 Enable industrial 2 of 5 (default) 01061 Disable industrial 2 of 5 01060 Industrial 2 of 5 ID as o 01130 Industrial 2 of 5 minimum length 010703 Enable MSI 01151...
  • Page 48 Enable Plessey 01161 Disable Plessey (default) 01160 Plessey ID as t 0117t Plessey minimum length 3 011903 Enable code11 (default) 01261 Disable code11 01260 code11 ID as u 0131u Code11 minimum length 4 012804 Code11 auto CK check 01271 Code11 C check (default) 01272 Code11 CK check 01273...
  • Page 49 01461 Disable Matrix 25 01460 Matrix 25 ID as q 00147q Matrix 25 minimum length 2 014802 Matrix 25 minimum length 3 014803 Enable postal 25 01571 Disable postal 25 (default) 01570 Postal 25 ID as r 0158r Postal 25 minimum length 5 015905 Postal 25 minimum length 7 015907...
  • Page 50 Aerial 25 ID as p 0188p Aerial 25 minimum length 7 018907 All EAN change to ISSN 02371 Disable EAN change to ISSN (default) 02370 All EAN change to ISBN 02361 Disable EAN change to ISBN (default) 02360 Enable digital keyboard mode 02581 Disable digital keyboard mode 02580...
  • Page 51 Enable GS1 Limited 01771 Disable GS1 Limited (default) 01770 GS1 Limited ID as k 0178k Note: The setting code type is code128. When generating a barcode, you must add ^3 before the barcode; for example: ^3+****** (required barcode). The ASCll codes in the above table are all decimal. For hexadecimal ASCII codes, refer to ASCII Table Page | 51...
  • Page 52: Prefix / Suffix Code Setting Instructions

    5. Prefix / Suffix Code Setting Instructions The pre/suffix code is divided into a common pre/suffix code and a private pre/suffix code. The common pre/suffix code means that the pre/suffix code is added before a barcode; the private pre/suffix code refers to a certain type of barcode, such as code 128 codes and code 39, a specific barcode to which the pre/suffix is added.
  • Page 53: Adding An Exclusive Suffix Code

    2. In the second way, the prefix and suffix codes are added. Setting codes are scanned and set through ASCII code. The setting codes are 021100nn (suffix code) and 021600nn (prefix code). This ASCII setting is hexadecimal. Refer to ASCII Table 2 for specific parameters. For example, to add the common suffix code A, the hexadecimal setting code is 02110041;...
  • Page 54: Sleep Time Setting / Button Timeout Setting

    Please refer to Code Table 1 for other types of barcodes. Likewise, to add a specific barcode with a prefix code, all Code 128 codes are needed before the letter A; there are two ways to do so: 1. 0216 0141 See Table 1 below for explanation.
  • Page 55: Hiding Characters

    5.3.1. Hiding Characters The hidden suffix character setting code is 0233nn. To hide the suffix 5 characters, the setting code is 023305. The hidden prefix setting code is 0234nn. If 023405 is hides the prefix 5 characters, just change the value of nn to change the number of hidden characters.
  • Page 56: Code Table 1 For Barcode Types

    5.4. Code Table 1 For Barcode Types (00) code128 (01) EAN8 (03) EAN13 (04) UPCA (05) UPCE (06) CODE93 (09) GS1 OMNI (0A) GS1 LIMI (0B) CODE39 (0D) Interleaved 2 of 5 (0E) Industrial 2 of 5 (0F) Aerial25 (10) Matrix 25 (11)...
  • Page 57: Tip 1

    0x8A 0x8B Insert 0x8C Home 0x8D Page up 0x8E Page down 0x91 Delete 0x8F 0x90 Right 0x92 Left 0x93 Down 0x94 0x95 If CODE93 is added with the STX prefix code, according to the STX ASCII value that is 0x02, then the setting code content should be printed as shown below.
  • Page 58: Tip 2

    5.6. Tip 2 ASCII = [F3] + ‘0’ + ‘2’ + ‘1’ + ‘6’ + ‘0’ + ‘9’ + ‘0’ + ‘2’ And if CODE93 is added with Home prefix code: ASCII = [F3] + ‘0’ + ‘2’ + ‘1’ + ‘6’ + ‘0’ + ‘9’ + ‘8’ + ‘D’ Note: Code93 corresponds to 09 <value of each code that is given in the note on the previous page>;...
  • Page 59: Ascii Table 2

    6. ASCII Table 2 Decimal Hexadecimal Character Null Header start Text start Text end Transmission end Query Confirmation Ring backspace Level positioning character Line feed / new line Vertical positioning character Form feed / new page Enter Shift-out Shift-in space "...
  • Page 60 Decimal Hexadecimal Character < > Data link translation Device control 1 Device control 2 Device control 3 Device control 4 Reverse confirmation Synchronous idle Transmission block end Cancel Media end Page | 60...
  • Page 61 Decimal Hexadecimal Character Interchange Translation File separator Group separator Record separator Unit separator Page | 61...
  • Page 62 Decimal Hexadecimal Character Page | 62...
  • Page 63: Specifications

    7. Specifications Standard Features Symbologies UPC-A, UPC-E, EAN-13, EAN-8, Codabar, Code 39 Full ASCII, China Post, Plessey, MSI, Code 93, Code 128, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, Code 11, ISBN, ISSN, Code32 (Italian Pharmcode), Code39 extended, GS1-128 and ITF-14, SISAS, GS1 Omnidirectional, GS1 Limited, Aviation25,...
