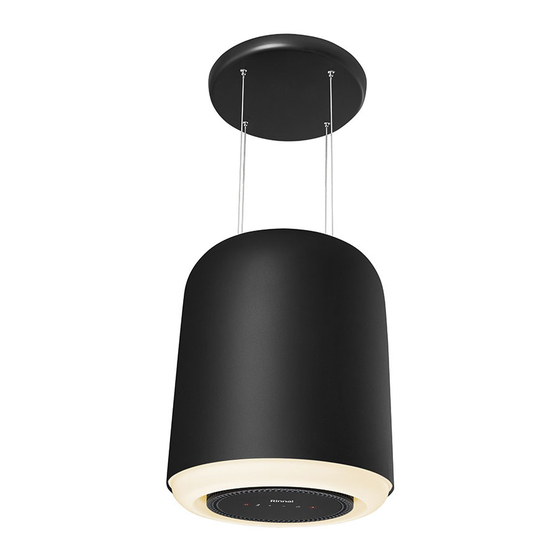

- Page 1 RH-D3154-BKR RH-D3154-ORR RH-D3154-BLR Pendant Hoo...
-
Page 2: Table Of Contents
Page 13 Installation Instructions Page 14 To register your product warranty, please paste the serial numbers stickers enclosed with the packaging on your warranty card. Please contact your local Rinnai After Sales Service Center should you require further assistance. Version 2022.05... -
Page 3: Intended Use
Intended Use Please read this user manual thoroughly before attempting to use this appliance for the first time. This manual contains important information on safe installation, use and care of the appliance. Keep these instructions for reference and pass them on to future user. This appliance can only be used safely if it is correctly installed according to the safety instructions. -
Page 4: Safety Information
Incorrect repairs are dangerous. Repairs should be attempted by our qualified technical personnel’s only. If the appliance is defective, unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact your local Rinnai After Sales Service Center for assistance. - Page 5 Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact your local Rinnai After Sales Service Center for assistance. Incorrect repairs are dangerous. Any repairs and replacements of damaged power cable or ...
-
Page 6: Environmental Protection
Environmental Protection Energy Saving During cooking ensure that there is a sufficient supply of air to enable the extractor hood to work efficiently and with a low level of operating noise. Adjust the fan speed to the amount of cooking vapor produced during cooking. Only use ... -
Page 7: Operating Instructions
Operating Instructions Operating the Extractor Hood Touch the sensor buttons gently to operate this appliance. To achieve better air extraction, it is advisable to switch on the extractor hood a few minutes before starting to cook and leave it on for approximately 15 minutes after cooking (or at least all cooking smell is completely removed). - Page 8 SETTING the TIMER Delay Timer To set up the delay timer, press on the timer switch symbol, the timer switch's orange ring symbol will light up and together with the numerical number on the display window will begin flashing. At this time set your prefer time delay by pressing on the timer switch symbol once (1–...
-
Page 9: Care And Maintenance
Care and Maintenance Warning: Before carrying out any cleaning or maintenance activities, ensure that the appliance is disconnected from the main power supply. Components inside the appliance may have sharp edges. Wear protective gloves. Cleaning Agents To ensure that the different surfaces are not damaged by using the wrong cleaning product, follow the instructions in the table. - Page 10 Metal Grease Filter Magnetic Holder for Metal Grease Filter The metal grease filter is secure by magnetic holders to the Extractor Hood frame. In addition a metal hook is fitted between the Extractor Hood frame and the metal grease filter to prevent the metal grease filter from dropping as a safety measure.
- Page 11 Installing the Metal grease Filter Hold the metal grease filter using one hand and at the same time insert back the metal hook into the metal grease filter using the other hand. Insert back the metal grease filter using both hands onto the metal grease filter holder, make sure the metal grease filter is positioned correctly If the grease filter has not been inserted correctly, reinsert it again.
-
Page 12: Trouble Shooting
Incorrect repairs are dangerous. Repairs should be attempted by our qualified technical personnel’s only. If the appliance is defective, unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact your local Rinnai After Sales Service Center for assistance. - Page 13 Specification RH-D3154-BKR RH 270W 220-240V~ 50/60Hz 1.5m (W x D x H) Fig. 3 Components List Product Parts Frame Frame cover Hood top cover Grid Plasma filter Stainless Steel Cable Hood Body Metal Grease Filter Power Cable Installation Accessories Screw ST6.0×40 (Wooden ceiling) Screw M6×60 (Cement ceiling)
-
Page 14: Installation Instructions
Installation Instructions Safety and General Information Read these instructions carefully. Check the appliance for damage after unpacking it. • • The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works correctly at its installation location. - Page 15 Warning The hood is equipped with standard fixing material. The person who is mounting the hood should make sure that the fixing elements are right and suitable for the ceilings he finds. Components inside the appliance may have sharp edges. Wear protective gloves. The extractor hood may fall down if it has not been properly fastened in place.
- Page 16 2. Mark where the centre of the extractor hood should be on the ceiling above the centre of the hob. 3. Using the template provided, mark the locations where the bolts should be inserted on the ceiling. 4. Drill four 8 mm diameter holes to a depth of 60 mm for fastening the appliance and press in the wall plugs flush with the wall.
- Page 17 2805 電話 傳真 ...
- Page 18 Remote Control Operation Manual...
- Page 19 CONTENTS Warnings and Safety Information Page 3 Overview Page 4 Operating Instructions Page 5 Care and Maintenance Page 6 Version 2022. 09...
- Page 20 WARNINGS AND SAFETY INFORMATION Important Information on Handling of the Remote Control Battery Do not attempt to short circuit or recharge the battery Do not throw away any old batteries with your general household waste. Please dispose them in a designated battery collection and recycled system. Used batteries must be kept away from children while awaiting their disposal and must ...
- Page 21 OVERVIEW Power ON/OFF Switch Symbol Increase /Decrease the Working Speed of the Motor ON/OFF Lighting Control...
- Page 22 OPERATING INSTRUCTIONS Using the Remote Control The remote control can only be used with any Rinnai hood which has the remote function. The main functions can be selected via the cooker hood or by remote control. Please see the descriptions of functions in the cooker hood operating instruction manual.
- Page 23 Care and Maintenance Cleaning the Remote Control Only clean the surface with a damp cloth. Do not use too much water to prevent moisture penetrating into the casing Changing the Battery Use only the type of battery listed. Do not use rechargeable batteries The remote control requires one 3V CR2025 battery The battery must be changed if the cooker hood functions can no longer be selected using the remote control.
- Page 25 2805 ประเทศไทย Rinnai Appliance Service Center Nam Kwong Petroleum & Chemicals Co., Ltd Avenida do Dr. Rodrigo Rodrigues, Nam Kwong Building, 17/F, Macau บริ ษ ั ท ริ น ไน (ประเทศไทย) จํ า กั ด เลขที / ซอยกิ งแก้ ว ถนนกิ งแก้ ว ตํ า บลราชาเทวะ...
