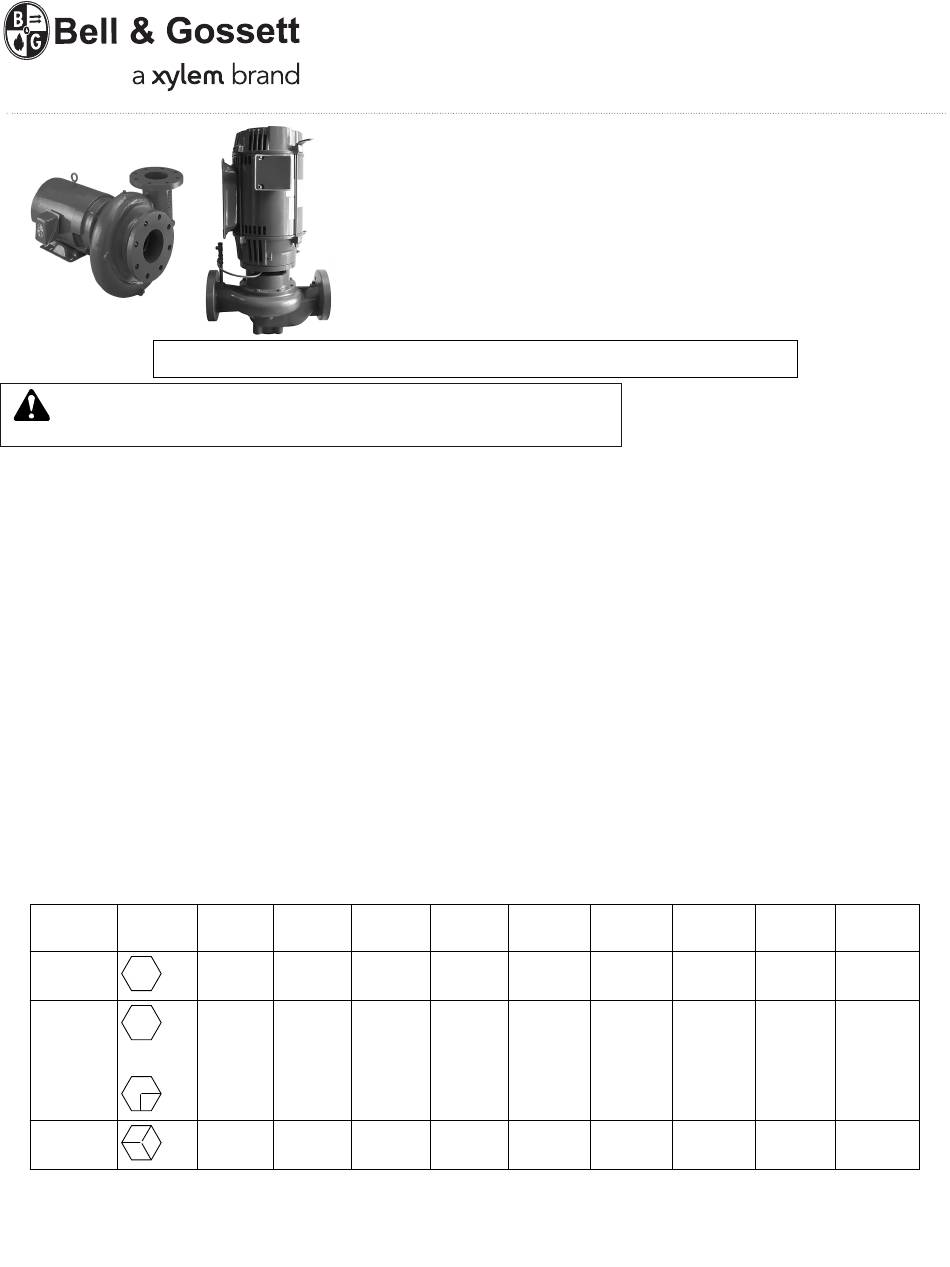

Close-coupled centrifugal pump kits

Advertisement

WARNING: This product can expose you to chemicals including Lead, which is
known to the State of California to cause cancer and birth defects or other
reproductive harm. For more information go to: www.P65Warnings.ca.gov.
All necessary pump components are included in the kit
furnished. For proper assembly follow these instructions:
1. Mount Shaft Sleeve onto motor shaft using sealant
included in Sleeve Kit. Apply sealant to complete circum-
ference of shaft to insure watertight seal.
2. Slide Water Slinger over Shaft Sleeve and locate near the
Sleeve edge closest to the motor.
3. Mount the Motor Bracket Assembly to motor using motor
bracket capscrews.
4. Press seal insert in Motor Bracket Assembly. Moisten the
inner diamter of the seal assembly with soapy water and
press seal firmly in place. Carbon seal face must be tight
against the ceramic insert. Apply small end of tapered
spring on seal.

Capscrew torque values

Capscrew torque in ft-lbs (Nm)
Capscrew
Head
type
marking
SAE grade 2
Brass or
stainless
steel
or
SAE grade 5
IMPORTANT: This pump kit is to be assembled by qualified personnel only.
1/4 in.
5/16 in.
3/8 in.
6 (8)
13 (18)
25 (34)
4 (5)
10 (14)
17 (23)
10 (14)
20 (27)
35 (47)
Close-Coupled
Centrifugal Pump Kits
Assembly Instructions
5. Make certain that the impeller has been properly cut to
size for required GPM and feet of head and balanced.
Slide impeller onto motor shaft until it bottoms against the
shaft sleeve shoulder. Install Impeller Key in slot.
Fasten the impeller using (1) capscrew, (1) internal
lockwasher and (1) large impeller washer. Tighten per
capscrew torque values table.
6. Mount the Volute Gasket and Volute to the motor bracket
assembly using the Volute Capscrews. Tighten according
to the capscrew torque table.
7. Install the seal flushing tube assembly, as applicable.
8. Install the volute pipe plugs.
9. Recheck all exposed capsrews for tightness.
10. Complete all nameplate data and affix to Volute.
11. Affix all safety instruction decals supplied with the kit.
12. Affix Installation Operation & Service Instructions to pump.
7/16 in.
1/2 in.
38 (52)
60 (81)
27 (37)
42 (57)
60 (81)
90 (122)
INSTRUCTION MANUAL
5/8 in.
3/4 in.
7/8 in.
120 (163)
190 (258)
210 (285) 300 (407)
83 (113)
130 (176)
200 (271) 300 (407)
180 (244)
325 (441)
525 (712) 800 (1085)
P86108D
