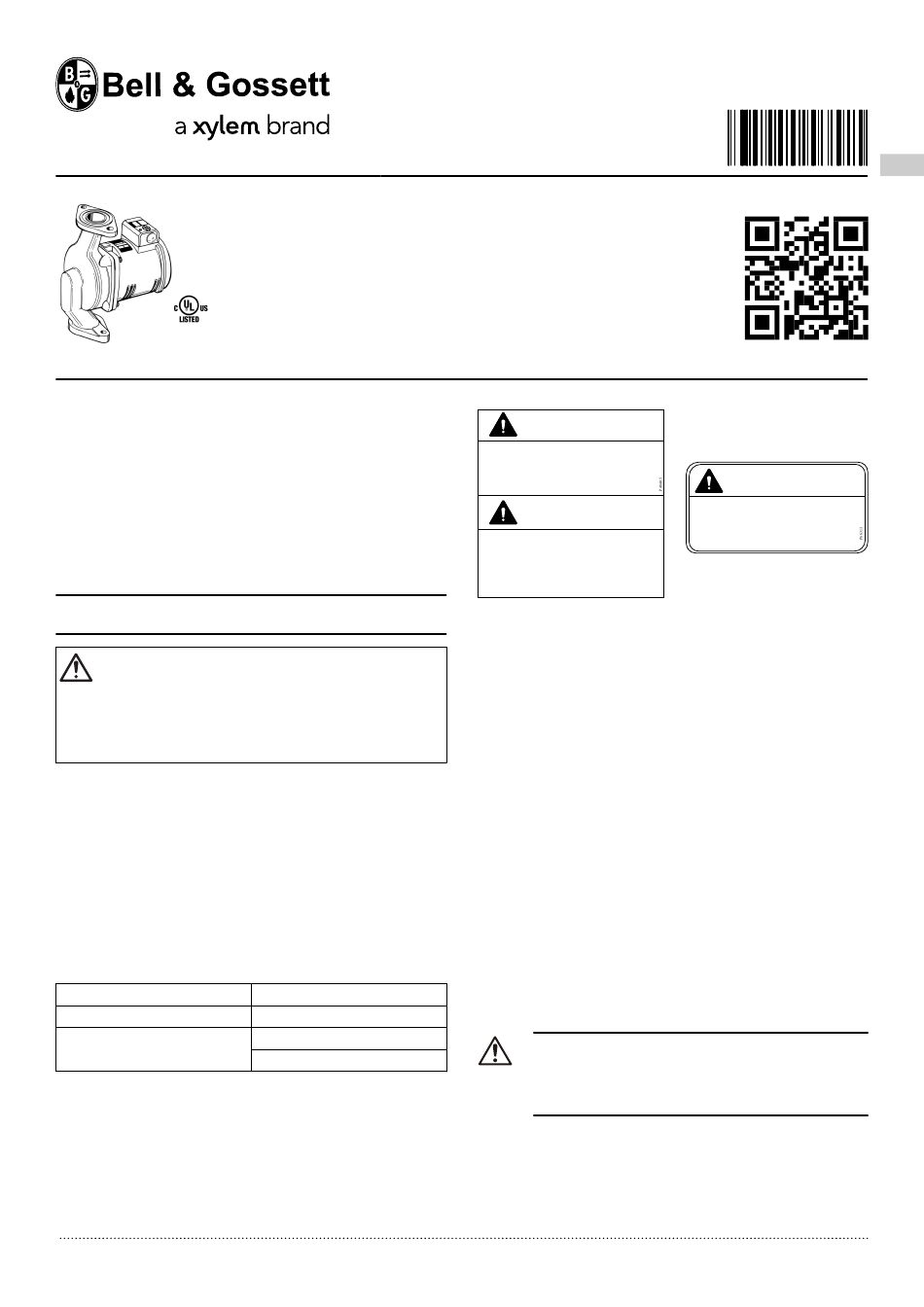

Xylem Bell and Gossett PL Series Instruction Manual

CSA C22.2 No.108
UL 778
Introduction
Note: Bell & Gossett recommends Bronze Booster Pumps be used for pumping
potable water.
This pump is nonsubmersible, for indoor use only.
TM
Your Series PL Booster Pump should have the warning/ caution label and non
submersible warning label displayed on the pump conduit box, See
page 1. If this warning and caution is missing or illegible, contact your local
Bell & Gossett Representative for a replacement.
Installer
NOTICE:
PLEASE LEAVE THIS MANUAL FOR OWNER'S USE
SAFETY INSTRUCTIONS
This safety alert symbol will be used in this manual and on the unit safety in‐
struction decals to draw attention to safety related instructions. When used, the
safety alert symbol means ATTENTION! BECOME ALERT! YOUR SAFETY IS
INVOLVED! FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN
A SAFETY HAZARD.
Description
TM

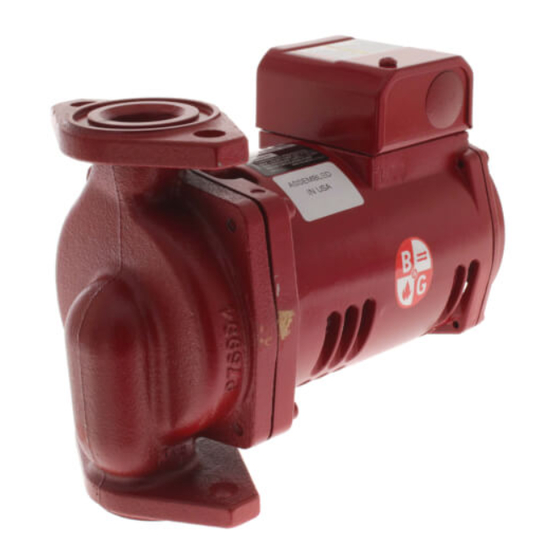

The Series PL Booster Pump features permanently lubricated bearings, non-
overloading permanent split capacitor motor with thermal protection and quiet op‐
erating construction.
Operational Limits
These pumps are designed to pump liquids compatible with their iron or bronze
body construction.
Maximum Working Pressure:
Operating Temperature:
Electrical Rating:
™
Series PL
Figure 1
150 psi (1 0 bar)
-10°C to 107°C
115V, 60 Hz, 1 PH
230V, 60 Hz, 1 PH
Booster Pumps
Do not exceed these values
WARNING
BEFORE INSTALLING, USING OR SERVICING
THIS PRODUCT, READ THE INSTRUCTIONS.
TO REDUCE RISK OF ELECTRICAL SHOCK
SEE INSTRUCTIONS FOR PROPER
INSTALLATION
CAUTION
on
FOR SUPPLY CONNECTIONS USE WIRE
SUITABLE FOR AT LEAST 90°C. USE COPPER
CONDUCTORS ONLY.
EMPLOYER DES FILS
D'ALIMENTATION ADEQUATS POUR 90°C.
FOR INDOOR USE ONLY, EMPLOYER
UNIQUEMENT A L'INTERIEUR
Figure 1: Warning label
Pump Application
TM
The Series PL Booster Pump may be used for water circulating applications in
hydronic and solar systems.
It has not been investigated, nor is it intended for use in swimming pool and ma‐
rine areas.
Glycol mixture statement
• PL pumps can be used to circulate water and glycol mixtures up to a recom‐
mended 30% concentration and 40% for snow melt applications.
• Pump performance is based on 77°F (25°C). Therefore pumping of glycol
mixtures will affect max performance, depending on mixture concentration
and temperature.
Recommended accessories
• Pump is recommended to be used with clean water systems.
• Dirt or magnetic separators are recommended if the water is high in particu‐
late matter such as iron oxide and/or mineral deposits. Clean water promotes
long pump life.
Safety Requirements
Mechanical safety
WARNING: Excessive system pressure hazard
The maximum working pressure of the pump is listed
on the nameplate. Do not exceed this pressure. Failure
to follow these instructions could result in serious per‐
sonal injury, death and/or property damage.
INSTRUCTION MANUAL
https://qr.xylemsales.com/p81884
WARNING
RISK OF ELECTRICAL SHOCK;
THIS PUMP HAS NOT BEEN INVESTIGATED
FOR USE IN SWIMMING POOL AND
MARINE AREAS.
-NONSUBMERSIBLE PUMP-
P81884_K
EN
1
