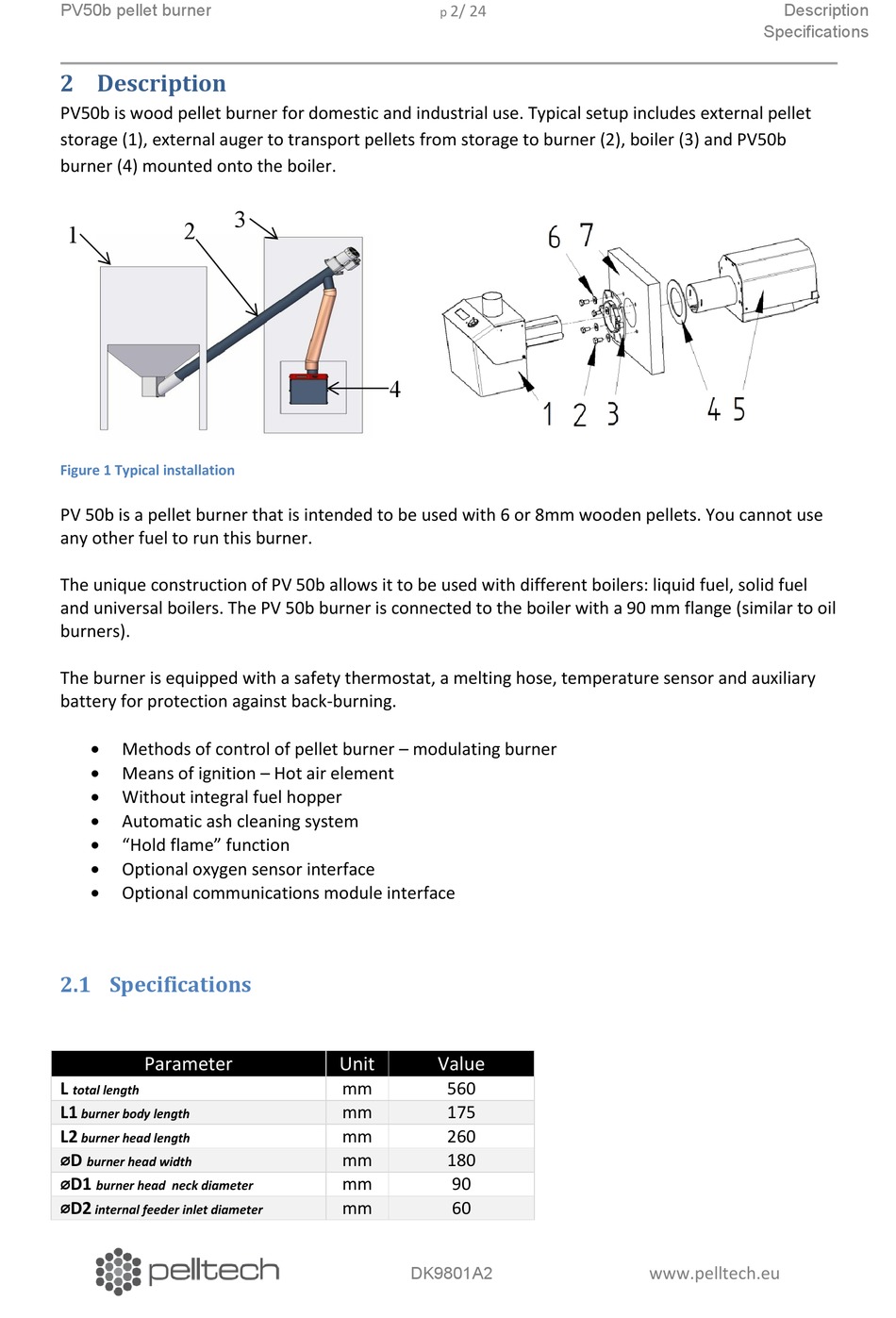

PV50b pellet burner

2 Description

PV50b is wood pellet burner for domestic and industrial use. Typical setup includes external pellet
storage (1), external auger to transport pellets from storage to burner (2), boiler (3) and PV50b
burner (4) mounted onto the boiler.
2
1
Figure 1 Typical installation
PV 50b is a pellet burner that is intended to be used with 6 or 8mm wooden pellets. You cannot use
any other fuel to run this burner.
The unique construction of PV 50b allows it to be used with different boilers: liquid fuel, solid fuel
and universal boilers. The PV 50b burner is connected to the boiler with a 90 mm flange (similar to oil
burners).
The burner is equipped with a safety thermostat, a melting hose, temperature sensor and auxiliary
battery for protection against back-burning.

Methods of control of pellet burner – modulating burner

Means of ignition – Hot air element

Without integral fuel hopper

Automatic ash cleaning system

"Hold flame" function

Optional oxygen sensor interface

Optional communications module interface

2.1 Specifications

Parameter
L
total length
L1
burner body length
L2
burner head length
⌀D
burner head width
⌀D1
burner head neck diameter
⌀D2
internal feeder inlet diameter
3
4
Unit
mm
mm
mm
mm
mm
mm
2/ 24
p
Value
560
175
260
180
90
60
DK9801A2
Description
Specifications
