3.2 Installing burner to the boiler

1
Figure 8
4
Figure 9
1
2
3
DK9801A2
9/ 24
p

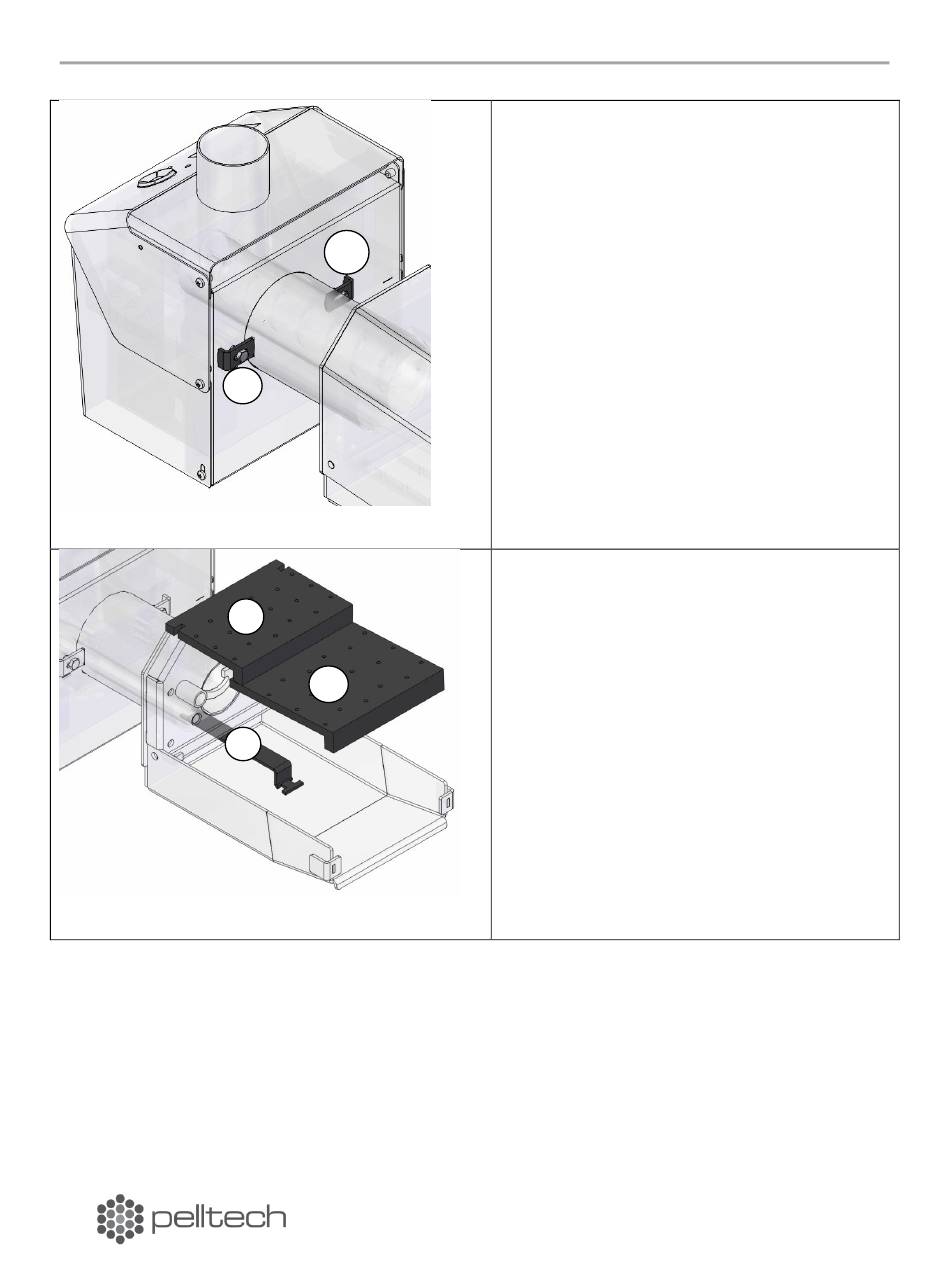

1) Remove burning chamber from the burner
body by loosening burning chamber bracket
bolts (1). There is no need to completely remove
brackets or bolts.
2) Remove upper grate (2) and then the lower
grate (3) from the burning chamber.
3) Remove burning by pulling it, while pushing
linear actuator rod (4) upwards through the
burning chamber back wall.
