PV50b pellet burner

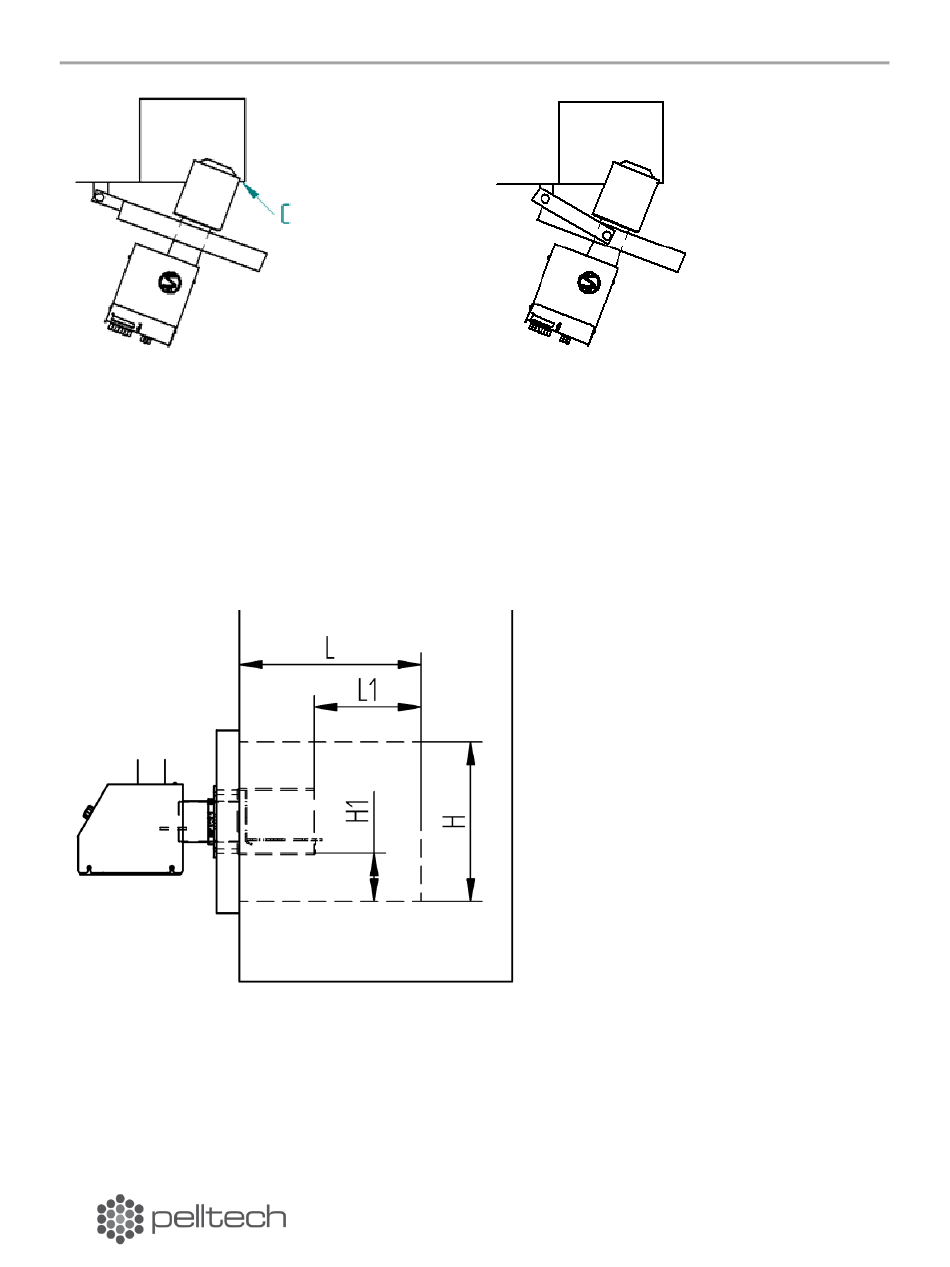

Figure 4 Hinge position and boiler opening size
considerations
Boiler firebox length L (Figure 6) should be at least 2,5 x the length of the burning chamber. For PV 50b,
minimum of 640mm is acceptable (leaving L1 approx. 380mm). The height under the burner (H1) should
be enough for about 100mm of ash.
Minimum dimensions L and H for PV 50b: L≥640mm; H≥400mm.
Figure 6 Boiler firebox requirements
Burners are mounted to door using supplied oil burner flange. Bolt hole circle diameter and bolt sizes can
be customized by using custom flanges. D1 and D2 given in Table 2 are only valid with supplied flanges.
7/ 24
p
Figure 5 Double hinges
DK9801A2
Installation
Prerequisites
