STUDIO DUE SLIMBAR FLAT/RGBW IP67 Series User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
User manual for art.1617-1710-1711-1712-1770
Manuale d'uso per art.1617-1710-1711-1712-1770

Advertisement

loading
Need help?

Need help?

Do you have a question about the SLIMBAR FLAT/RGBW IP67 Series and is the answer not in the manual?

Questions and answers

Related Manuals for STUDIO DUE SLIMBAR FLAT/RGBW IP67 Series

Summary of Contents for STUDIO DUE SLIMBAR FLAT/RGBW IP67 Series

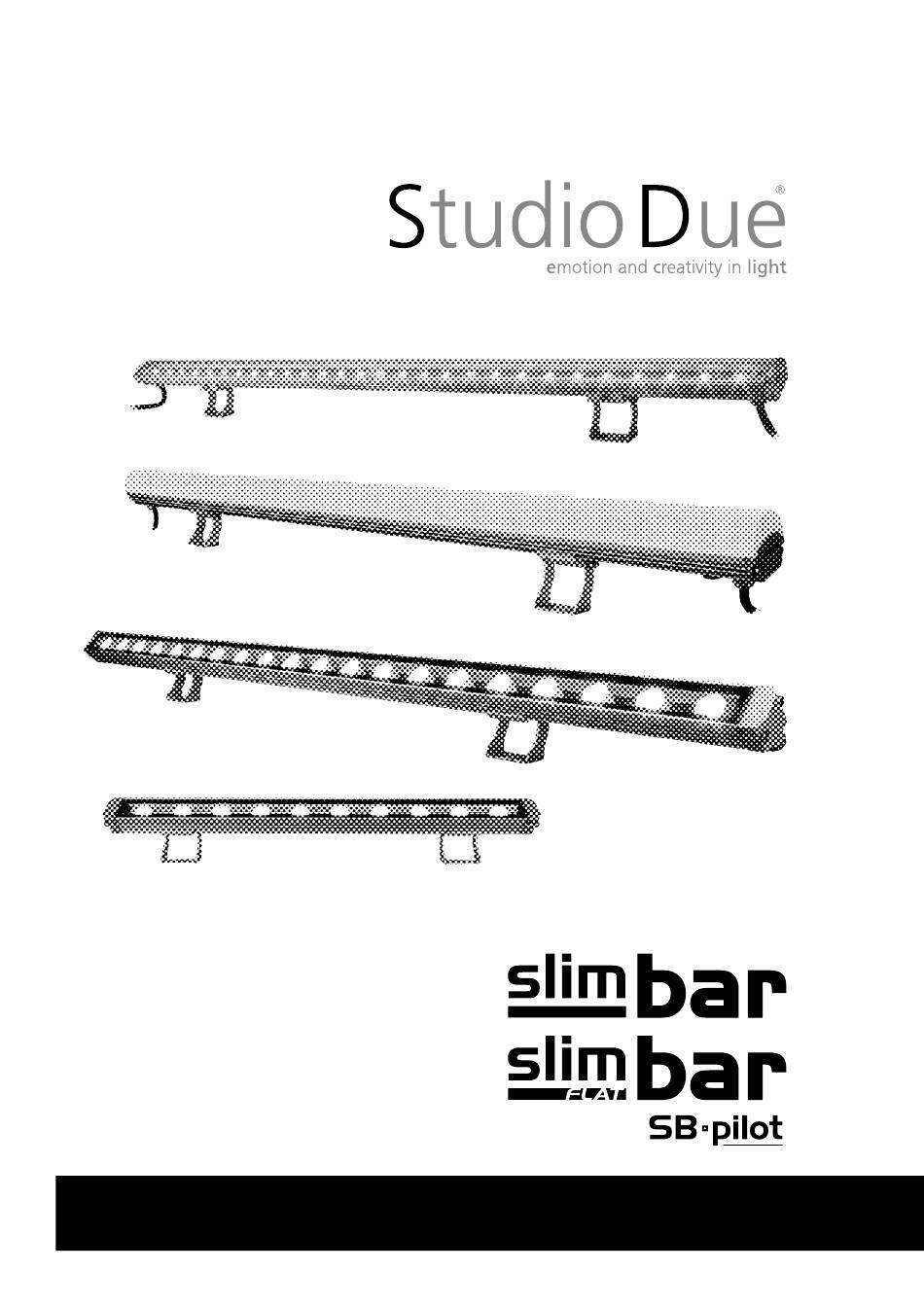

  • Page 1 User manual for art.1617-1710-1711-1712-1770 Manuale d’uso per art.1617-1710-1711-1712-1770...
  • Page 2 Art. 1770 - SLIMBAR RGBW series PHYSICAL / MISURE Progettato da Controllato da Approvato da Data Data vilfredo maria ricci - iLLdesign.it 25/07/2017 1000,00 Studio Due light Edizione Foglio TD 1615-Slimbar RGB 1 / 1 59.2 34.4 500,00 Rel.7 - 11/2018...
  • Page 3 INDEX / INDICE Page 3 - Physical / Misure Page 5 - Safety informations / Informazioni di sicurezza Page 6 - Introduction / Introduzione Page 7 - Technical features / Caratteristiche tecniche Page 8 - Control Drive Page 10 - DRS Remote Setup Page 11 - DRS functioning / Funzioni DRS Page 12 - Slimbar DRS menu list / Lista menu Slimbar DRS Page 13 - Slimbar PLUS menu list / Lista menu Slimbar PLUS...
  • Page 4 IN/OUT IP67 connectors - Connettori IP67 IN/OUT MONOCHROMATIC fixture MALE - INPUT connector +52V / WHITE +52VDC / WHITE - CH4 WHITE - CH2 input connector input connector WHITE front view rear side welding view - CH3 WHITE - CH3 WHITE FEMALE - OUTPUT connector +52V / WHITE +52VDC / WHITE...
  • Page 5 WARNING SAFETY INFORMATION (service personnel) READ ALL CAUTIONS AND WARNINGS PRIOR TO OPERATE THIS EQUIPMENT. INSTRUCTION TO PREVENT INJURY OR DAMAGE DUE TO ELECTRIC SHOCK, FIRE, MECHANICAL HAZARDS, DANGEROUS MATTERS. •PROTECTION AGAINST DANGEROUS MATTERS At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiate waste collection centre or to a dealer providing this service.

  • Page 6: Basic Kit

    • CE standard WARNING • Studio Due warranty Check that the fixture has not been damaged during transport. If it has been damaged or it does not work, address the seller. Whether the fixture has been shipped to you directly, please contact the shipping company.
  • Page 7 SLIMBAR FLAT - SLIMBAR TECHNICAL FEATURES / CARATTERISTICHE TECNICHE SLIMBAR FLAT - SLIMBAR RGBW ITEM FIXTURE 100cm [ KEY features ] 50cm [ KEY features ] LEDs RGBW 28+28+28+28 Red-Green-Blue-Cold White 14+14+14+14 Red-Green-Blue-Cold White Total light power Lumen R 460, G 950, B 260, W 1300 (CW) R 230, G 475, B 130, W 650 (CW) Optics slimbar-Flat...
  • Page 8 IMPORTANT IMPORTANTE THE EQUIPMENT IS SUPPLIED WITH A POWER-IN AND A POWER-OUT CONNECTORS WITH CABLE 40CM. LONG. DO NOT CUT THE CABLES, USE THE SUPPLIED CONNECTORS FOR EXTENSIONS. L’APPARECCHIO È FORNITO DI UN CAVO LUNGO 40CM. CON CONNETTORE POWER-IN E DI UNO POWER-OUT. NON TAGLIARE I CAVI, UTILIZZARE I CONNETTORI IN DOTAZIONE PER I PROLUNGAMENTI.
  • Page 9 DMX CONNECTION / CONNESSIONE DMX DMX TERMINAL LINE The wrong connection of the terminal line or its non-connection are probably the most frequent reasons for the defective functioning of the DMX line. The terminator is a terminal resistor fitted at the end of the cable furthest from the transmitter. The terminal resistor should have the same value as the impedance of the connection cable.

  • Page 10: Main Power

    SETUP and CONFIGURATION by DRS - DMX REMOTE SETUP SETTAGGIO e CONFIGURAZIONE tramite DRS - DMX REMOTE SETUP The DRS it’s a new concept of professional LED Lighting fixtures suitable for outdoor permanent installations. The LED Lighting fixtures can be driven via DMX through a specific electronic device, the DRS DMX Remote Setup, that grant the possibility to set up the scenarios and the games remotely.
  • Page 11 DRS (DMX Remote Setup) FUNCTIONING To make the set-up of the various fixture parameter, proceed as follow: •Disconnect the fixture to set-up from the other DMX/RDM devices • Connect the DMX cable of the fixture to the DRS commander • Switch on the DRS (push any button) commander and wait for the 8888 sign •...
  • Page 12 SLIMBAR RGB DRS MENU’ LIST ELENCO MENU’ SLIMBAR RGB DRS Switching on the fixture you can see the model and the software version. For example: All’accensione, viene visualizzato il modello di apparecchio e la versione software. Per esempio: --> Slimbar rGb --> 2_00 than it’s shown the fist menu poi viene visualizzato il primo menu Address (Addr)
  • Page 13 Per entrare nel menù ESC / UP / DOWN / ENTER --> Studio Due Slimbar --> 1_1 0 --> DMX channel --> C001 than it’s shown the first DMX channel. When you press any button it’s shown the first menu.
  • Page 14 menu Auto (AUto) > Auto mode functions / Funzioni auto mode press ENTER for submenu / premere ENTER per i sottomenu (Mode) Set the DMX/SLAVE/MASTER mode / Imposta la modalità DMX/SLAVE/MASTER > Select the value no .. sl .. pr01 .. pr02 .. with the UP/DOWN buttons. Press ENTER. >...
  • Page 15 menu Wireless (WLSS) > Wireless functions / Funzioni wireless press ENTER for submenu / premere ENTER per i sottomenu (EnAb) Enable wireless Enable or disable the wireless reception / Consente o non consente la ricezione wireless The cable reception is disabled / La ricezione via cavo viene disabilitata >...
  • Page 16 menu Service (Srvc) > Service functions / Funzioni di servizio press ENTER for submenu / premere ENTER per i sottomenu (FrMt) Restore the factory setting (Require confirmation) FM-? Ripristina le impostazioni di fabbrica (Viene chiesta conferma) FM-? > Select the value off .. on with the UP/DOWN buttons. Press ENTER. >...
  • Page 17 RGBW VERSION - SLIMBAR and SLIMBAR FLAT SLIMBAR PILOT (CONTROL DRIVE SOLUTIONS) art. SB PILOT MAX RGBW 4 channels DMX Control Drive to control up to 8mt. of RGBW SLIMBAR or RGBW SLIMBAR FLAT. Version with control panel. IP 67 protection rating. TECHNICAL FEATURES n.2x52V Constant Voltage output IP 67 rating protection...
  • Page 18 art. SB PILOT PLUS RGBW 4 channels DMX Control Drive to control up to 4mt. of RGBW SLIMBAR or RGBW SLIMBAR FLAT. Version with control panel. IP 67 protection rating. TECHNICAL FEATURES n.2x52V Constant Voltage output IP 67 rating protection N.2 out connectors (5 pin) for fast and easy wiring DISPLAY and touch pads set-up Flicker-free function...
  • Page 19 art. SB PILOT DRS RGBW 4 channels DMX Control Drive DRS to control up to 1mt. of RGBW SLIMBAR or RGBW SLIMBAR FLAT. IP 67 protection rating. TECHNICAL FEATURES (costant voltage 52V) IP 67 rating protection n.1 out connectors (5 pin) for fast and easy wiring DMX DRS setup DMX or Auto mode with Master-Slave function Halogen simulation...
  • Page 20 MONOCHROMATIC / WHITE BALANCE VERSION - SLIMBAR and SLIMBAR FLAT SLIMBAR PILOT (CONTROL DRIVE SOLUTIONS) art. SB PILOT MAX M 4 channels DMX Control Drive to control up to 16mt. of MONOCHROMATIC SLIMBAR or 8mt. of MONOCHROMATIC SLIMBAR FLAT. Version with control panel. IP 67 protection rating. art.
  • Page 21 art. SB PILOT PLUS M 4 channels DMX Control Drive to control up to 9mt. of MONOCHROMATIC SLIMBAR or 3mt. of MONOCHROMATIC SLIMBAR FLAT. Version with control panel. IP 67 protection rating. art. SB PILOT PLUS WB 2 channels DMX Control Drive to control up to 3mt. of WHITE BALANCE SLIMBAR FLAT. Version with control panel.
  • Page 22 art. SB PILOT DRS M 4 channels DMX Control Drive DRS to control up to 3mt. of MONOCHROMATIC SLIMBAR or 1mt. of MONOCHROMATIC SLIMBAR FLAT. Without control panel. IP 67 protection rating. art. SB PILOT M DALI 1 channel DALI Control Drive to control up to 3mt. of MONOCHROMATIC SLIMBAR or 1mt.

  • Page 23: Power Supply

    MONOCHROMATIC PLUG IN VERSION - SLIMBAR and SLIMBAR FLAT (POWER SUPPLY) POWER SUPPLY IP67 art. SB PS PLUG-IN 320 M Power Supply to drive up to 16mt. of MONOCHROMATIC SLIMBAR or 7mt. of MONOCHROMATIC SLIMBAR FLAT. PLUG IN version. IP 67 protection rating. Length 250mm. art.
  • Page 24 EXAMPLE OF CONNECTION DMX CONTROLLER - FIXURES DRIVER/ ESEMPIO DI COLLEGAMENTO CENTRALINA - DRIVER APPARECCHI Example 1/ Esempio 1 DMX out Last spot/ Ultimo spot SB PILOT SB PILOT driver SB PILOT driver SB PILOT driver driver Termination resistor/ Terminale di linea Example 2 / Esempio 2 DMX 1 out DMX 2 out...
  • Page 25 WARRANTY / GARANZIA Warranty CARD Company name: ..........................Mr./Mrs./Miss: ..........................Address: ............................Tel. or E-mail : ..........................Dealer: ..................... SALE CONDITIONS 1) Price quoted are not inclusive of lamp and package. Package charge is 2% on the net price for all the items, except for art. 0403 (CS4), that is 4%. These prices should be subject to possible variations for eventual rises of production costs or duties.
  • Page 26 10/2017 Dichiarazione di conformità Declaration of conformity La ditta: STUDIO DUE light s.r.l. The firm: Strada Poggino, 100 01100 VITERBO ITALY dichiara sotto la propria responsabilità che il prodotto: declare under our sole responsability that the product: code 1710 SLIMBAR FLAT / RGBW IP67 series...
  • Page 27 04/2017 Dichiarazione di conformità Declaration of conformity La ditta: STUDIO DUE light s.r.l. The firm: Strada Poggino, 100 01100 VITERBO ITALY dichiara sotto la propria responsabilità che il prodotto: declare under our sole responsability that the product: code SB PILOT-F series IP67 è...
  • Page 28 Head Office: STUDIO DUE s.r.l. (I) Str. Poggino, 100 - 01100 Viterbo (Italy) tel. +39.0761.352520 fax +39.0761.352653 info@studiodue.com STUDIO DUE (UK) 3 Encon Court Owl Close Moulton Park Industrial Estate Northampton England UK - NN3 6 HZ tel. +44.1933.650.820 info@studiodue.co.uk www.studiodue.com...

This manual is also suitable for:

Slimbar flat/wb ip67 seriesSlimbar/rgbw ip67 seriesSb pilot-f ip67 series
