Check Power and Secure Cables
•
Select the correct power setting (see Figure 8).
•
Connect the power cord.
•
Turn the power cord latch clockwise to secure
the power cord.
•
Tighten the latch with a screwdriver.
•
Route the power cord over the back of the rail,
into the rackmount cabinet side area.
•
Continue cabling (see AlphaServer DS10 Quick
Setup poster). When all cabling is complete,
connect power cord to the power controller unit.

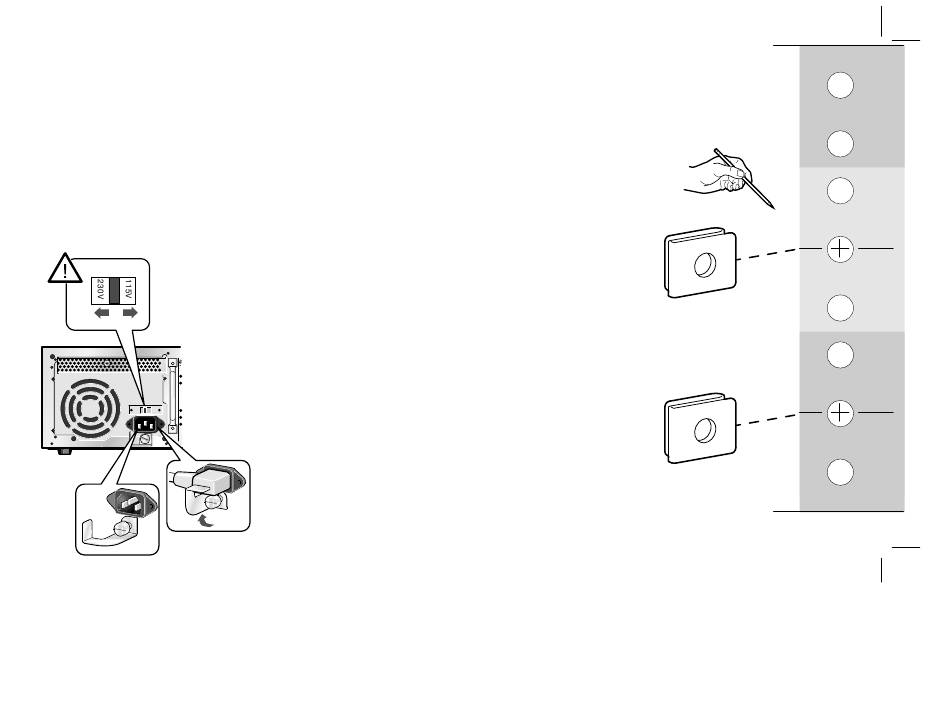

Figure 8 Securing Power
After securing the power cord with the safety latch,
route the power cords over the rails and into the side
of the cabinet.
For More Information
•
H9A10-M-Series Cabinet, Illustrated Parts
Breakdown (EK-H9A10-IP)
•
H9A15 M-Series Cabinet Illustrated Parts
Breakdown (EK-H9A15-IP)
•
Printset H9A10 M-Series Cabinet AlphaServer
Systems Rack Mount Configurations (B-IB-
H9A10-5-DBM)
•
Printset H9A15 M-Series Cabinet AlphaServer
Systems Rack Mount Configurations (B-IB-
H9A15-3-DB
PK1047-99
Top
8
7
6
5
4
3
2
1
0
PK1039-99
Figure 9 Template for Side Rails
