Device elements

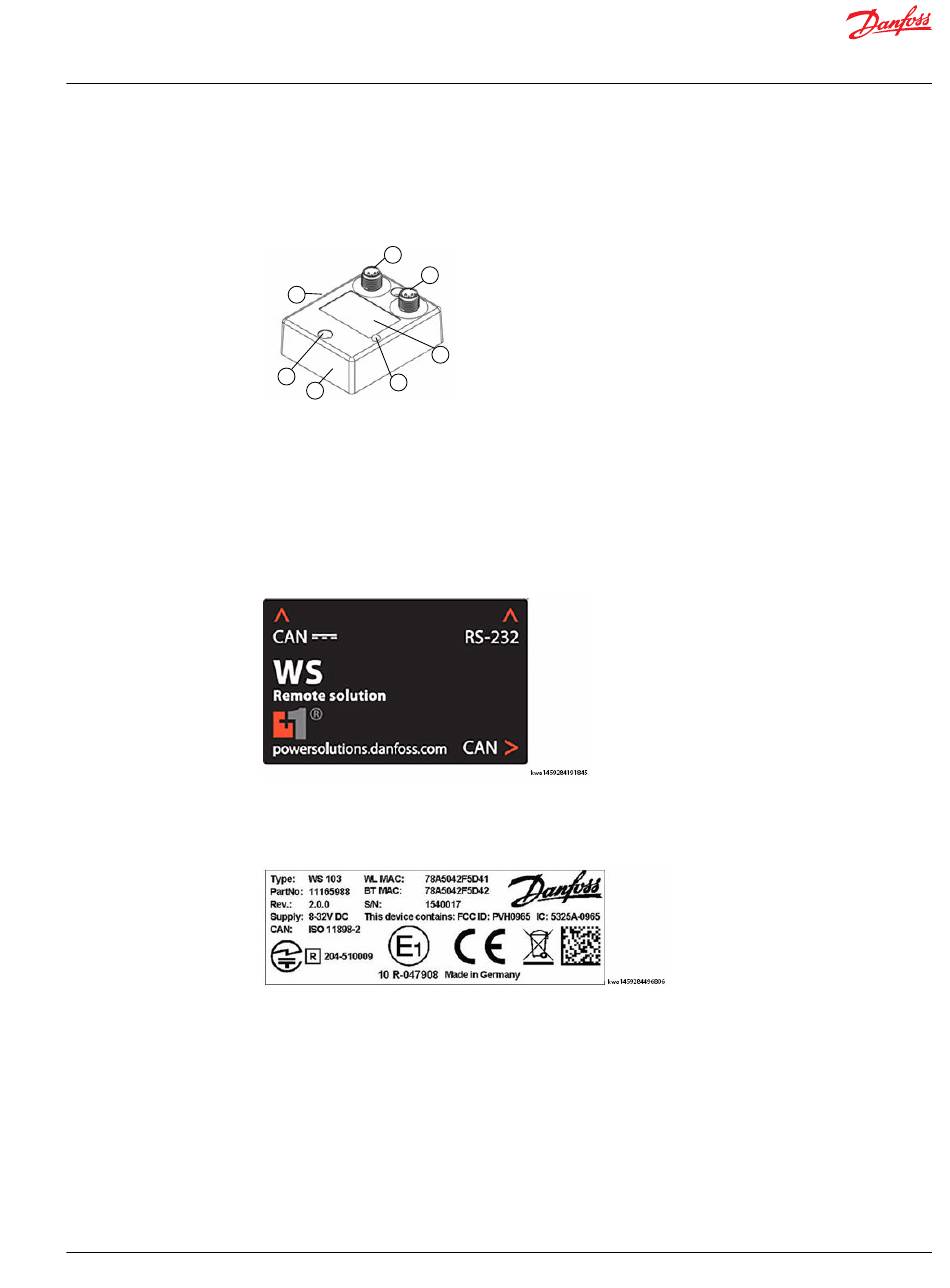

WS103 device elements

© Danfoss | April 2016
WS103 Remote Solutions device elements
4
5
3
6
2
7
1
1. Housing
2. Mounting holes
3. Name plate, loacated on the side of the housing
4. Main connector (CANbus / power supply / clamp 15)

Front label

WS103 front label

Nameplate label

WS103 nameplate label, located on the side of the housing
1. Device name and model
2. Part number
3. Hardware version
4. Serial number
5. Power supply
6. CAN specification
7. Country of origin
kwa1459357672625
5. RS-232 connector (configuration)
6. Front label
7. CAN/power/status LED
8.
9.
10. Certificates
11. ECE test (E1 ID)
12. CE marking
13. Disposal symbol
14. Traceability code in data matrix code
WLAN MAC address
Bluetooth MAC address
